2 General Power Meter Functions
48 N1913/1914A EPM Series Power Meters User’s Guide
If the selected offset unit is %, the display of the offset will be in
engineering unit only if the percentage value is less than 0.01% or more
than 999%. The format of the display in engineering unit for an offset
greater than 999% will be shown as follows,
xxx. yyyyyyyyy e+z
• There is a maximum of three numbers before the decimal point
indicated by x.
• y is optional if there are non- zero numbers after the decimal point.
For example,
• 123478202 will be displayed as 123.478202 e+6
• 10000 will be displayed as 100 e+2.
The format of the display in engineering unit for an offset less than 0.01%
will be as follows,
x. yyyyyyyyy e-z
• The first leading non- zero number, x, is placed before the decimal
point.
• y is optional if there are non- zero numbers after the decimal point.
For example,
• 0.009876 will be displayed as 9.876 e- 3
• 0.0001 will be displayed as 1e- 4.

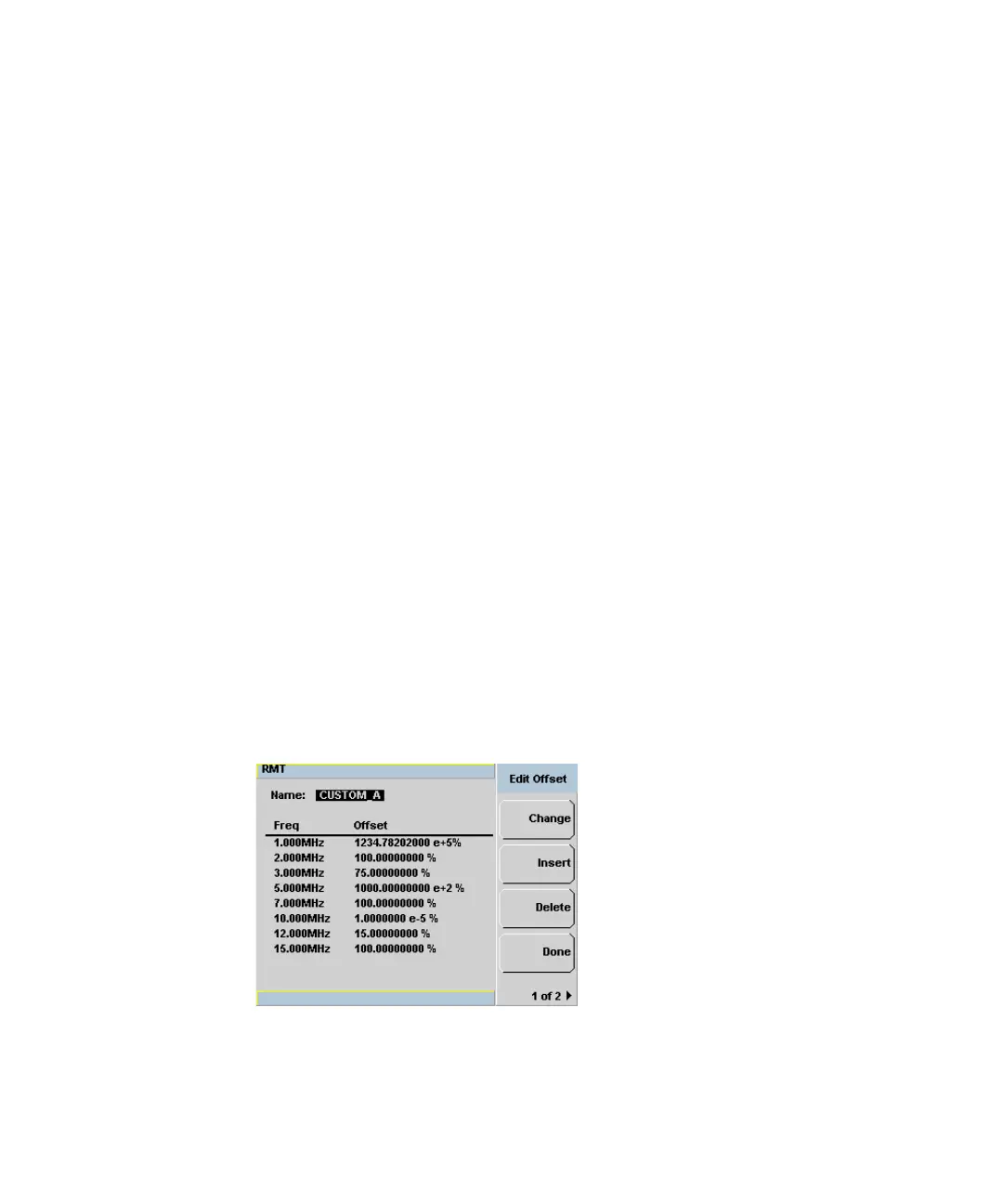

Figure 2-13 Offset display in engineering unit (when the selected unit is %)
