Setting Percentage (%) Scale Readout
This setting converts the DC current measuring display to
percentage (%) scale readout — 4–20 mA or 0–20 mA as
proportional to 0~100%. The 25% scale readout represents
DC 8 mA at 4–20 mA and DC 5 mA at 0–20 mA.

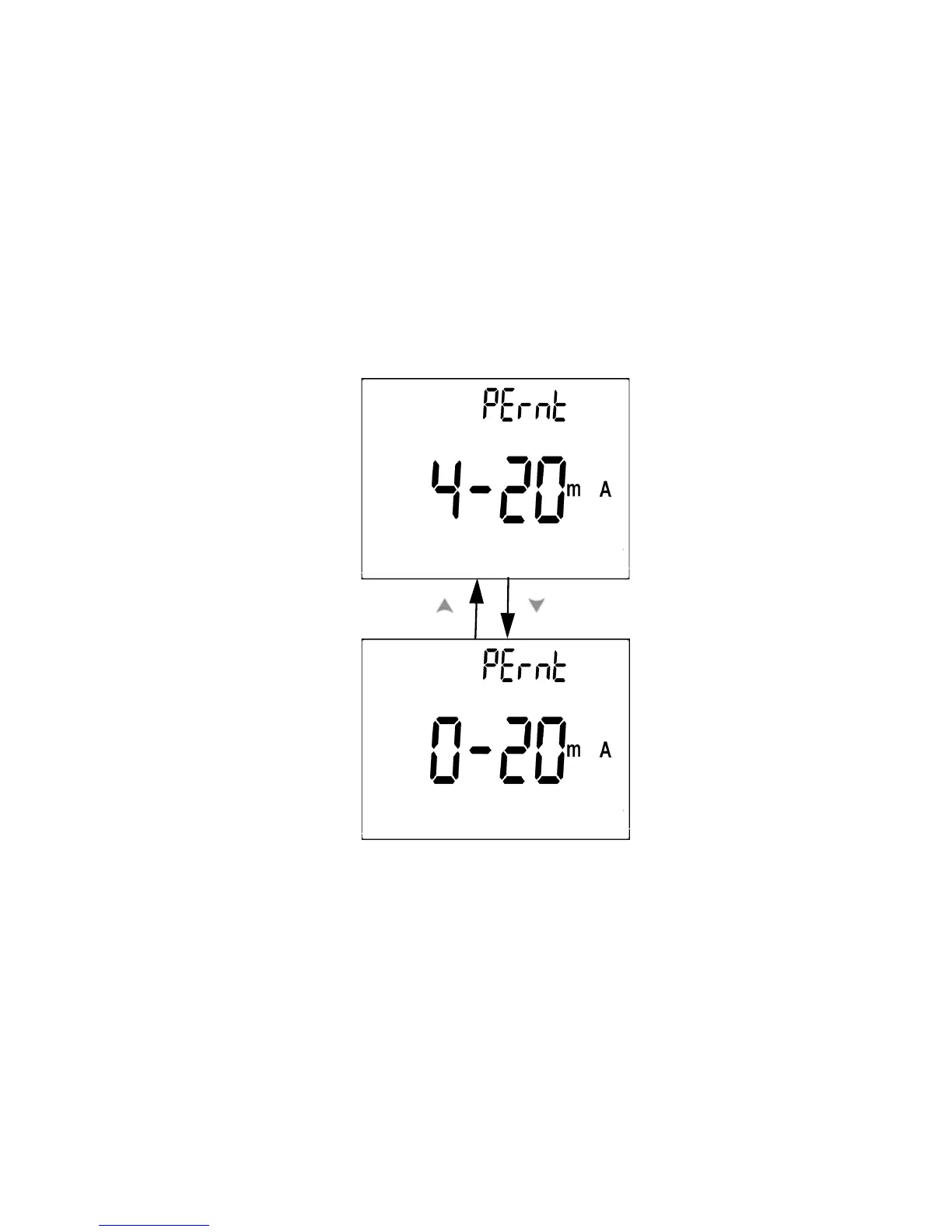

Figure 4-8 % scale readout setup
Press
