A (ampere) measurement
Set up the multimeter to measure A (ampere) as shown in
Figure 2- 5. Probe the test points and read the display.

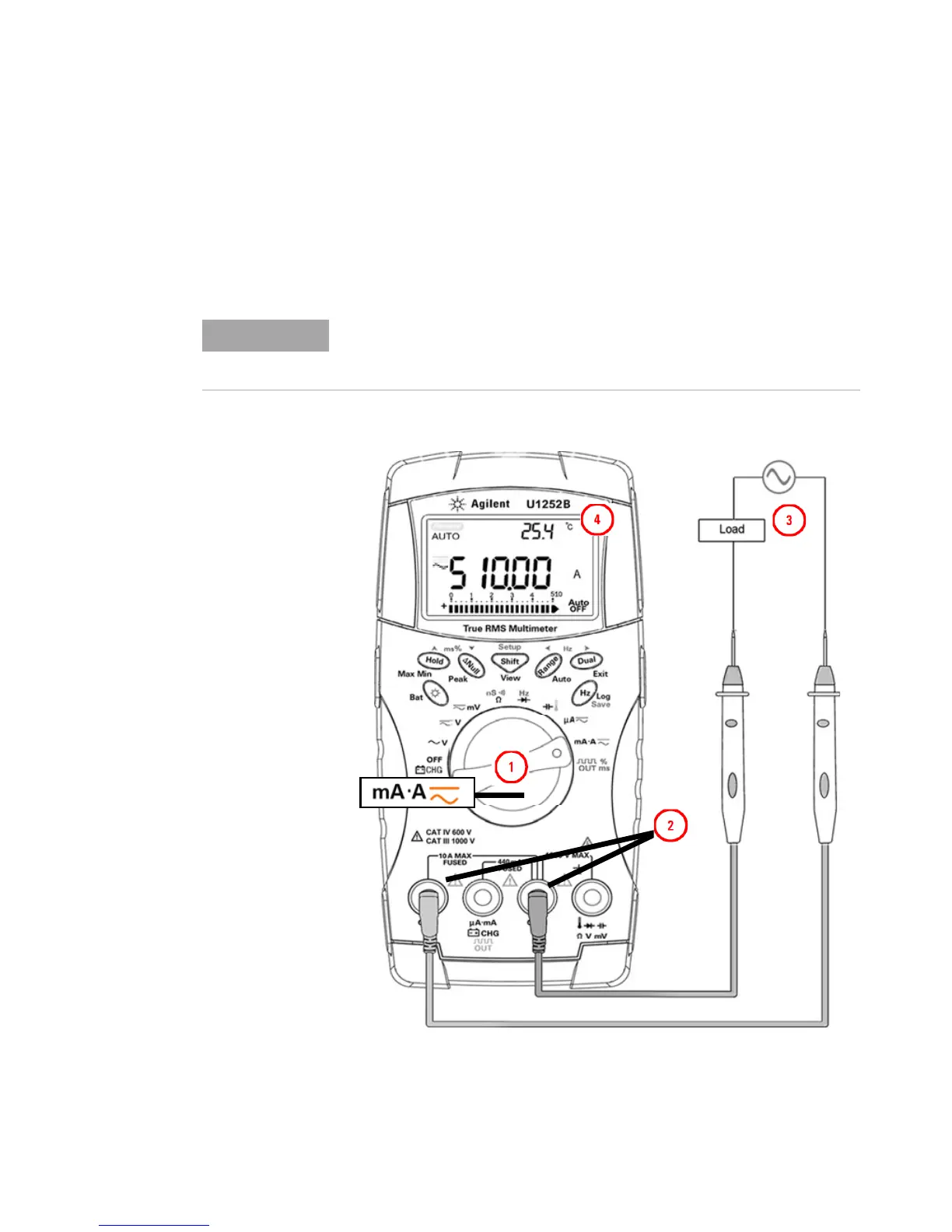

Figure 2-5 A (ampere) current measurement
Connect the red and black test leads to the 10 A input terminal A and COM
respectively. The meter is set to A measurement automatically when the
red test lead is plugged into the A terminal.
