Agilent Technologies U1252B User Manual

Making Measurements 2
Agilent U1251B/U1252B User’s and Service Guide 25
Measuring AC voltage
Set up the multimeter to measure AC voltage as shown in
Figure 2- 1. Probe the test points and read the display.

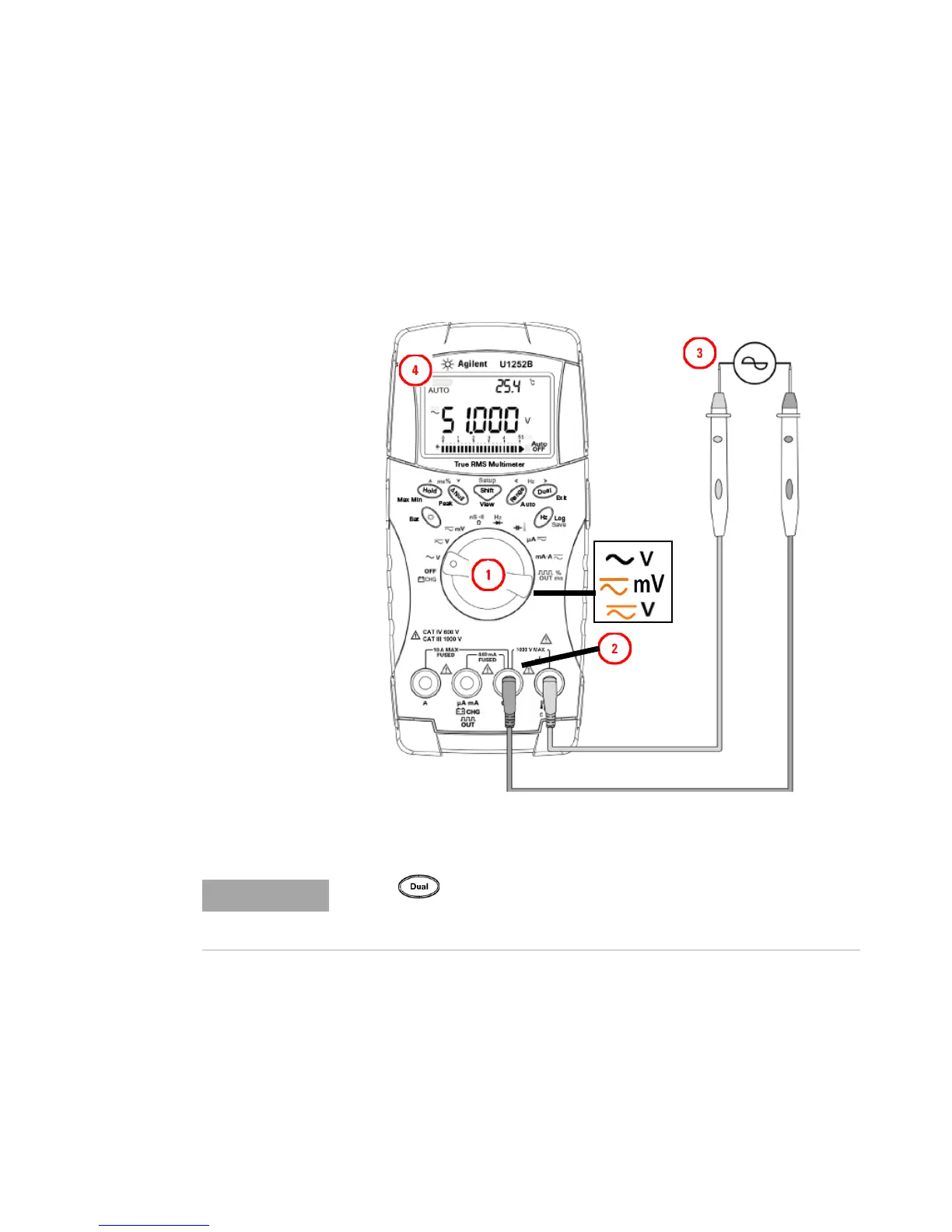

Figure 2-1 Measuring AC voltage
Red Lead
Black Lead
NOTE
Press to display frequency on the secondary display. See Ta b l e 1 - 8
of “Selecting display with the Dual button” on page 17 for a list of the
different combinations available on the secondary display.

Agilent Technologies U1252B Specifications

General

Brand	Agilent Technologies
Model	U1252B
Category	Multimeter
Language	English
