Agilent Technologies U1252B - Measuring DC voltage

26 Agilent U1251B/U1252B User’s and Service Guide
2 Making Measurements
Measuring DC voltage
Set up the multimeter to measure DC voltage as shown in
Figure 2- 2. Probe the test points and read the display.

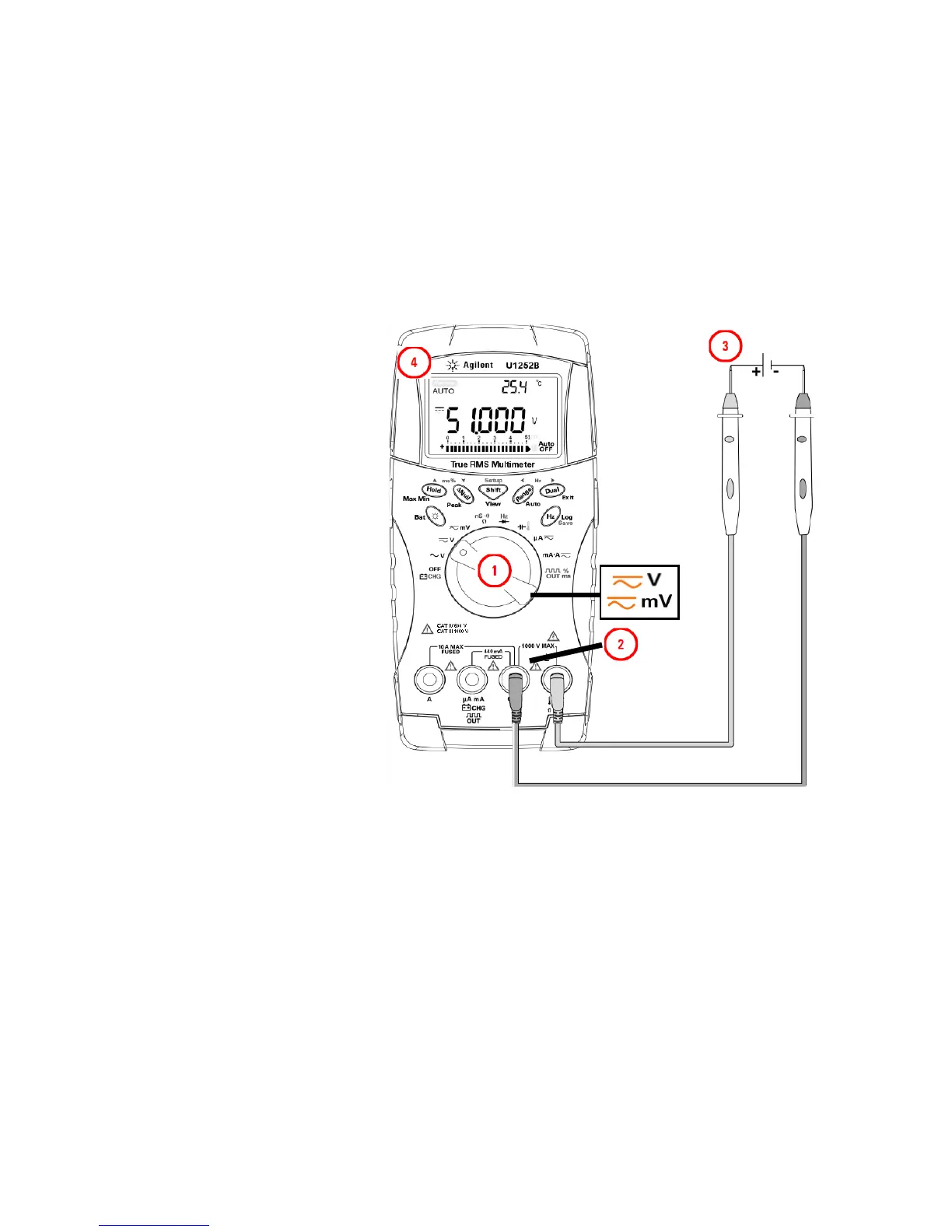

Figure 2-2 Measuring DC voltage
Red Lead
Black Lead
