The display at a glance
To view the full display (with all segments illuminated),
press and hold button while turning the rotary
switch from OFF to any non- OFF position. After you are
done viewing the full display, press any button to resume
normal functionality based on the rotary switch position.
This is followed by a wake- up feature.
The meter will then enter power save mode once auto power
off (APF) is enabled. To wake the meter up:
1 Turn the rotary switch to OFF position then ON again.
2 Press any button for rotary switch position that is not at
square wave output position. (U1252B only)
3 To set the rotary switch at square wave out position,
press only the Dual, Range and Hold buttons or turn the
rotary switch to another position. (U1252B only)
The LCD signs are explained in the following tables.

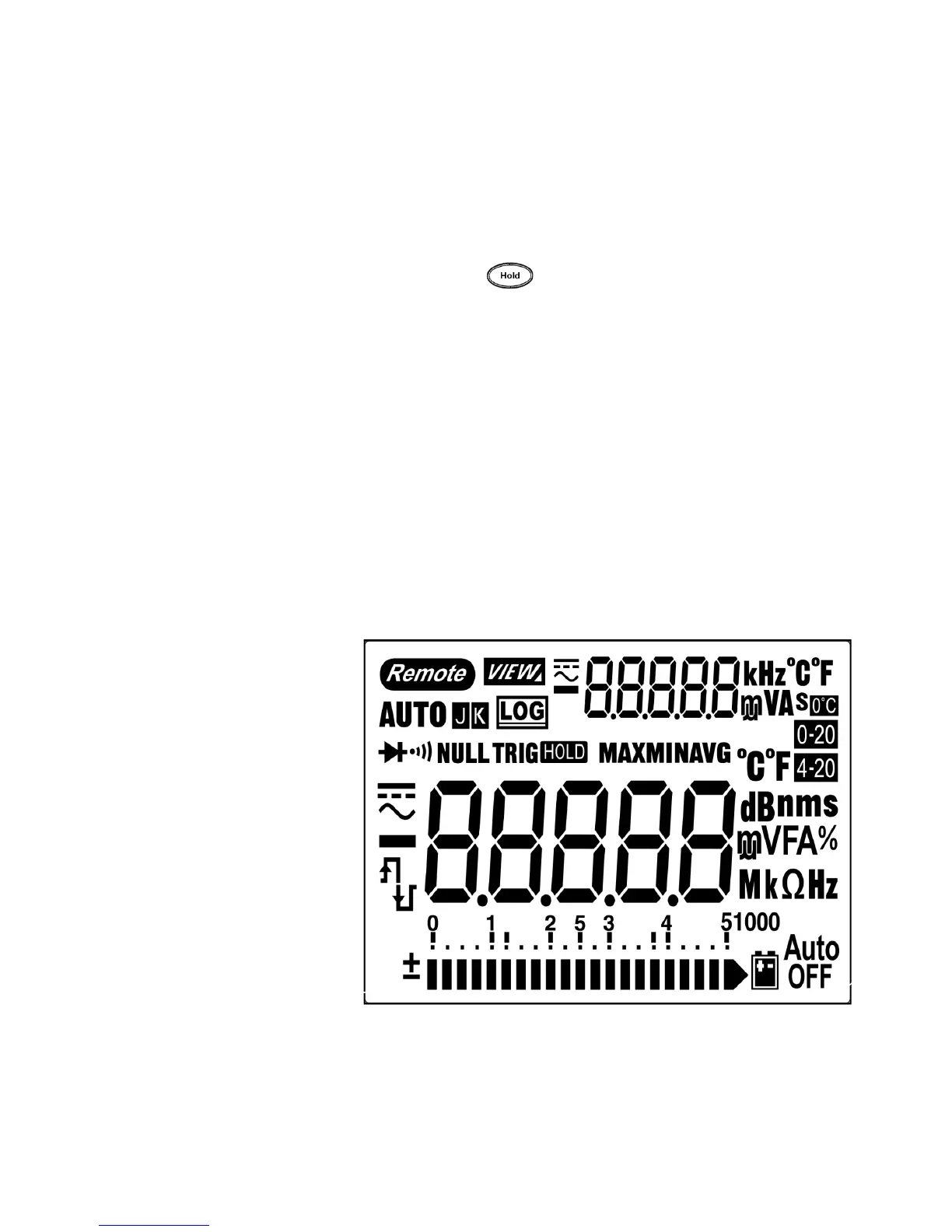

Figure 1-8 Display symbols
