44 Agilent U1251B/U1252B User’s and Service Guide
2 Making Measurements
8 For a quick measurement, use the 0 °C compensation
adapter to see the temperature variation of the
thermocouple sensor. The 0 °C compensation adapter
assists in measuring the relative temperature immediately.

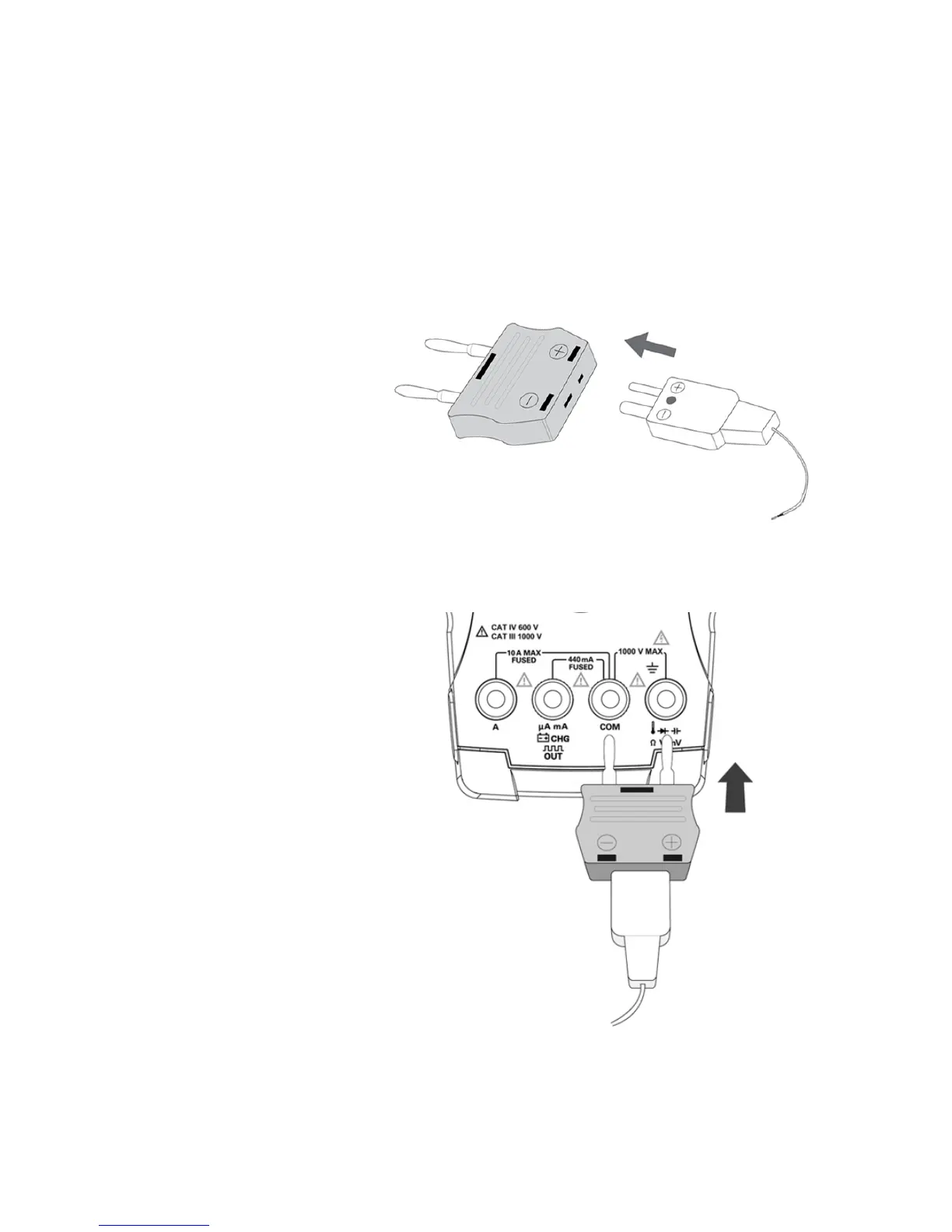

Figure 2-13 Connecting the thermal probe into the non-compensation
transfer adapater
Figure 2-14 Connecting the probe with adapter into the multimeter
