34 Agilent U1251B/U1252B User’s and Service Guide
2 Making Measurements
Measuring Resistance, Conductance and Testing Continuity
Set up the multimeter to measure resistance as shown in
Figure 2- 7. Then probe the test points (by shunting the
resistor) and read the display.

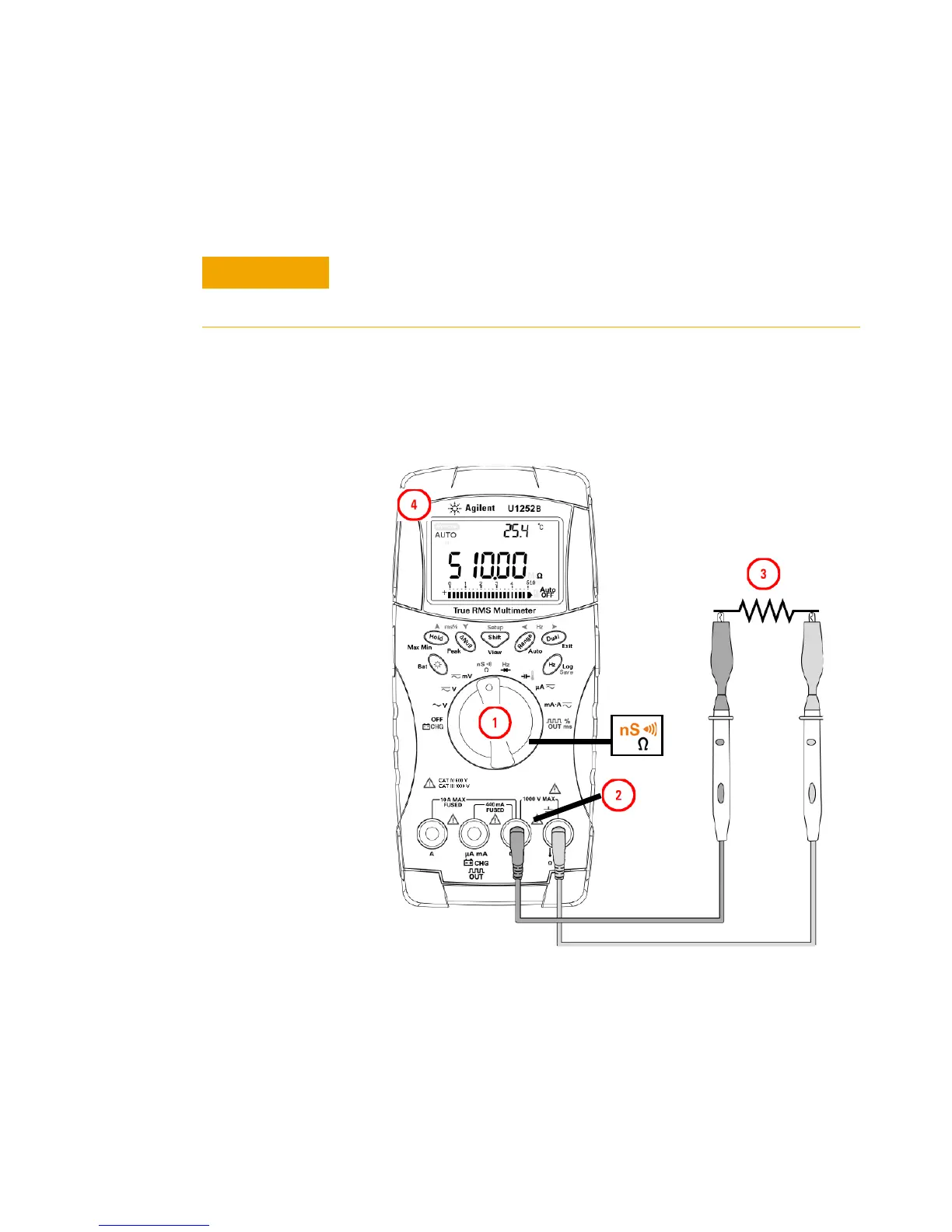

Figure 2-7 Measuring resistance
Disconnect the circuit power and discharge all high-voltage capacitors
before measuring resistance to prevent any possible damage to the
multimeter or the device under test.
