132
U1253B User’s and Service Guide
5M
a
i
n
t
e
n
a
n
c
e

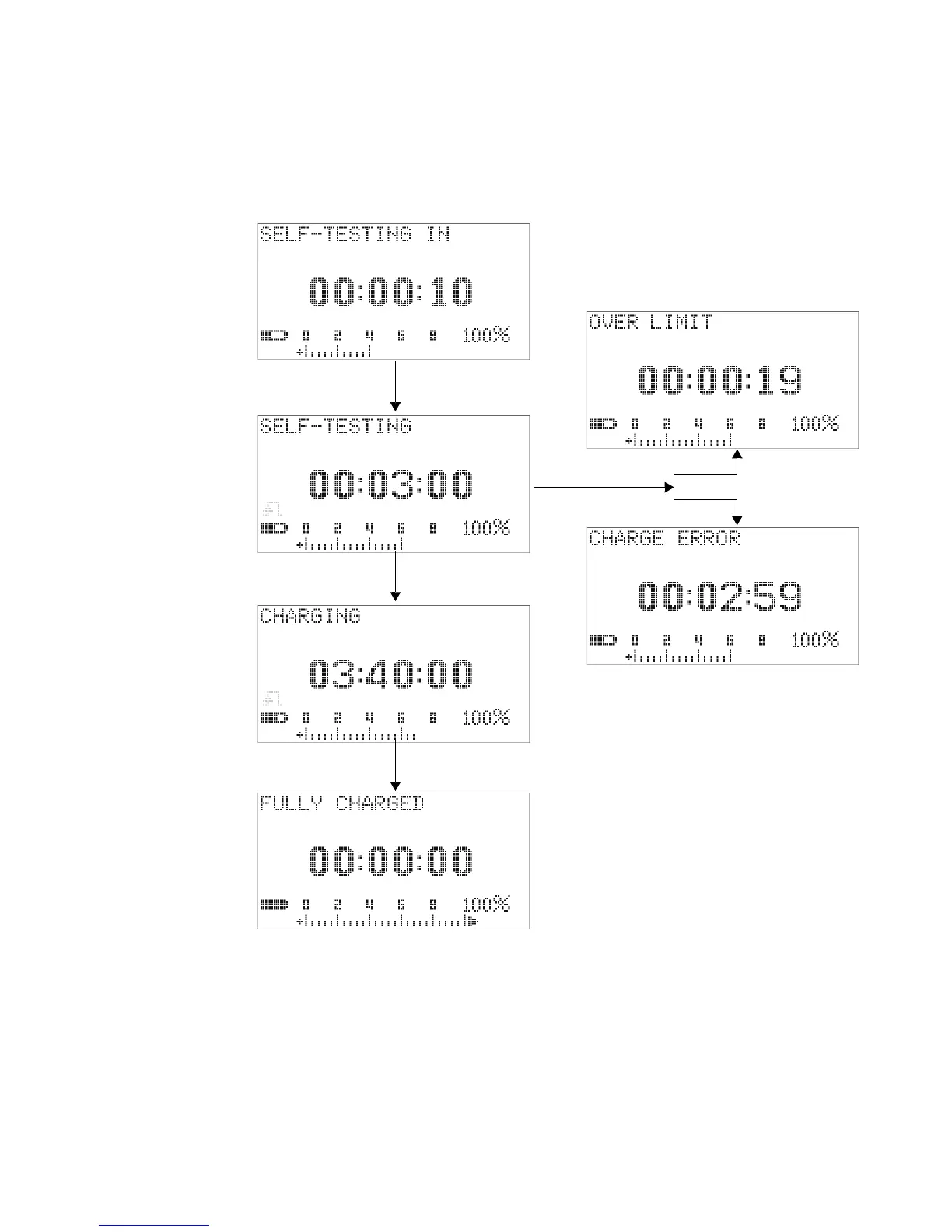

Figure 5-7
Battery charging procedures
Press Shift or
after time up
to start charging
Battery ca
n be
charged
Fully charged
or time out
ERROR
Over limit lev
el
Charge error
153
