Making Measurements 2
U1253B User’s and Service Guide 45

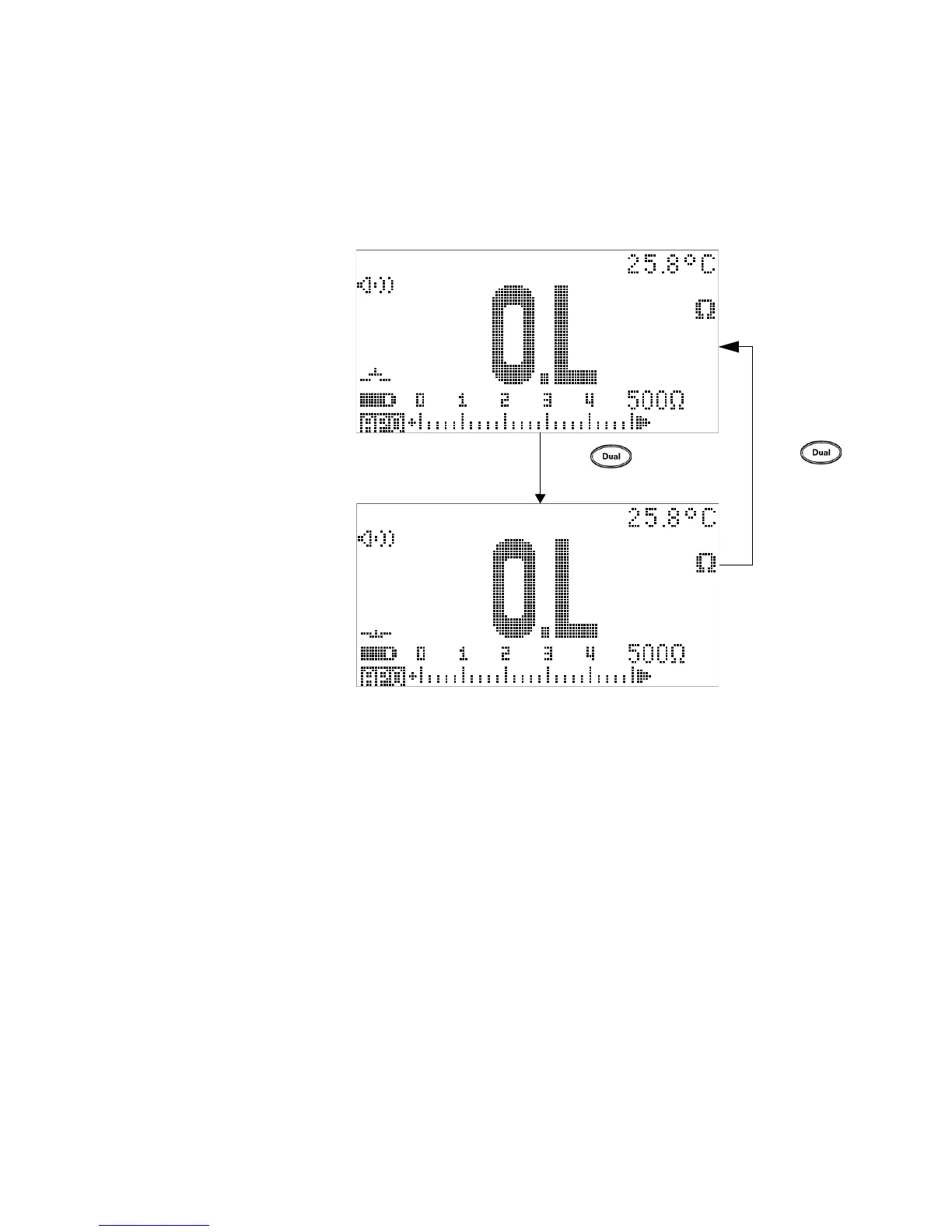

Figure 2-10 Short continuity and open continuity test
Conductance
Set up the multimeter to measure conductance as shown in
Figure 2- 11. Probe the test points and read the display.
The conductance measurement function makes it easier to
measure very high resistance of up to 100 GΩ. As
high- resistance readings are susceptible to noise, you can
capture average readings using the Dynamic Recording mode.
Refer to the section “Dynamic Recording” on page 58 for
more information.
Short continuity
Open continuity
Press
Press
