32 U1253B User’s and Service Guide
2 Making Measurements
Measuring DC voltage
Set up your multimeter to measure DC voltage as shown in
Figure 2- 2. Probe the test points and read the display.

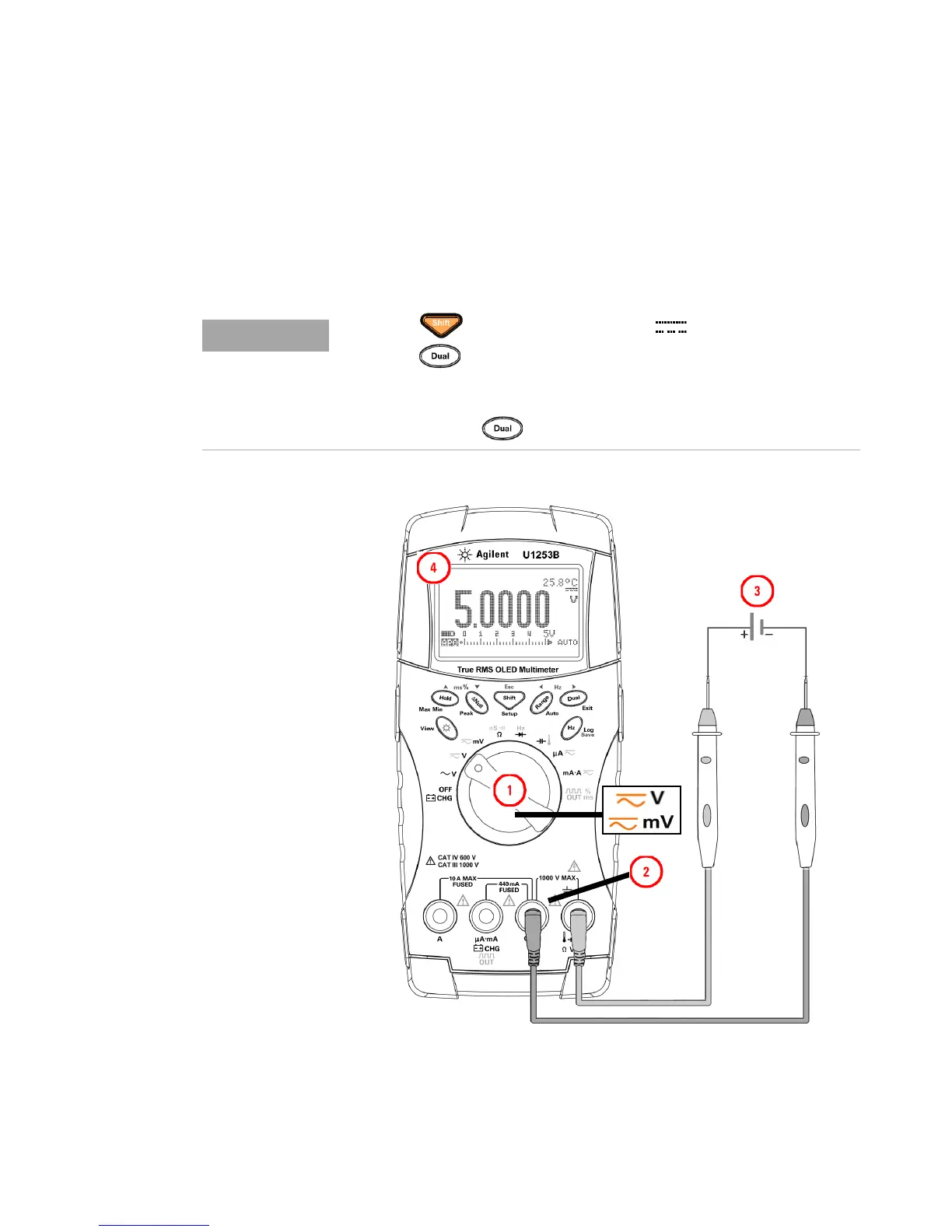

Figure 2-2 Measuring DC voltage
NOTE
• Press if necessary to ensure that is shown on the display.
• Press to display dual measurements. See Tab l e 1 - 8 of “Selecting
display with the Dual button” on page 21 for a list of dual
measurements available.
• Press and hold for more than 1 second to exit dual display mode.
Red Lead
Black Lead
