9.1 9.2 9.1 8.3/8.4 9.1 7,1 5.4
2.1/2.2/2.5/2.6/3.1/8.1/8.2 4.1 4.2 3.2 5.1/5.2/5.3 4.1 4.2 2.3/2.4/2.5/2.6/3.1
1.1/1.2/1.3
8-1
K65C/K75C/K95C

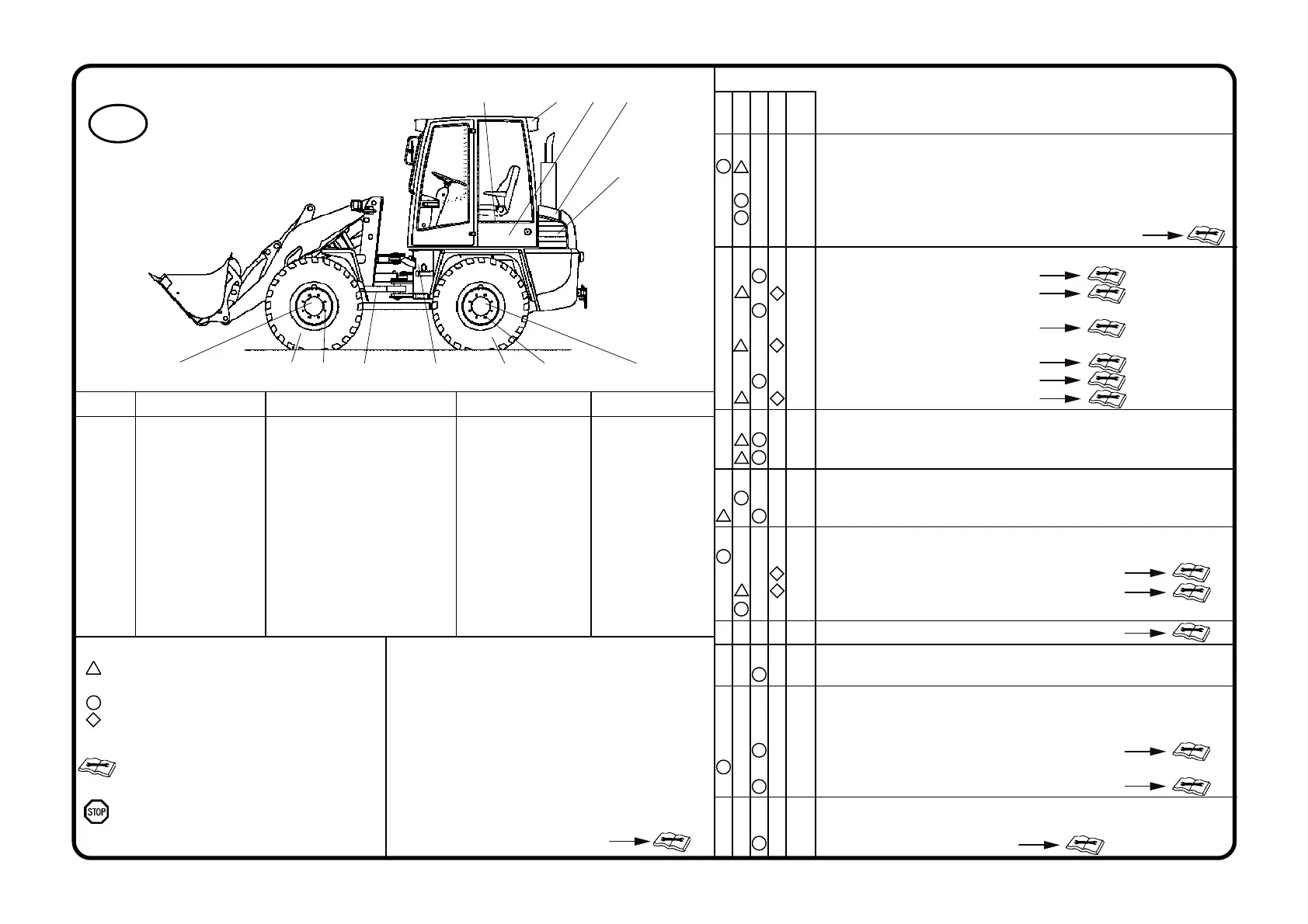

Maintenance points
1 Engine
1.1 Maintenance according to manufacturer's regulations
1.2 Dry air filter system
Activate dust removal valve
Check maintenance display
1.3
Replace filter element if maintenance display is red
2 Axles / distribution gear
2.1 Check oil level in front axle
2.2 Change oil in front axle
2.3 Check oil level in rear axle with
distribution gear
2.4 Change oil in rear axle with
distribution gear
2.5 Check oil level in planetary gear
2.6 Change oil in planetary gear
3 Axles / cardan shaft / articulated pendulum joint
3.1 Check fastening of axles (385 Nm)
3.2 Check fastening of cardan shaft (49 Nm)
4 Wheels and tires
4.1 Check air pressure
4.2 Check fastening of wheel nuts (440 Nm)
5 Hydraulic system
5.1 Oil level check (view glass)
5.2 Oil change
5.3
Replace filter inserts, observe electr. control lamp
5.4 Check and clean hydraulic oil cooler
6 Lubrication points (indicated in red)
7 Battery
7.1 Visual check
8 Brake system
8.1 Service and parking brake:
functional and visual check before starting work
8.2
Service brake: check brake lining, adjust if necessary
8.3
Service brake: visually check compensation reservoir
8.4
Parking brake: check brake lining, adjust if necessary
9 Lighting system / fresh air filter
9.1 Functional check before starting work
9.2 Check fresh air filter
*
*
*
*
*
*
*
GB
Item Designation Specification Viscosity Amount
1 Motor oil MIL-L-2104 C = API-CD acc. to manufacturer
ca. 10 l with oil lfilter
2.2 Gear oil MIL-L-2105 D = API-GL5-6-LS SAE 85 W 90-LS ca. 7.7 l
with LS additive
2.4 Gear oil MIL-L-2105 D = API-GL5-6-LS SAE 85 W 90
ca. 8.0 l (20 km/h)
with LS additive
ca. 9.5 l (30 km/h)
2.6 Gear oil MIL-L-2105 D = API-GL5-6 SAE 85 W 90 ca. 2 x 0.7 l each
5.2 Hydraulic oil DIN 51524 - HVLP 46 ISO VG 46, VI > 180 ca. 100 l
6
Multi-purpose grease
DIN 51825 - K2K as required
7 Distilled water as required
8 Brake fluid DIN 51524 - HVLP 46 ISO VG 46, VI > 180 as required
Key to symbols
First oil change, first filter replacement
or first check
Check; eliminate any determined problems
Change
The marks / the filling and checking screws
are binding
See the operating instructions
Caution
When carrying out maintenance work, heed
the accident prevention regulations!
Lubrication points (indicated in red)
Lubricate glide points as required and always
after cleaning using multi-purpose grease acc. to
DIN 51825 KSK.
Oil lubrication points
Lubricate joints and toggle levers every
50
operating hours with engine oil MIL-L-2104 C.
Optional equipment: biodegradable hydraulic oil
Ester-based synthetic hydraulic oil,
viscosity class ISO VG 46 VI > 180
10
50
500
1500
Item
Every x operating hours
max. permissible intervals or
shorter (depending on use)
4102945A
8 Maintenance Plan
