K65C/K75C/K95C
8-11
K65C/K75C/K95C
8-11

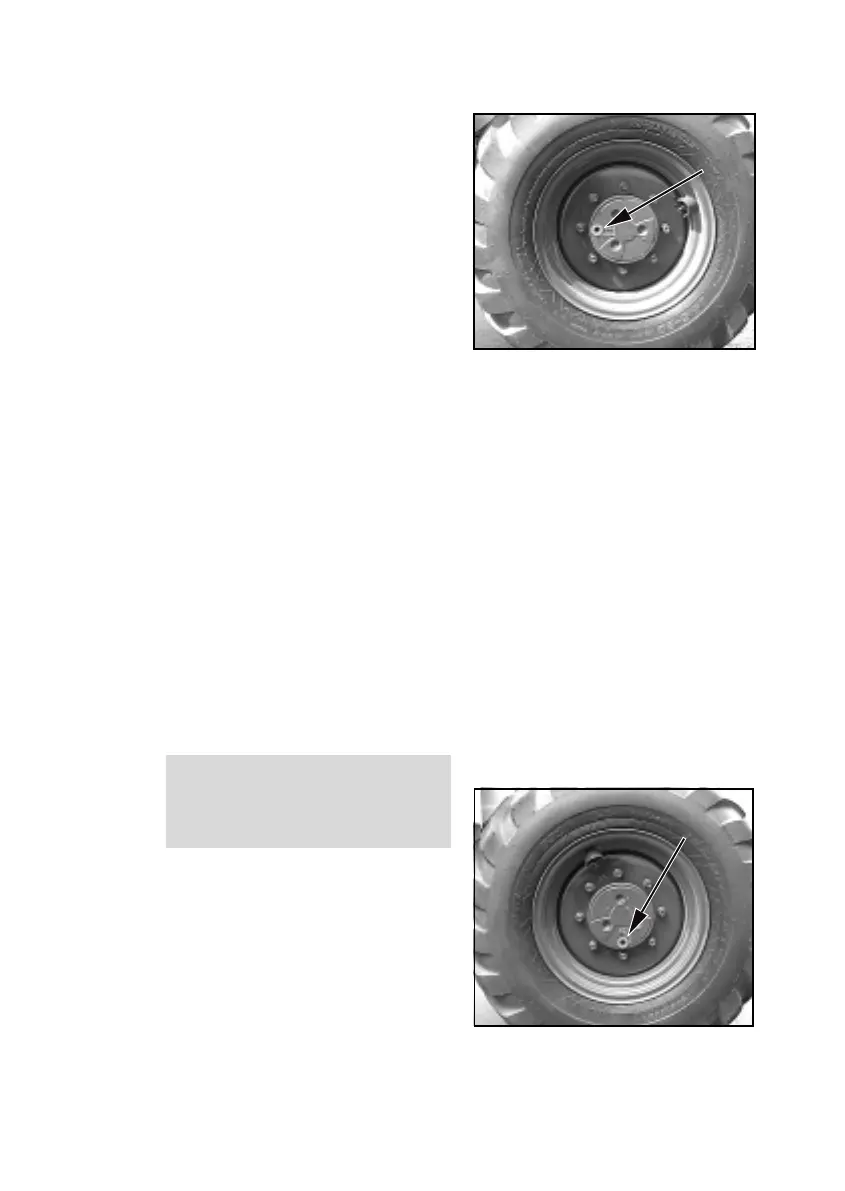

8.2.10 Checking the oil level
in the planetary gear
(1) Move the loader until the
marking line "OIL LEVEL/OEL-
STAND" is horizontal and the plug
is located to the left above this
marking line (8-19/arrow).
(2) Unscrew the plug.
NOTE
- The oil level must reach the plug
bore.
- Collect any oil that escapes.
(3) Screw in the plug with a new
gasket.
8.2.11 Changing the oil in
the planetary gear
(1) Move the loader so that the
plug (8-20/arrow) is positioned at
6 o'clock.
(2) Place an oil drain vessel with a
drain channel underneath the gear.
(3) Unscrew the drain plug and let
the oil drain out.
CAUTION
Waste oil must be disposed of in
such a way that it will not cause
pollution!
(4) Move the loader until the
marking line "OIL LEVEL/OEL-
STAND" is horizontal and the plug
is located to the left above this
marking line (8-19/arrow).
(5) Fill in oil via the plug bore until
the oil level reaches the opening.
(6) Screw in the plug with a new
gasket.
Figure 8-20
Figure 8-19
8.2.10 Checking the oil level
in the planetary gear
(1) Move the loader until the
marking line "OIL LEVEL/OEL-
STAND" is horizontal and the plug
is located to the left above this
marking line (8-19/arrow).
(2) Unscrew the plug.
NOTE
- The oil level must reach the plug
bore.
- Collect any oil that escapes.
(3) Screw in the plug with a new
gasket.
8.2.11 Changing the oil in
the planetary gear
(1) Move the loader so that the
plug (8-20/arrow) is positioned at
6 o'clock.
(2) Place an oil drain vessel with a
drain channel underneath the gear.
(3) Unscrew the drain plug and let
the oil drain out.
CAUTION
Waste oil must be disposed of in
such a way that it will not cause
pollution!
(4) Move the loader until the
marking line "OIL LEVEL/OEL-
STAND" is horizontal and the plug
is located to the left above this
marking line (8-19/arrow).
(5) Fill in oil via the plug bore until
the oil level reaches the opening.
(6) Screw in the plug with a new
gasket.
Figure 8-20
Figure 8-19
