ahlmann AL 65 - Symbols

K65C/K75C/K95C 2-3 K65C/K75C/K95C 2-3
2
1
1
2
4
3
5
2
1
1
2
4
3
5

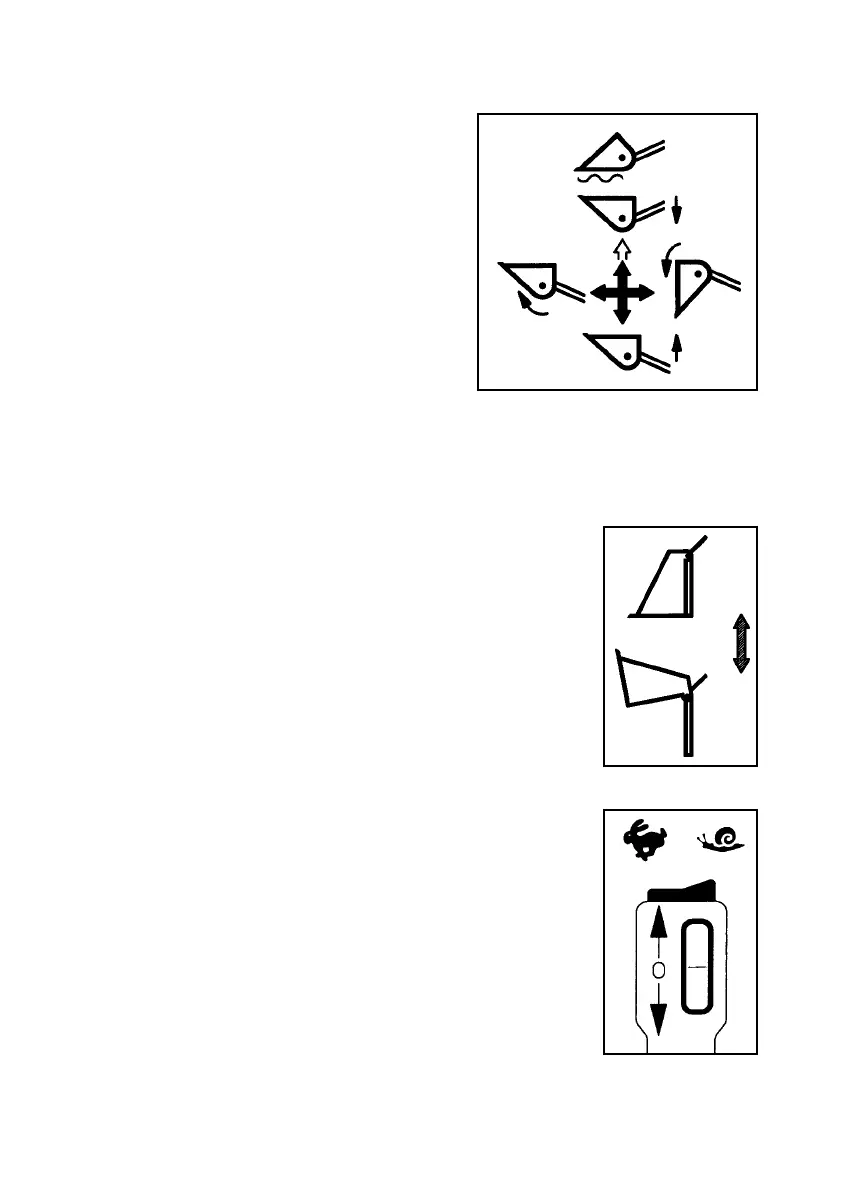

2.3 Symbols
Hand lever for working
hydraulics (4-12/5)
Bucket arm
1 - lower
2 - raise
5 - floating position
Quick-change device
3 - tilt up
4 - dump
Bucket
3 - tilt up
4 - dump
Fork-lift attachment
3 - tilt up forks
4 - tip forks
Hand lever for auxiliary
hydraulics (4-12/1)
Quick-change device
1 - lock
2 - unlock *
* only in conjunction with
push-button (4-13/14)
Multi-purpose bucket
1 - close
2 - open
Hydraulic drive stages (4-12/7)
Hare symbol - fast
Snail symbol - slow
Travel direction (4-12/6)
- forward
-0
- backward
2.3 Symbols
Hand lever for working
hydraulics (4-12/5)
Bucket arm
1 - lower
2 - raise
5 - floating position
Quick-change device
3 - tilt up
4 - dump
Bucket
3 - tilt up
4 - dump
Fork-lift attachment
3 - tilt up forks
4 - tip forks
Hand lever for auxiliary
hydraulics (4-12/1)
Quick-change device
1 - lock
2 - unlock *
* only in conjunction with
push-button (4-13/14)
Multi-purpose bucket
1 - close
2 - open
Hydraulic drive stages (4-12/7)
Hare symbol - fast
Snail symbol - slow
Travel direction (4-12/6)
- forward
-0
- backward
