2.2 Fuses
NOTE
The fuse boxes in the loader are not
labelled.

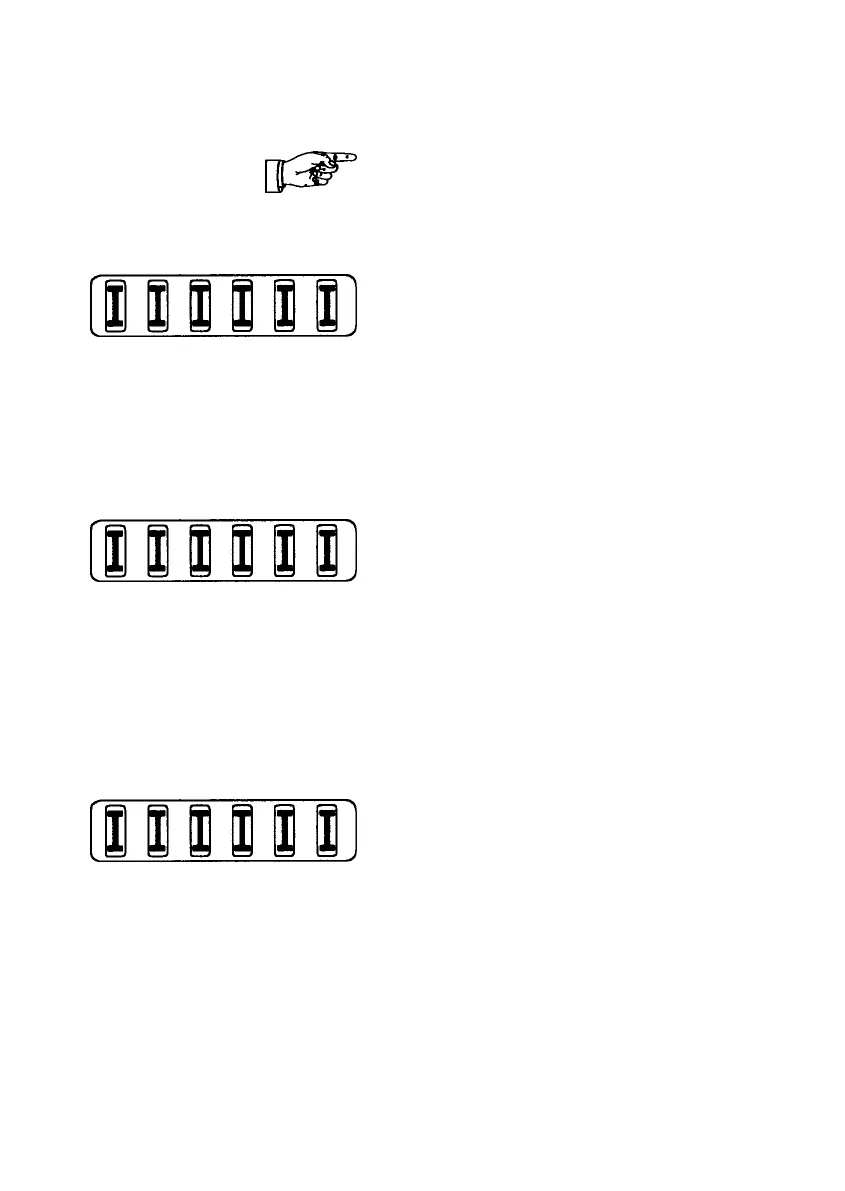

Left side » FA « (4-13/21):
1 Dimmed headlights,
right/left 15.0 A
2 High beams, right/left 15.0 A
3 Rear window heater 30.0 A
4 Turn indicator 7.5 A
5 Operating hour meter,
brake light, right/left,
fuel indicator,
indicator lamps 7.5 A
6 Not assigned
Left side » FB « (4-13/20):
1 License plate illumination (opt.),
plug socket, 7-pin,
tail light, left,
parking light, left 5.0 A
2 Tail light, right,
parking light, right 5.0 A
3 Not assigned
4 Hazard flasher 15.0 A
5 Warning beacon (opt.),
radio, interior lighting 10.0 A
6 Signal horn, dashboard
plug socket 20.0 A
Right side » FC « (4-13/17):
1 Traction drive 10.0 A
2 Release for quick-change
device, lifting device
suspension (opt.),
switch gear (opt.) 10.0 A
3 Working lights
front/rear 20.0 A
4 Heater, fan 20.0 A
5 Rear window wiper/washer,
Front window wiper/washer,
interval wiper,
interval controller 20.0 A
6 Motor stopper 5.0 A
opt. = optional equipment
123456
123456
123456
