ahlmann AL 65 - Lifting Hook

K65C/K75C/K95C 6-3 K65C/K75C/K95C 6-3
- To carry load on the fork is only
allowed closed to the ground!
CAUTION
The hydraulic quick-change device
must only be locked when an
attachment has been mounted.
NOTE
- The fork tines are locked correct-
ly when the two tiltable locking
levers fully rest on the fork carrier.
- The type plate is on the rear of the
upper fork carrier, on the right-
hand side.

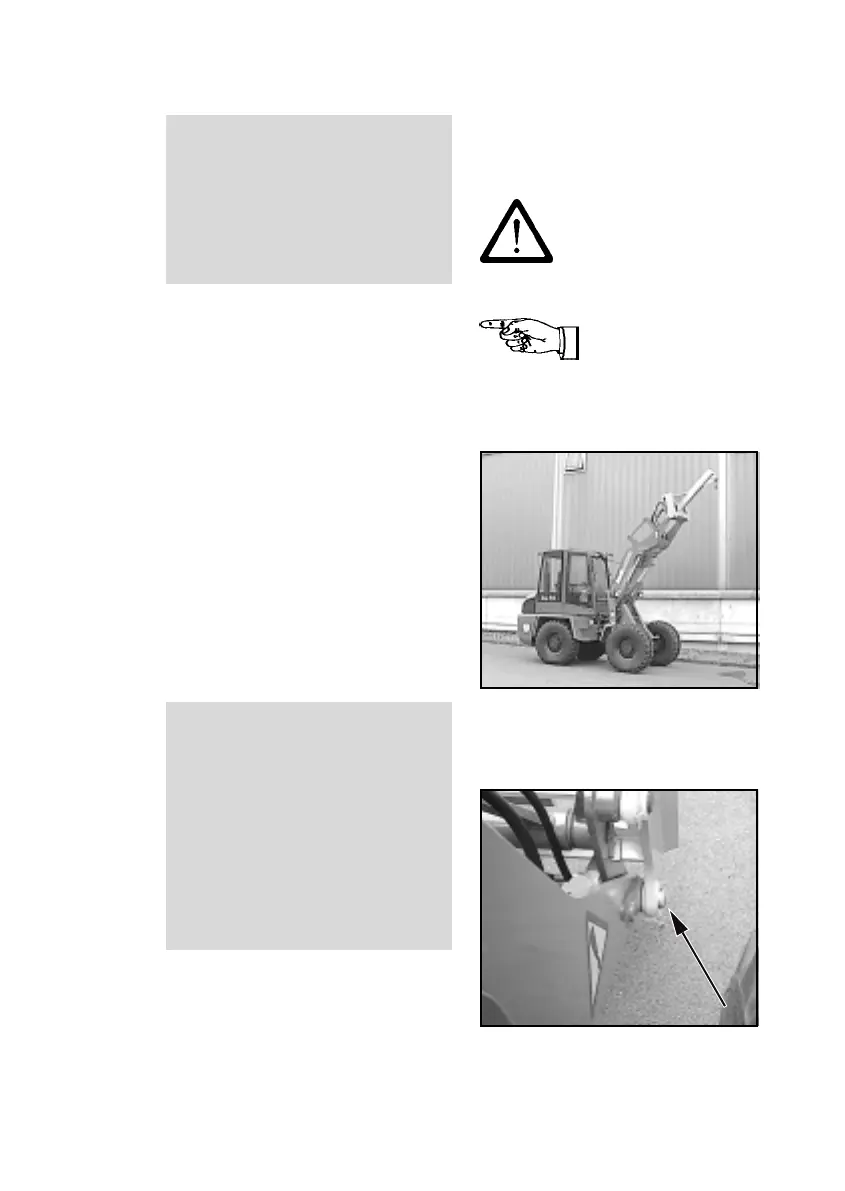

6.1.3 Lifting hook
NOTE
- Figure 6-7 shows the loader with
the lifting hook.
- Mounting and dismounting are
carried out in the same way as for
the standard/lightweight bucket
(section 6.1.1).
DANGER
- The two bolts of the quick-change
device must be in the bore holes
of the lifting hook suspension and
must be clearly visible (6-8/arrow).
- Check the safety flap of the crane
hook for proper functioning.
CAUTION
The hydraulic quick-change device
must only be locked when an
attachment has been mounted.
NOTE
The type plate is on the upper side
of the crane hook support, on the
right-hand side.
Figure 6-8
Figure 6-7
Figure 6-8
Figure 6-7
- To carry load on the fork is only
allowed closed to the ground!
CAUTION
The hydraulic quick-change device
must only be locked when an
attachment has been mounted.
NOTE
- The fork tines are locked correct-
ly when the two tiltable locking
levers fully rest on the fork carrier.
- The type plate is on the rear of the
upper fork carrier, on the right-
hand side.
6.1.3 Lifting hook
NOTE
- Figure 6-7 shows the loader with
the lifting hook.
- Mounting and dismounting are
carried out in the same way as for
the standard/lightweight bucket
(section 6.1.1).
DANGER
- The two bolts of the quick-change
device must be in the bore holes
of the lifting hook suspension and
must be clearly visible (6-8/arrow).
- Check the safety flap of the crane
hook for proper functioning.
CAUTION
The hydraulic quick-change device
must only be locked when an
attachment has been mounted.
NOTE
The type plate is on the upper side
of the crane hook support, on the
right-hand side.
