Figure 4-13

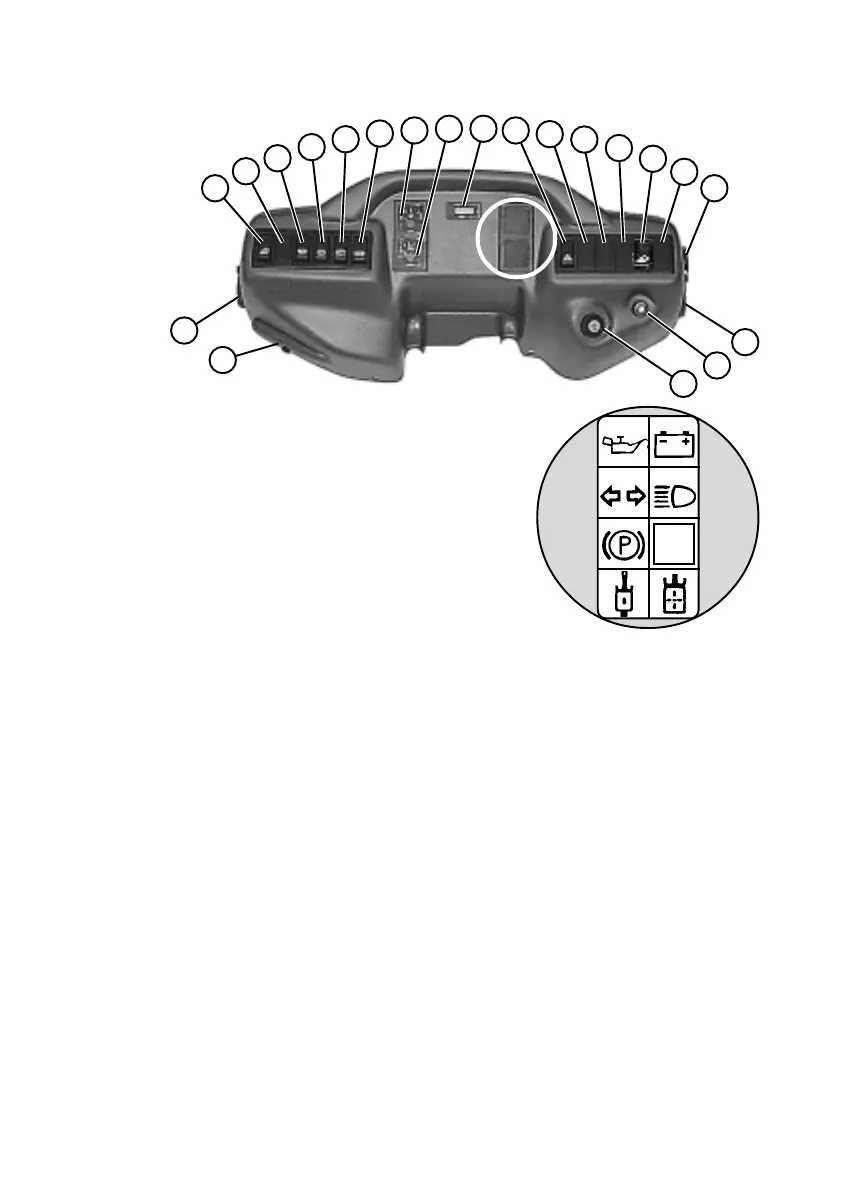

4.5 Instrument panel
1 - Toggle switch for work lights,
front and rear
2 - Pushbutton for releasing the
quick-change device
3 - Toggle switch for interval wiper, front
4 - Toggle switch for windshield
washer, front
5 - Toggle switch for windshield
wiper/washer, rear
6 - Toggle switch for rear window heater
7 - Fuel gauge
8 - Engine oil temperature display
9 - Operating hour meter
10 - Toggle switch for hazard flasher system
11 - Toggle switch for beacon light (option)
12 - Not assigned
13 - Transmission switch (only for fast loaders - 30 km/h)
UP: transmission step II; DOWN: transmission step I
14 - Not assigned
15 - Toggle switch for lifting device suspension (option)
16 - Socket
17 - Fuse box (FC)
18 - Rotary switch for heating/ventilation system
19 - Starter switch
20 - Fuse box (FB)
21 - Fuse box (FA)
22 - Control lamp for battery charging
23 - Control lamp for high beam
24 - Not assigned
25 - Hydraulic oil filter clogging indicator
26 - Control lamp for hydraulic oil temperature
27 - Control lamp for parking brake
28 - Control lamp for directional indicator
29 - Control lamp for engine oil pressure
