ahlmann AL 65 - Controls

4-10 K65C/K75C/K95C 4-10 K65C/K75C/K95C
1 2 3
2
4
5
6
7
3
4
1
2
5
3
1
1 2 3
2
4
5
6
7
3
4
1
2
5
3
1

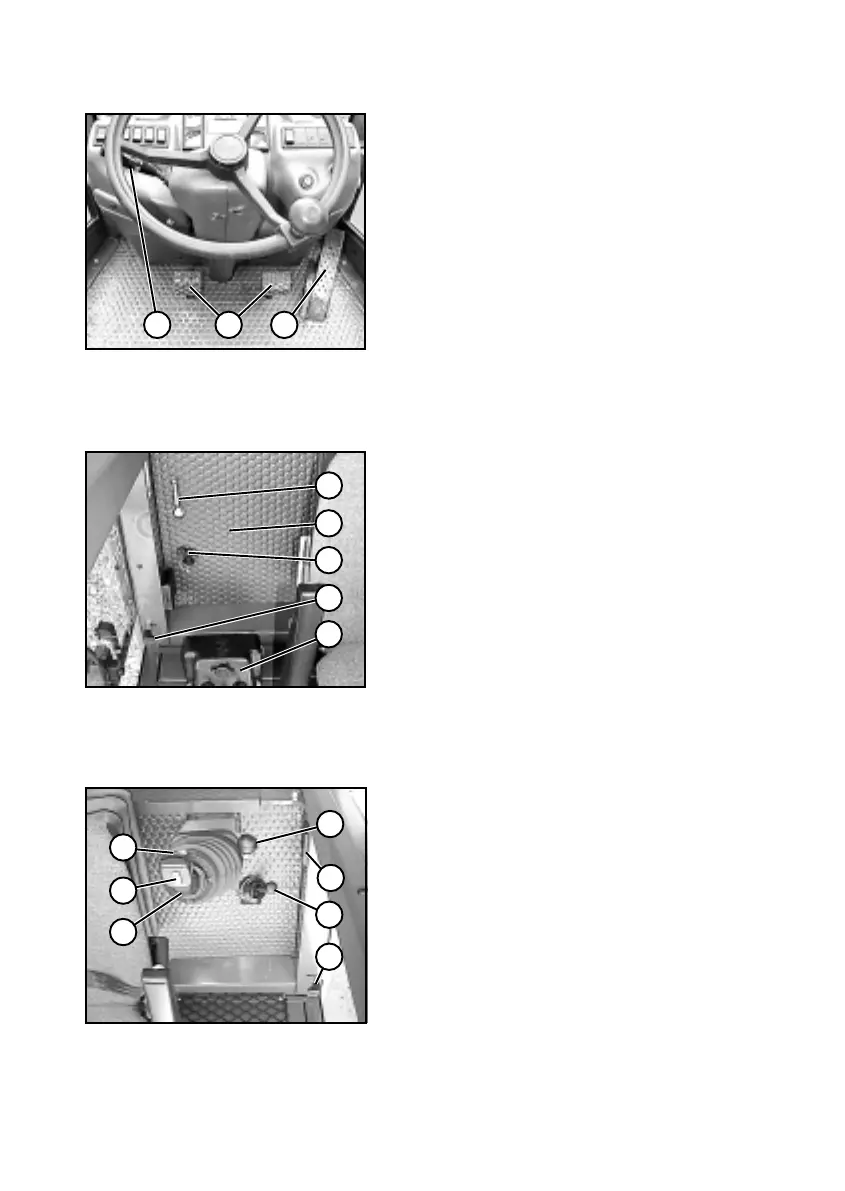

4.4 Controls
1 - Multi-function switch
- Fwd.: turn indicator, right
- Bwd.: turn indicator, left
- Turned clockwise:
Step 1 - parking light
Step 2 - driving light
- Up - flash beam
- Down - high beam
- Pushbutton - signal horn
2 - Double pedal for
service brake/inching
3 - Accelerator pedal
To the left of the
operator's seat:
1 - Ball block valve for heater
2 - Maintenance flap (battery)
3 - Battery main switch
4 - Door release
5 - Water tank
for windshield washer system
To the right of the
operator's seat:
1 - Pilot valve
for auxiliary hydraulics
2 - Ash tray
3 - Hand lever for
parking brake
4 - Door release
5 - Pilot valve for working
hydraulics
6 - Drive switch:
forward/0/reverse
7 - Hydraulic driving steps:
- right - speed I: slow
- left - speed II: fast
Figure 4-11
Figure 4-12
Figure 4-10
4.4 Controls
1 - Multi-function switch
- Fwd.: turn indicator, right
- Bwd.: turn indicator, left
- Turned clockwise:
Step 1 - parking light
Step 2 - driving light
- Up - flash beam
- Down - high beam
- Pushbutton - signal horn
2 - Double pedal for
service brake/inching
3 - Accelerator pedal
To the left of the
operator's seat:
1 - Ball block valve for heater
2 - Maintenance flap (battery)
3 - Battery main switch
4 - Door release
5 - Water tank
for windshield washer system
To the right of the
operator's seat:
1 - Pilot valve
for auxiliary hydraulics
2 - Ash tray
3 - Hand lever for
parking brake
4 - Door release
5 - Pilot valve for working
hydraulics
6 - Drive switch:
forward/0/reverse
7 - Hydraulic driving steps:
- right - speed I: slow
- left - speed II: fast
Figure 4-11
Figure 4-12
Figure 4-10
