6 Attachments
6.1 Mounting and dis-
mounting attachments with-
out hydraulic connections
6.1.1 Standard/lightweight
bucket
Mounting
(1) Bring the bucket to its lowest
position and tip the quick-change
device.
(2) Drive the loader up to the
bucket (6-1).
(3) Pick up the bucket using the
quick-change device and, by
simultaneously tilting the quick-
change device, raise the bucket
until the quick-change device is next
to it (6-2).
(4) Lock the bucket by using the
hand lever for the auxiliary
hydraulics (4-12/1).
(5) Check the suspension and the
lock on both sides.
DANGER
The two bolts of the quick-change
device must be in the bore holes of
the bucket suspension and must
be clearly visible (6-3/arrow).

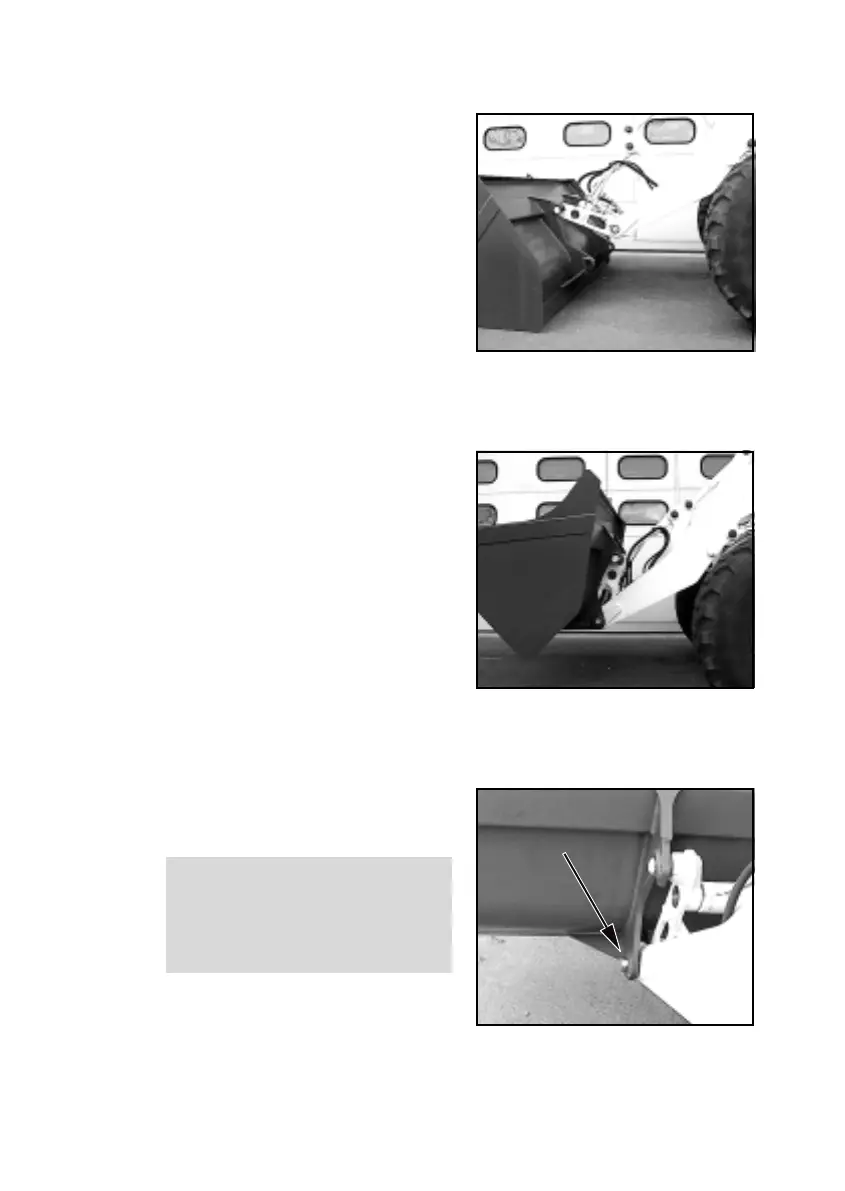

Figure 6-2
Figure 6-3
Figure 6-1
