(4) Fill oil into the plug bore of the
intermediate gear (8-14/1) until the
oil level reaches the opening.
NOTE
- Details regarding the amount of
oil required are given in the
maintenance plan (page 8-1).
- After a few minutes, when the oil
level has lowered, top up the oil
until the oil level reaches the
marked level and remains stable.
(5) Screw in the plug of the
intermediate gear (8-14/1) again.
(6) Fill oil into the plug bore of the
axle arch (8-13/1) until the oil level
reaches the opening.
NOTE
- Details regarding the amount of
oil required are given in the
maintenance plan (page 8-1).
- After a few minutes, when the oil
level has lowered, top up the oil
until the oil level reaches the
marked level and remains stable.
- The vent valve of the axle (8-15/
arrow) must be free from dirt.
(7) Screw in the plug of the axle
arch (8-13/1) again.
8.2.9.2Rear axle of the fast
loader » 30 km/h «
(1) Place a sufficiently large oil
drain pan underneath the axle.
(2) Unscrew the plugs from the axle
arch (8-16/1 and 8-16/2) and the
distribution gear (8-17/1 and 8-17/2)
and drain the oil.
CAUTION
Waste oil must be disposed of in
such a way that it will not cause
pollution!

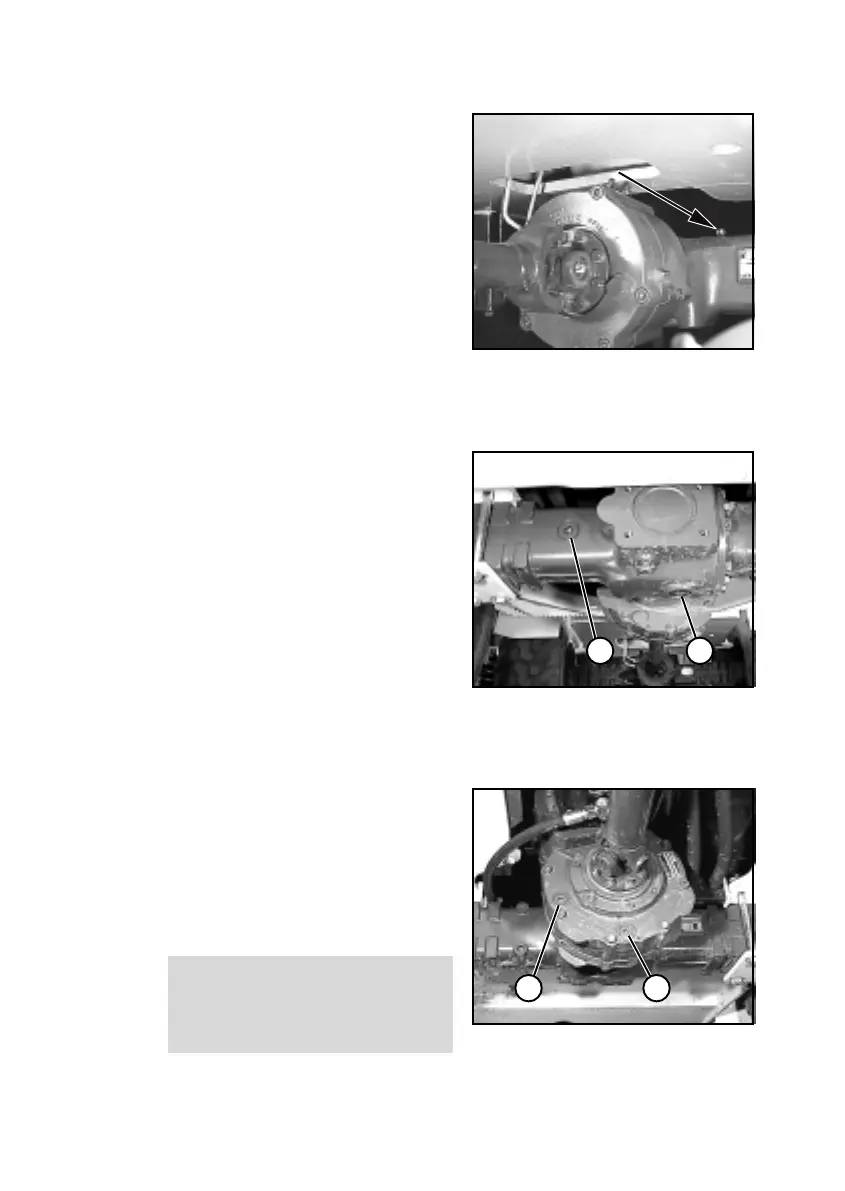

Figure 8-16
Figure 8-15
Figure 8-17
(4) Fill oil into the plug bore of the
intermediate gear (8-14/1) until the
oil level reaches the opening.
NOTE
- Details regarding the amount of
oil required are given in the
maintenance plan (page 8-1).
- After a few minutes, when the oil
level has lowered, top up the oil
until the oil level reaches the
marked level and remains stable.
(5) Screw in the plug of the
intermediate gear (8-14/1) again.
(6) Fill oil into the plug bore of the
axle arch (8-13/1) until the oil level
reaches the opening.
NOTE
- Details regarding the amount of
oil required are given in the
maintenance plan (page 8-1).
- After a few minutes, when the oil
level has lowered, top up the oil
until the oil level reaches the
marked level and remains stable.
- The vent valve of the axle (8-15/
arrow) must be free from dirt.
(7) Screw in the plug of the axle
arch (8-13/1) again.
8.2.9.2Rear axle of the fast
loader » 30 km/h «
(1) Place a sufficiently large oil
drain pan underneath the axle.
(2) Unscrew the plugs from the axle
arch (8-16/1 and 8-16/2) and the
distribution gear (8-17/1 and 8-17/2)
and drain the oil.
CAUTION
Waste oil must be disposed of in
such a way that it will not cause
pollution!
Figure 8-16
Figure 8-15
Figure 8-17
