2-4
K65C/K75C/K95C
2-4
K65C/K75C/K95C

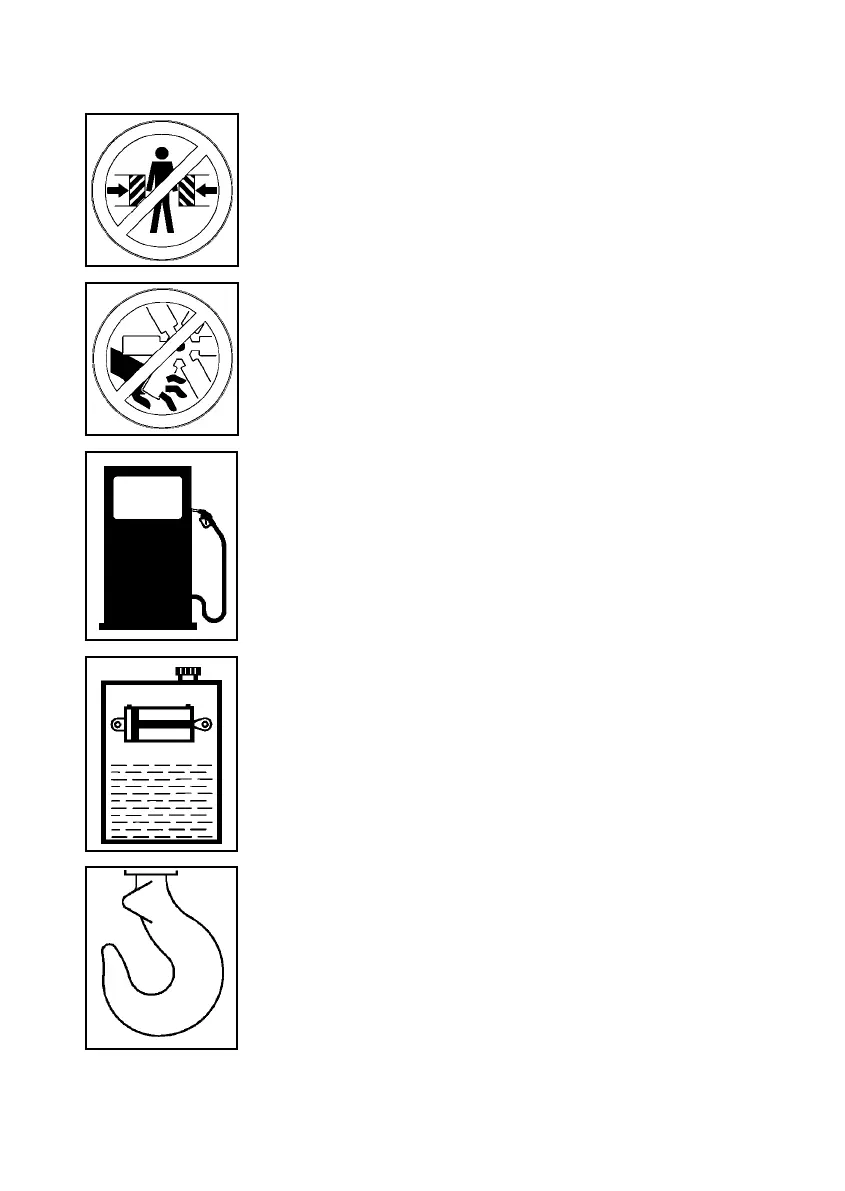

Stay out of the unprotected
articulation area
Open only when the engine is not
running
Fuel tank
Hydraulic oil reservoir
Lifting points for transportation by
crane
Stay out of the unprotected
articulation area
Open only when the engine is not
running
Fuel tank
Hydraulic oil reservoir
Lifting points for transportation by
crane
