K65C/K75C/K95C 5-5 K65C/K75C/K95C 5-5
Before driving on public roads, the
following safety measures must be
taken:

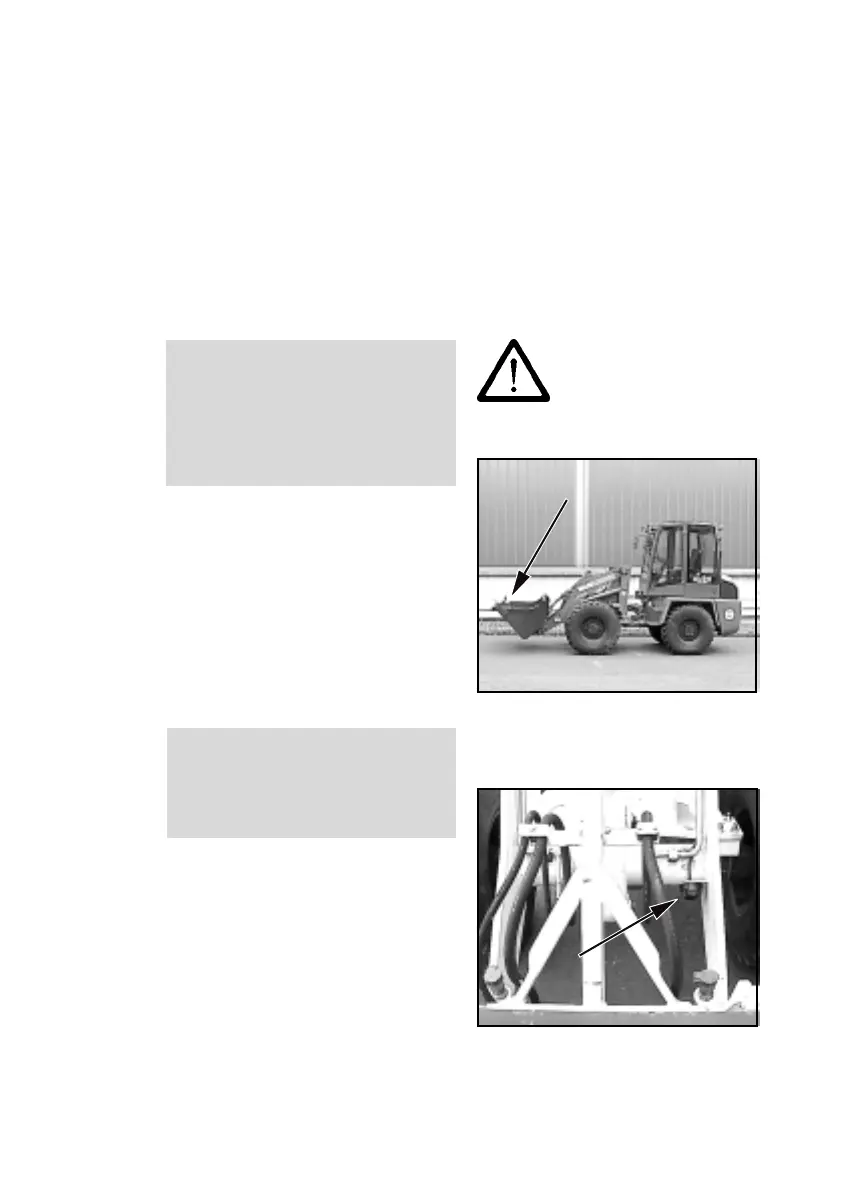

(1) Lower the bucket arm until the
lowest point of the bucket arm or the
bucket is at least 30 cm above the
road (5-3).
(2) Close the ball block valve for
the working and auxiliary hydraulics
(1-3/arrow).
CAUTION
When closed (rear position), the
ball block valve is perpendicular to
the flow direction. This prevents
the bucket arm from being lowered
and the bucket from tipping while
driving.
(3) Cover the bucket cutting edge
and teeth with the bucket protector
(5-3/arrow).
(4) Insert the plug of the bucket
protector into the socket (5-4/arrow).
(5) Check that the lighting system
functions correctly.
(6) Close both doors.
DANGER
- Driving on public roads with the
bucket filled is forbidden.
- The working searchlights must
be switched off (4-13/1).
(7) Release the parking brake
(4-12/3).
(8) Preselect hydraulic drive stage
II (4-12/7).
(9) Set the gear shift to "II" (4-13/13)
» only for fast loaders - 30 km/h «.
(10) Preselect the travel direction
(4-12/6).
Figure 5-4
Figure 5-3
Figure 5-4
Figure 5-3
Before driving on public roads, the
following safety measures must be
taken:
(1) Lower the bucket arm until the
lowest point of the bucket arm or the
bucket is at least 30 cm above the
road (5-3).
(2) Close the ball block valve for
the working and auxiliary hydraulics
(1-3/arrow).
CAUTION
When closed (rear position), the
ball block valve is perpendicular to
the flow direction. This prevents
the bucket arm from being lowered
and the bucket from tipping while
driving.
(3) Cover the bucket cutting edge
and teeth with the bucket protector
(5-3/arrow).
(4) Insert the plug of the bucket
protector into the socket (5-4/arrow).
(5) Check that the lighting system
functions correctly.
(6) Close both doors.
DANGER
- Driving on public roads with the
bucket filled is forbidden.
- The working searchlights must
be switched off (4-13/1).
(7) Release the parking brake
(4-12/3).
(8) Preselect hydraulic drive stage
II (4-12/7).
(9) Set the gear shift to "II" (4-13/13)
» only for fast loaders - 30 km/h «.
(10) Preselect the travel direction
(4-12/6).
