Best lap + RPM
The 6 LED system in this configuration communicates two types of information:
During the lap they indicate the RPM, to set the thresholds and ignition colors (see page
52)
Once a lap has been completed, they will indicate the gap compared to the best lap of
the current session for the set time (see page 53)
Each red LED that lights up corresponds to a worsening of one tenth of a second, each
green LED corresponds to an improvement of one tenth of a second
Best partial + RPM
The 6 LED system in this configuration communicates two types of information:
During the lap they indicate the RPM, to set the thresholds and ignition colors (see page
52)
Once a partial has been completed, they will indicate the gap compared to the best
corresponding partial of the current session for the set time (see page 54)
Each red LED that lights up corresponds to a worsening of one tenth of a second, each
green LED corresponds to an improvement of one tenth of a second

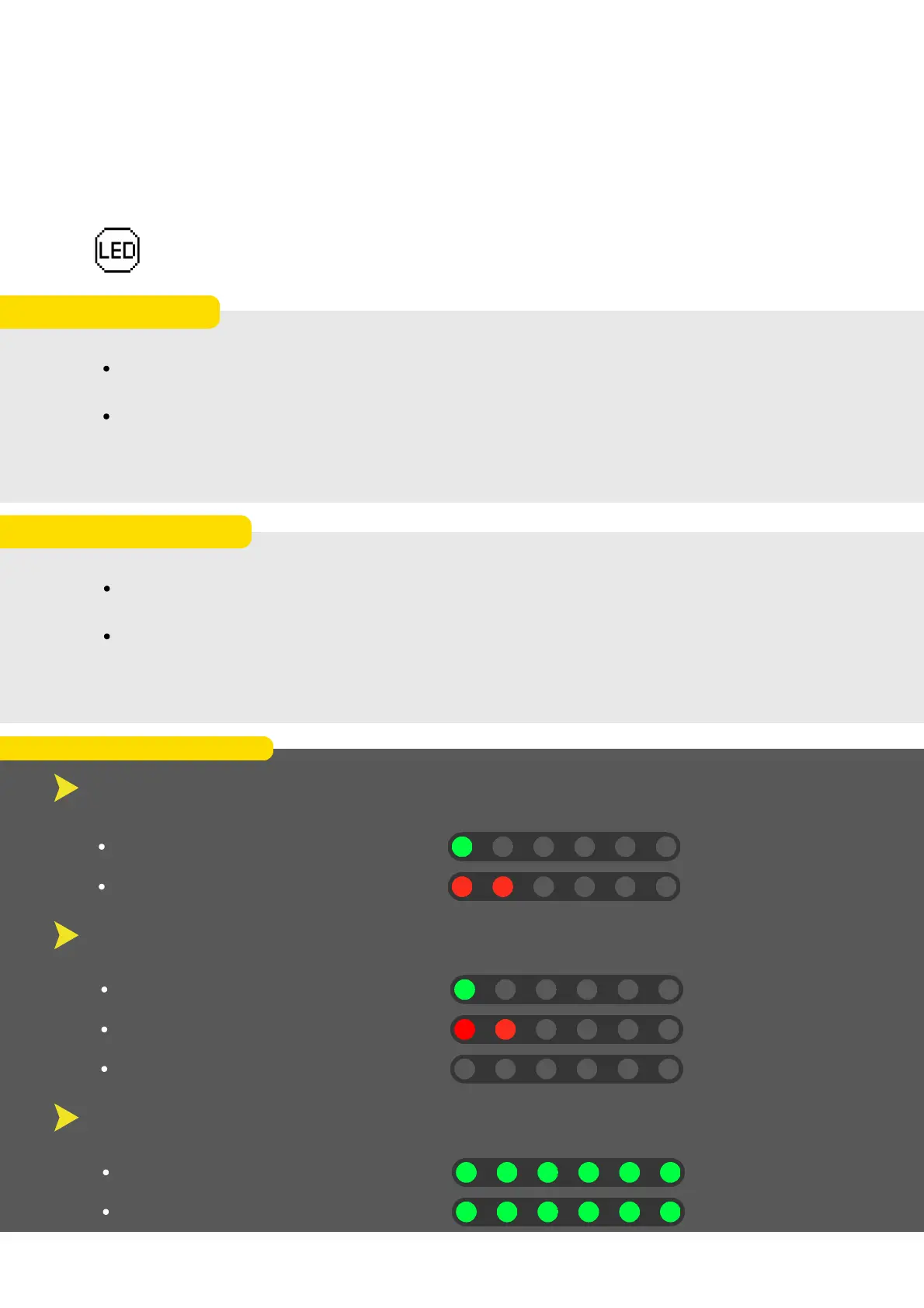

EXAMPLE - Time GAP
Worsening of 2 tenths
Improvement of 1 tenth
Each red LED that lights up corresponds to a worsening of one tenth of a second, each
green LED corresponds to an improvement of one tenth of a second
Improvement of 6 tenths
Improvement of 8 tenths
Positive or negative gaps of more than 6 tenths of a second are signaled by all the LEDs
turning on
Improvement of 1.4 tenths
Worsening of 1.8 tenths
The LEDs communicate gaps in steps of a tenth of a second, the intermediate values are
rounded to the nearest tenth of a second
Worsening of 0.4 tenths
21
7. Race Screen
7.1. Edit Race Screen 2/3/4/5 - EDITABLE
7.1.5. 6 LEDs System
