8.4.4. ANALOGUE INPUT
8.4.3. G-FORCE SENSOR
The 0-5V input of Box12 is a universal input for
connecting any sensor that returns values between 0
and 5 V. The Alfano A3406 cable is required for the
connection
The 0-5V analogue input is factory calibrated but for
sensors with impedance it is possible to calibrate the
voltage read

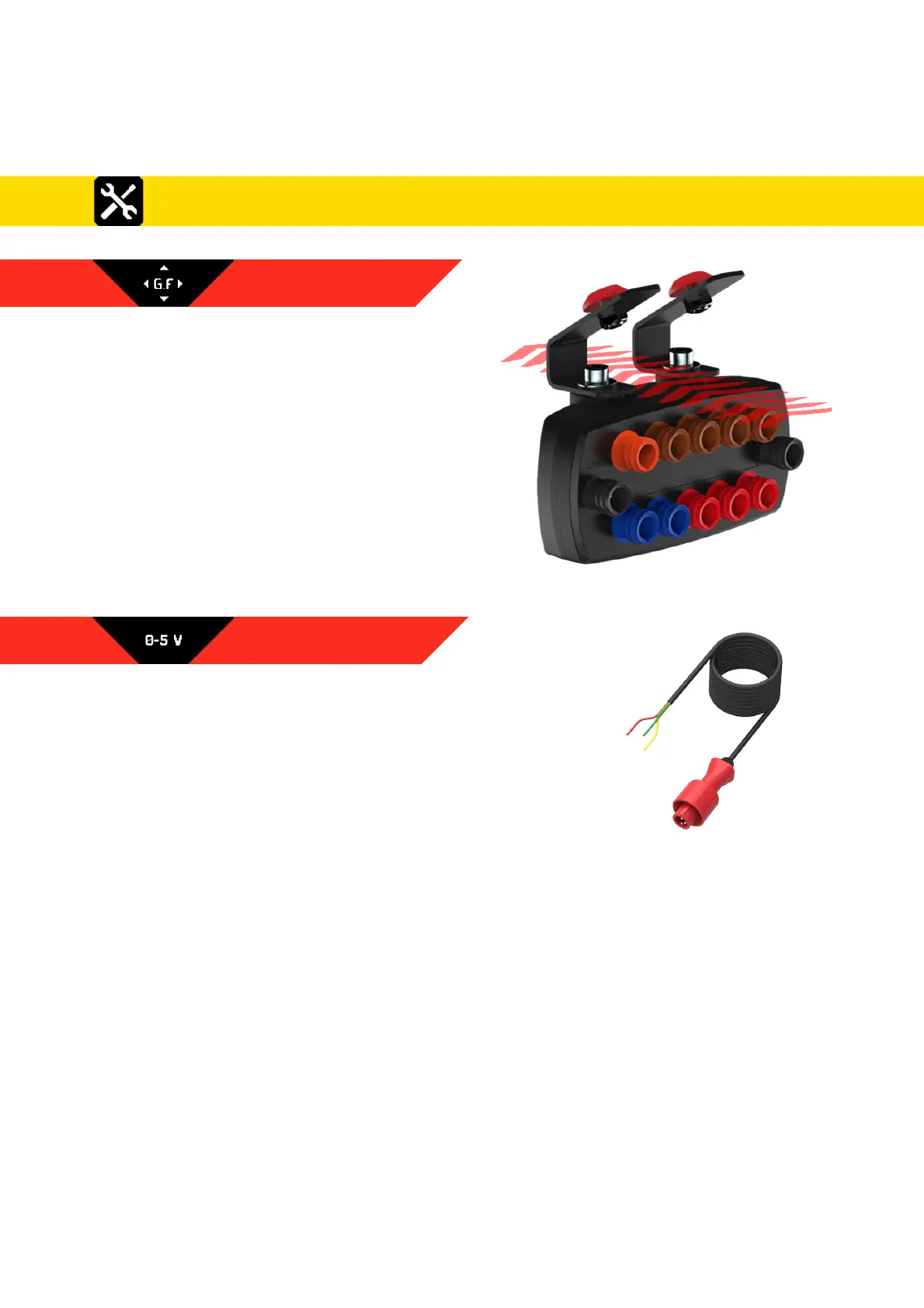

The Box12 has an internal G-force sensor that
must be calibrated for correct operation
To calibrate the G-force sensor, the Box12
must be installed so that the connectors are
parallel to the ground
The Box12 must be positioned as shown in
the photo in relation to the direction of
movement of the vehicle as indicated by the
red arrows
