222 Rockwell Automation Publication 2094-UM001J-EN-P - March 2017
Appendix B Upgrade the Drive Firmware

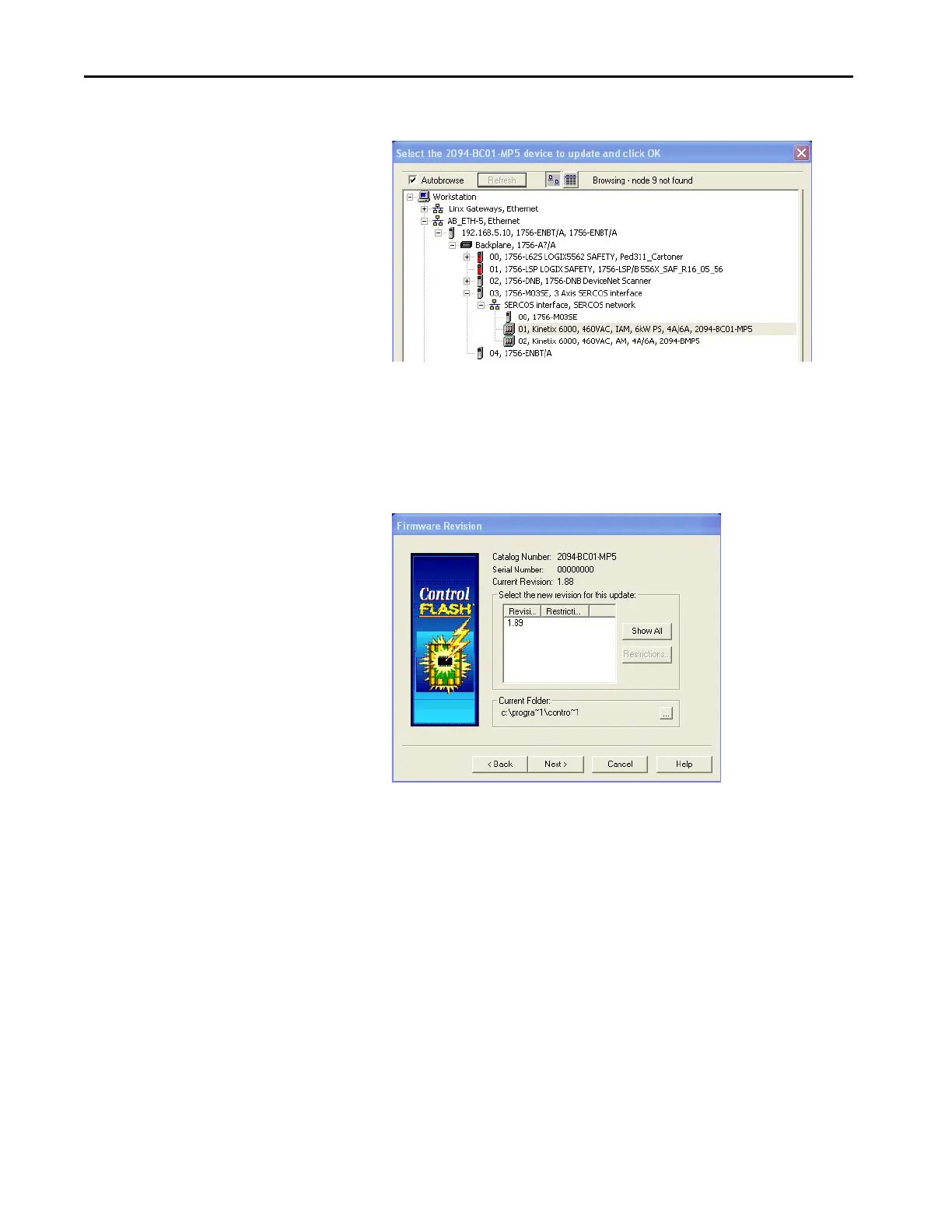

The Select Device to Update dialog box opens.
5. Expand your Ethernet node, Logix5000 backplane, and EtherNet/IP
network module.
6. Select the servo drive to upgrade.
7. Click OK.
The Firmware Revision dialog box opens.
8. Select the firmware revision to upgrade.
9. Click Next.
