Publication 1785-UM012D-EN-P - July 2005
Communicating with Devices on an Ethernet Network 11-21
Each file contains a hyperlink that takes you to the specific Data Table
Monitor page for that file.
8. On the bottom of the Data Table Memory Map page, click on DT
Monitor.

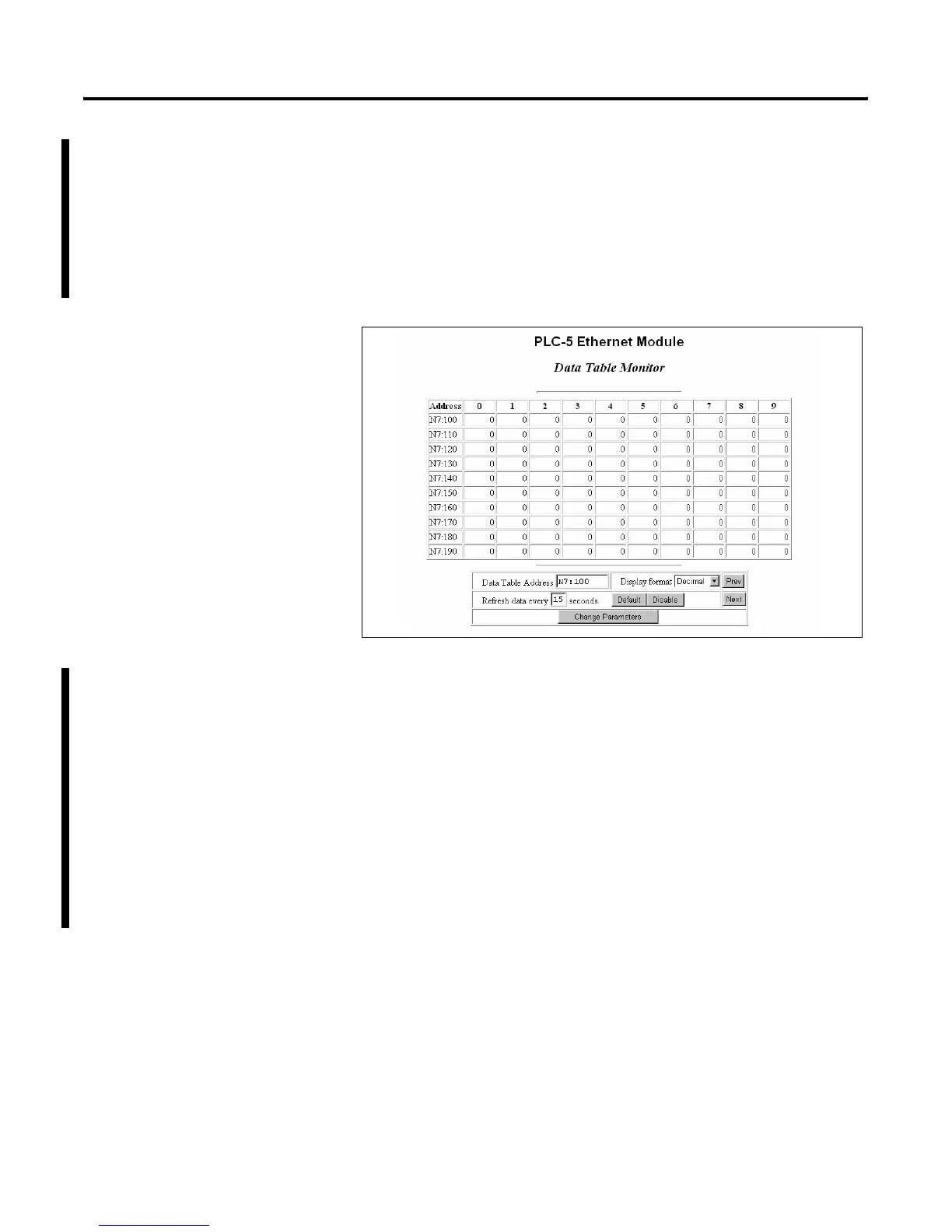

The Data Table Monitor page appears and displays a table that shows
the contents of the selected PLC-5 data table file:
The available and default display formats depend on the data type of the
file.
Press the Prev or Next buttons to display the previous or next page
of the data table file.
You can change the Data Table Address, Display
Format and Refresh data every fields by entering the data in
the text boxes and clicking the Change Parameters button.
To change the refresh data function back to the default of 15 seconds,
click the Default field. To disable the refresh data function, click the
Disable button.
