Communicating with Devices on an Ethernet Network 11-29

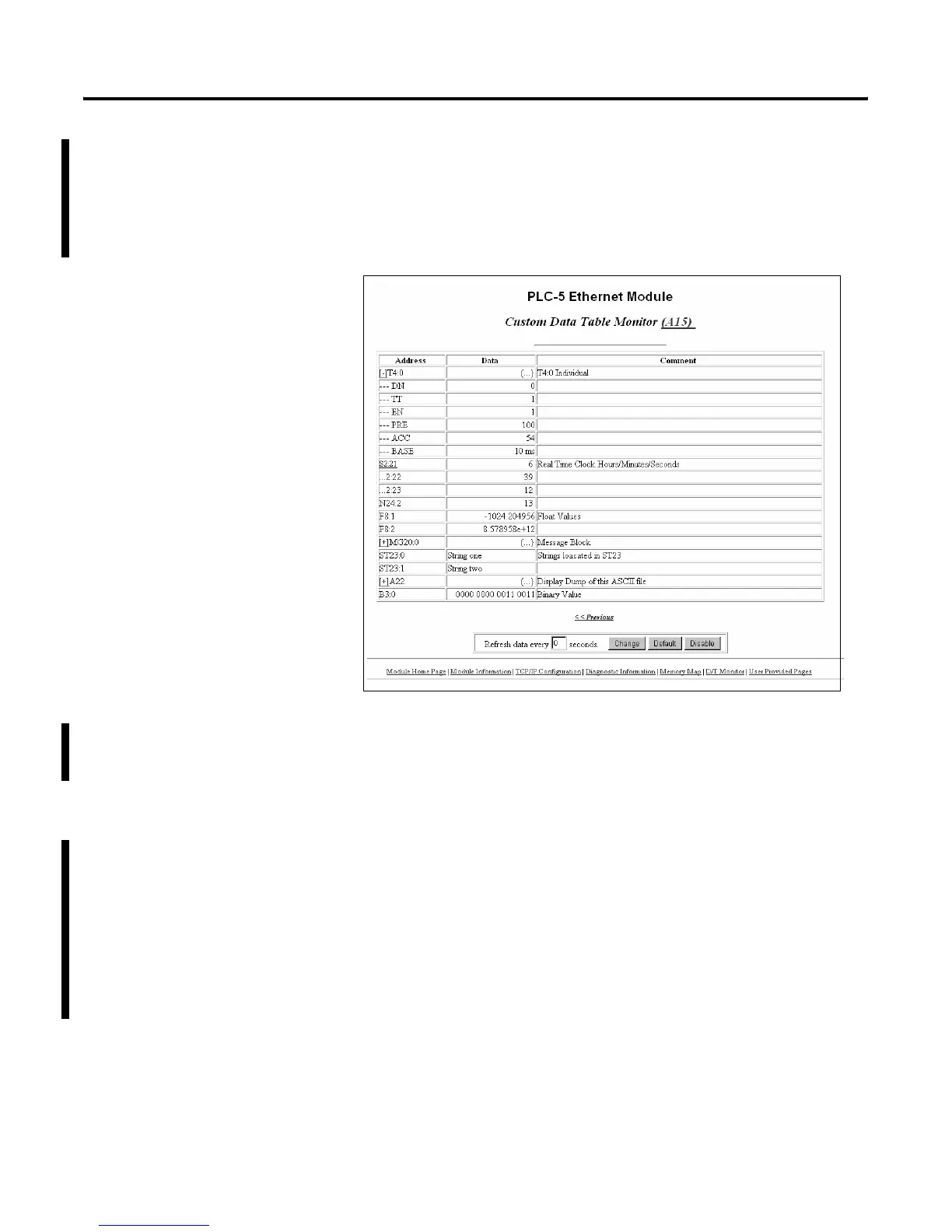

To see the Sample Extended Format page:
1. Go back to the Custom Data Table Monitor page.
2. In the Address column, click on the + before the T4:0 to display the
Sample Extended Format:
This completes the Embedded Web Server enhancements and descriptions.
Corrected anomalies and previous controller enhancements are described on
the following pages.
Using Multihop Messaging
You can use multihop messaging over Ethernet, so that controllers can
communicate over Ethernet with ControlLogix devices or through a
ControlLogix Ethernet module (1756-ENET) to other PLC-5 and SLC
controllers. You need a series E, revision D or later PLC-5 controller, and if
using a sidecar module, you will need a series B or later 1785-ENET interface
module.
To take advantage of these enhancements, you need RSLogix 5 programming
software, release 3.2 or later.
