Publication 1785-UM012D-EN-P - July 2005

11-28 Communicating with Devices on an Ethernet Network

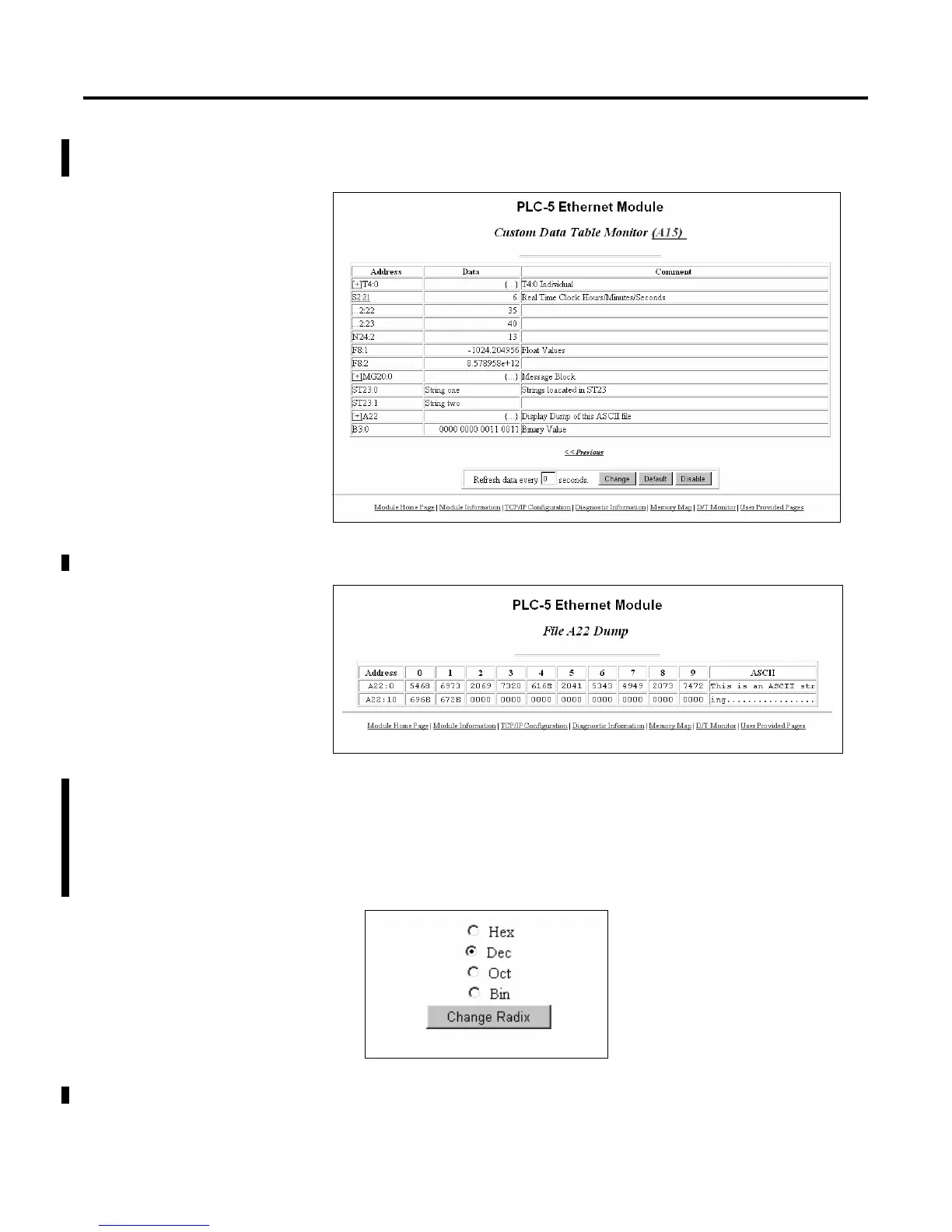

10. Select the User Provided Page #4 to display the following

screen:

11. Click on [+]A22 to display the following screen:

You can change the radix display of N7:0 through N7:2:

1. Go back to the Custom Data Table Monitor page.

2. In the Address column, click on N:70 to display the radix

selection page:

3. Click on a radio button to select the desired radix type.
