Allen-Bradley PLC-5 User Manual

Publication 1785-UM012D-EN-P - July 2005
Communicating with Devices on an Ethernet Network 11-31

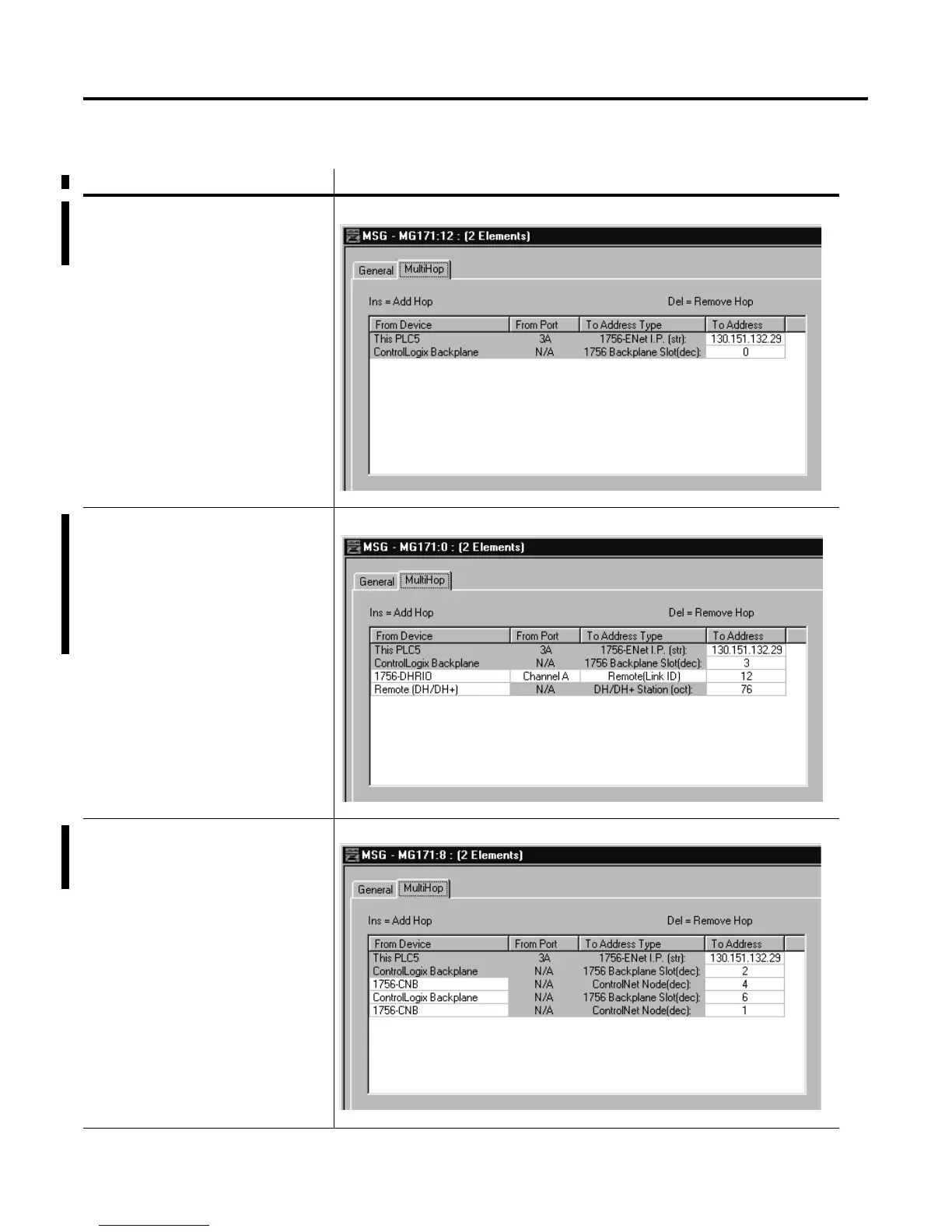

Scenario Multihop Path
originating PLC-5 with Ethernet interface
to
ControlLogix controller in chassis 1
originating PLC-5 with Ethernet interface
to
PLC-5 (station 76) on DH+ link (link 12)
Note: Both 1756-DHRIO modules need routing
tables that show a path to both link 12 and the
link ID that is configured for the Ethernet port of
the originating PLC-5 controller.
originating PLC-5 with Ethernet interface
to
ControlNet PLC-5 (node 1)

Allen-Bradley PLC-5 Specifications

General

Programming Software	RSLogix 5
Programming Languages	Ladder Logic
Power Supply	120/240V AC or 24V DC
Communication Ports	DH+, Remote I/O, Ethernet/IP, ControlNet
Operating Temperature	0 to 60°C (32 to 140°F)
Relative Humidity	5 to 95% non-condensing
Memory	Up to 64K words (user program and data)
