If an ACC power supply is not available

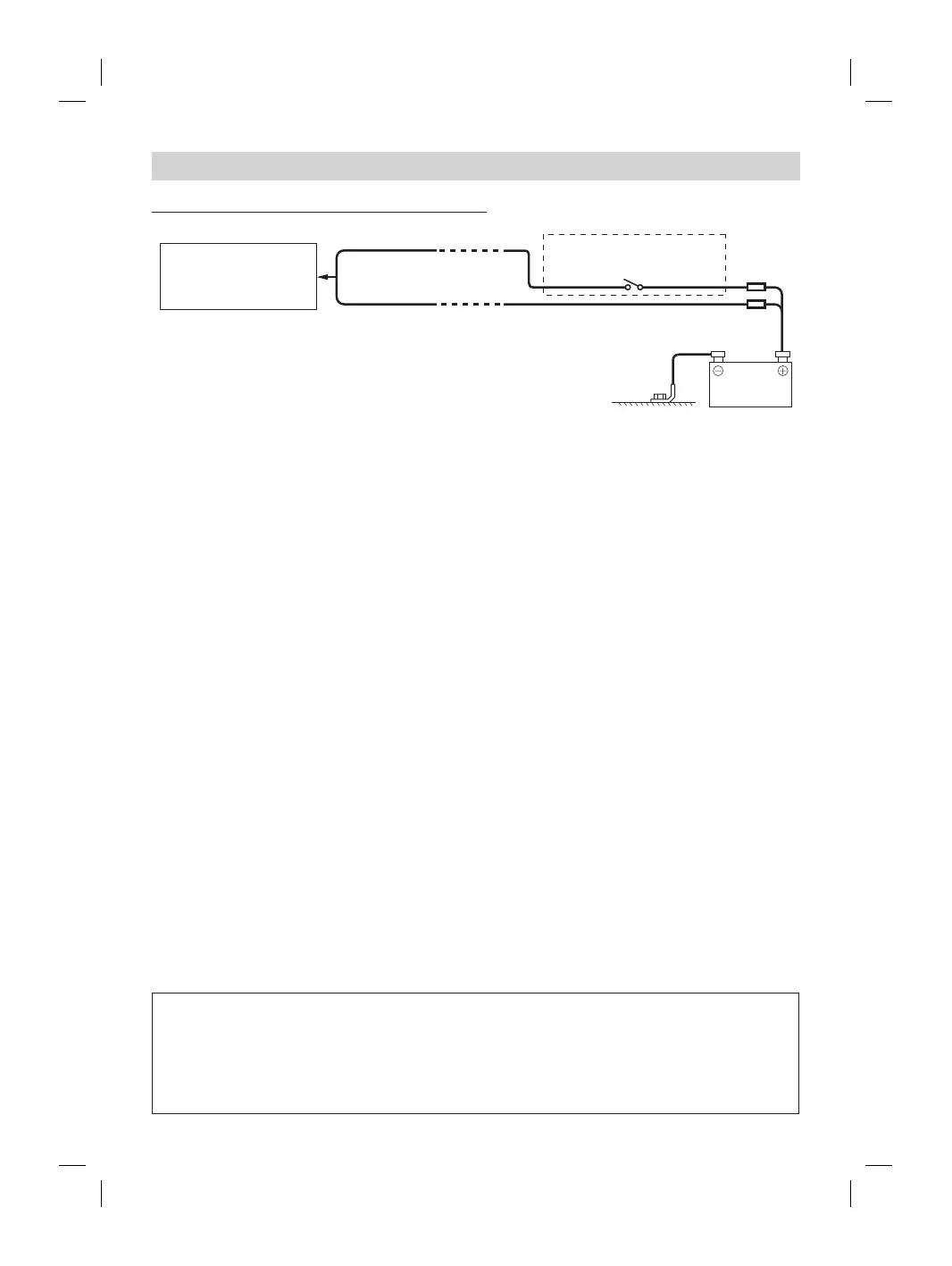

Connection Diagram of SPST Switch (sold separately)
BATTERY
iLX-507E
iLX-F509E
iLX-F511E
(Red)
ACC
Battery
(Yellow)
SPST SW (Optional)
FUSE (20A)
(Optional)
FUSE (5A)
(Optional)
• If your vehicle has no ACC power supply, add an SPST (single-pole, single-throw) switch (sold separately) and fuse (sold separately).
• The diagram and the fuse amperage shown above are in the case when the unit is used individually.
• If the switched power (ignition) lead of the unit is connected directly to the positive (+) post of the vehicle’s battery, the unit draws
some current (several hundred milliamperes) even when its switch is placed in the OFF position, and the battery may be discharged.
To prevent external noise from entering the audio system.
• Locate the unit and route the leads at least 10 cm away from the car harness.
• Keep the battery power leads as far away from other leads as possible.
• Connect the ground lead securely to a bare metal spot (remove any paint, dirt or grease if necessary) of the car chassis.
• If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries
various noise suppressors, contact them for further information.
• Your Alpine dealer knows best about noise prevention measures so consult your dealer for further information.
onnecting to an iPhone with a Lightning connector
USB Connector 2.4A (Black)
iPhone with a Lightning
connector
(sold separately)
Lightning to USB Cable
KCU-471i (sold separately)
ave an iPhone in a vehicle for a long time. Heat and humidity may damage the iPhone, and you may not be able to play it
lash Drive
USB Connector 2.4A (Black)
USB Flash Drive
(sold separately)
ave a flash drive in a vehicle for a long time. Heat and humidity may damage the flash drive.
