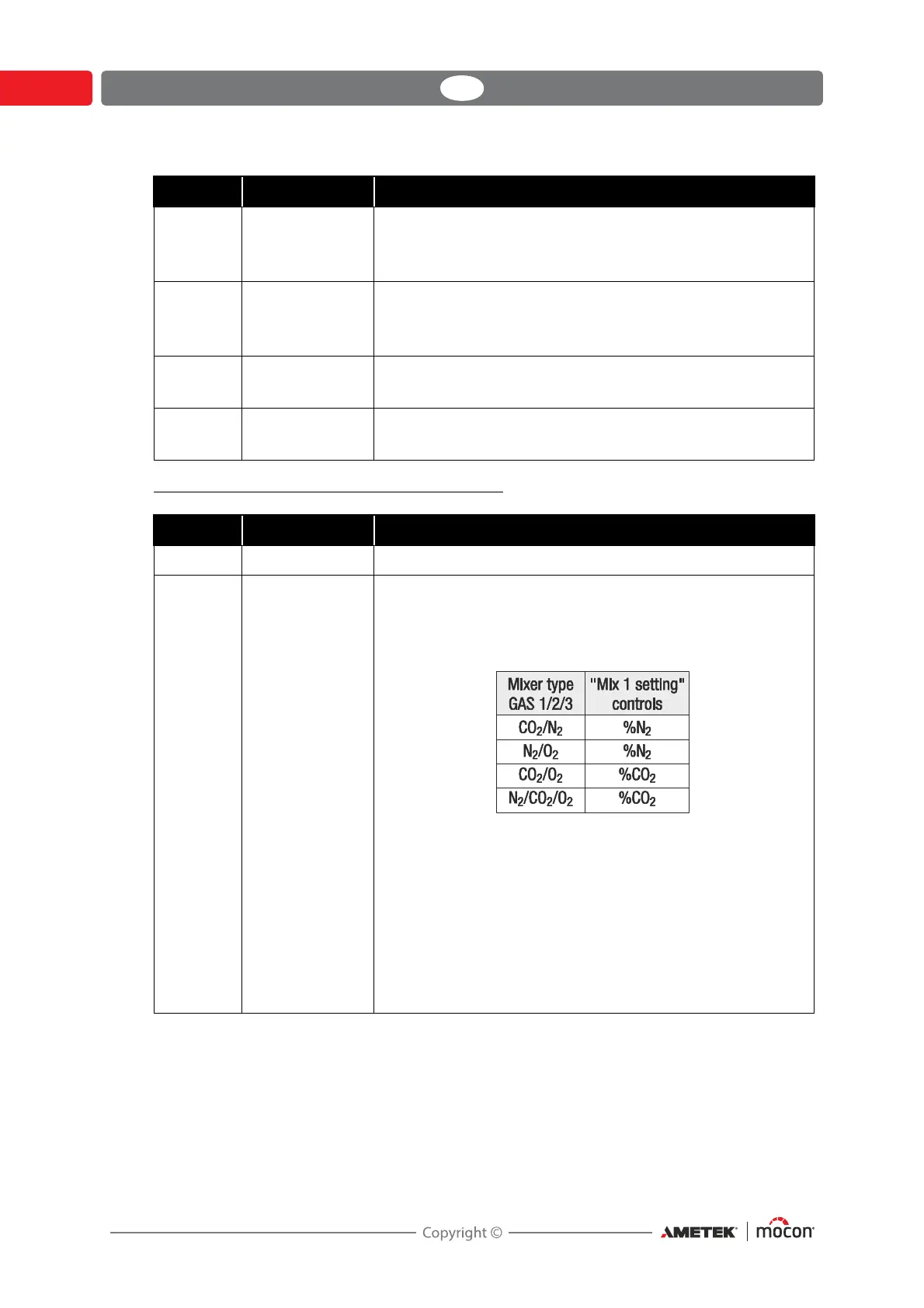

40 User Guide EN Dansensor® MAP Mix Provectus
P/N 300862-K
11/2019
Write commands (W (Operational commands))
0xA035 "Mixer table 1"
offset
(read only)
Not used in MMP
0xA04B "Mixer table 2"
offset
(read only)
Not used in MMP
0xA009 Mixer table 1
(read only)
Not used in MMP
0xA01F Mixer table 2
(read only)
Not used in MMP
Location Register write Encoding
0x0000
0x0010 Mix 1 setting 1 unsigned byte
Range 0 to 100%
For a 3-gas mixer this controls the setting of "GAS 2 INPUT"
i.e. %CO
2
For a 3-gas mixer:
When writing new "Mix 1 setting" MAP mix 8000 will not
change "Mix 2 setting", and vice versa, if possible.
i.e. %O
2
is increased/decreased to compensate for the
change in the new "Mix 1 setting" or "Mix 2 setting" setting.
If/when %O
2
reach minimum % or 100%, when adjusting to a
new "Mix
1 setting", "Mix 2 setting"( %N
2
) is changed and vice
versa.
The sum of %N
2
, %CO
2
and %O
2
is always 100
Location Register read Encoding
