Operation Sorensen SGI Series
3-22 M550221-01 Rev U
3.7.10 Remote Control Screen Examples

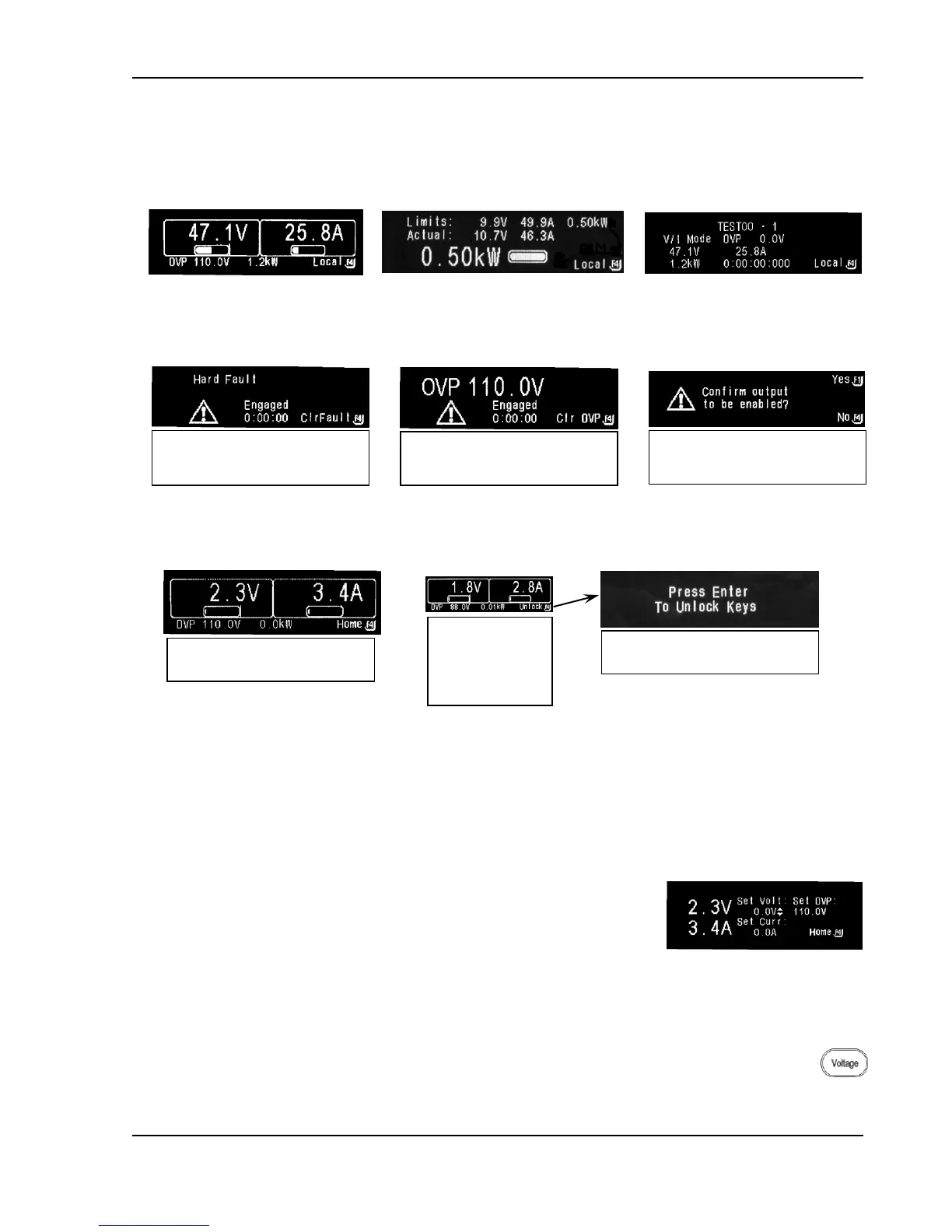

Remote screens display when operation is controlled by computer. Pressing
F4 from any Remote screen returns operation to Local Mode.
3.7.11 Warning Screens
3.7.12 Other Screens
3.8 Programming/Operating Functions
This section describes various programming/operating instructions
3.8.1 Voltage, Current, and Overvoltage Protection Programming
Press Voltage, Current, or Overvoltage key on Control
Panel to go directly to the Default Programming Menu. The
editing arrow will be displayed next to the corresponding
item pressed.
PROGRAMMING VOLTAGE
Go directly to Voltage programming by pressing the voltage key. The
Default Programming menu is displayed and the Editing Arrow is to the
right of the "Set Volt" editable value. Edit the value by NavPad up/down
or by entering the value with "Keypad 0-9". For more details see
Section 3.6.
General hardware failure has
occurred. Press F4, Clear Fault,
to reset the unit.
Overvoltage Protection was
tripped. Press F4, Clear OVP;
the unit will reset in 4 seconds.
Displays when a saved setting
with Output On is recalled. See
Section 3.8.3 for details.
Home Menu Time Out Screen
displays after 30-second idle.
Screen to confirm Unlock control
panel keys.
Locked Key
Screen (From
Home Menu
Page 2, F2) to
unlock press F4
