Operation Sorensen SGI Series
3-38 M550221-01 Rev U
2400 to 19200. Pressing F1 saves the new values in non-
volatile memory so that they will be remembered after
power down. Pressing F4 keeps the selected values only
until the unit is power down; then, at next power up, the
previously saved settings will be restored.

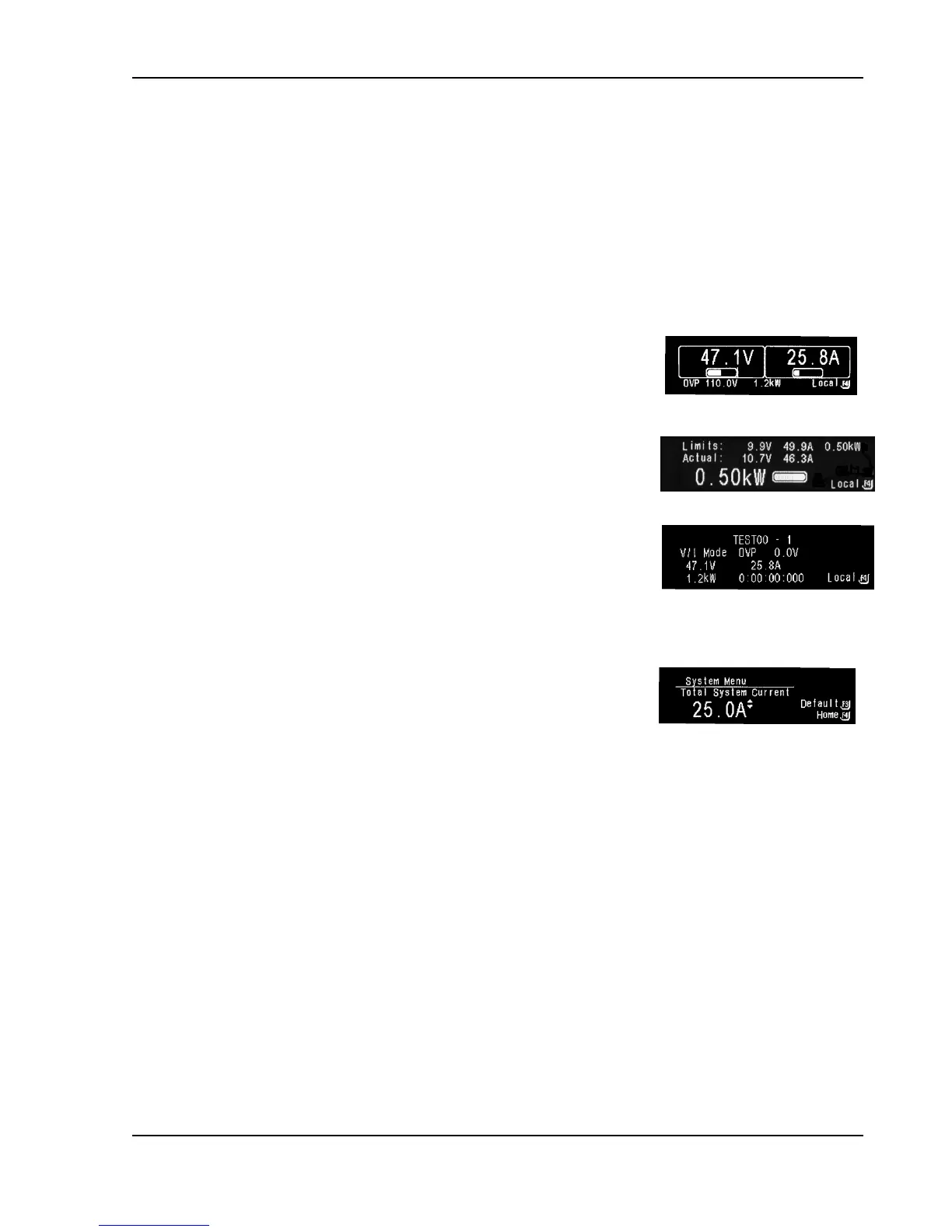

REMOTE OPERATION SCREENS
If the unit is being controlled remotely via Ethernet, GPIB or RS-232 interface,
special screens may appear during operation. The following describes those
displays:
Remote Mode Primary display shows the actual values
for Volts and Watts. F4 jumps to Home Timeout
screen.
Remote Mode Power display shows the set points on
the first line, actual values for Voltage and Current on
the second line, and at the bottom, the actual value for
Watts with a bar graph of its percent of full-scale
power. F4 jumps to the Constant Power screen.
Remote Mode Sequence display shows what
sequence is running. F4 jumps to the local Sequence
Run screen.
3.8.12 System
The System submenu allows the user to display the total
system current when the unit is being paralleled with
other SG series supplies.
From Home Menu Page 3, press F2 to enter the System Menu. Determine the
Total System Current by adding the maximum current rating of all supplies in
parallel. Use NavPad or the KeyPad "0-9" to enter the appropriate value. F3
resets Total System Current to the supply default value; F4 keeps the
displayed value and jumps to Home Menu Page 1.
