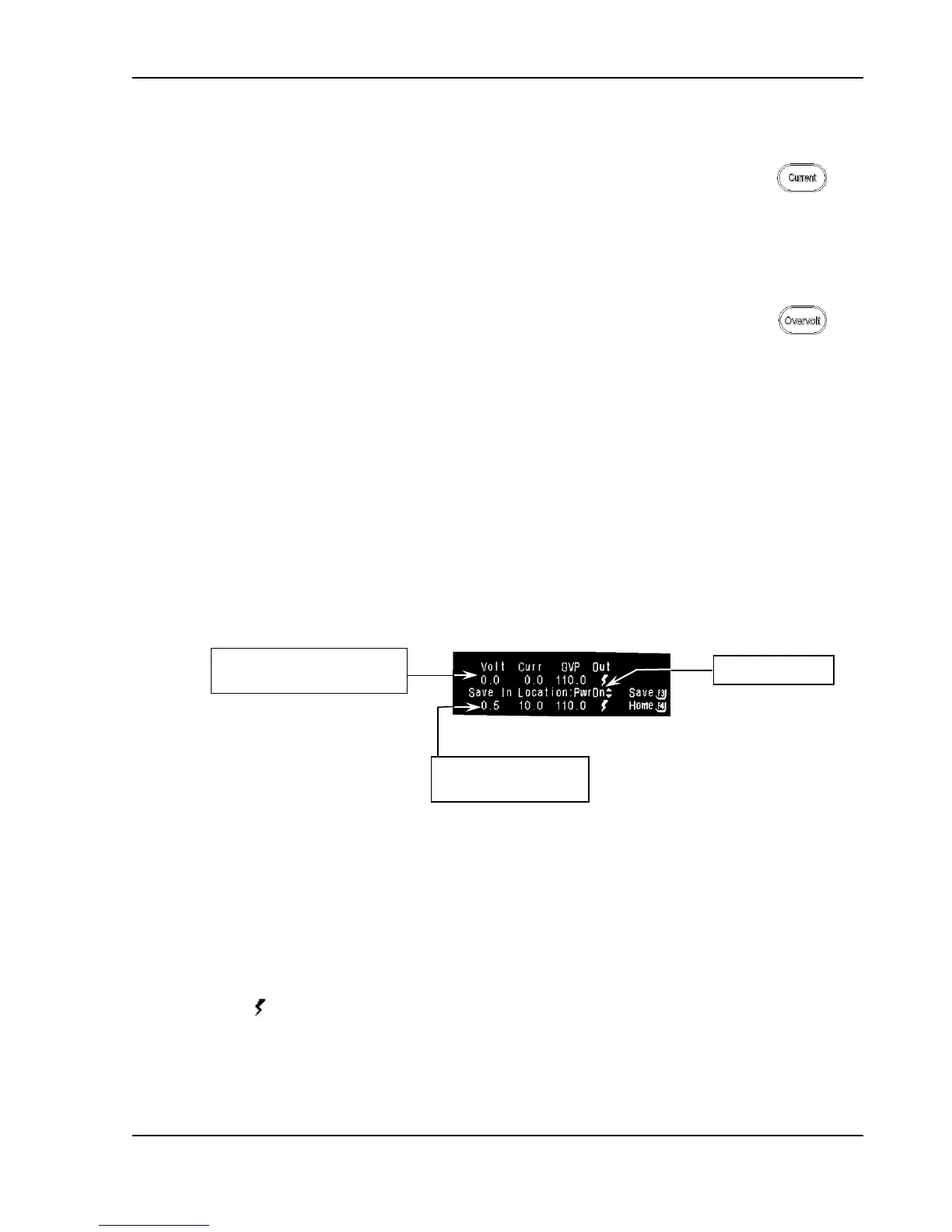

Sorensen SGI Series Operation
M550221-01 Rev U 3-23
PROGRAMMING CURRENT
Go directly to Current programming by pressing the current key. The
Default Programming menu is displayed and the Editing Arrow is to
the right of the "Set Curr" editable value. Edit the value by NavPad
up/down or by entering the value with "Keypad 0-9". For more details see
Section 3.6.
PROGRAMMING OVERVOLTAGE PROTECTION
Go directly to Overvoltage trip point programming by pressing the
overvoltage key. The Default Programming menu is displayed and
the Editing Arrow is to the right of the "Set OVP" editable value. Edit
the value by NavPad up/down or entering the value with "Keypad 0-9".
For more details see Section 3.6.
3.8.2 Save
There are 10 memory locations (PwrOn and 1 through 9) into which a
programmed output configuration of Voltage, Current, OVP (Overvoltage
Protection trip point) and Output Condition can be stored. From Home Menu
Page 1 press (F1) to enter the Save menu. Voltage, Current and OVP values
programmed in the Default Programming menu will be pulled into the Save
menu, top line, upon reaching that menu. In addition, the present output
condition, output engaged or output disabled, will be indicated.
EDIT VOLTAGE, CURRENT AND OVP
Toggle between the editable items using the NavPad and edit Voltage,
Current and OVP to appropriate values (see Section 3.6 for editing
details).
EDIT OUTPUT CONDITION
Pressing NavPad up/down will toggle the output condition indicator on
( ) to indicate the output will be enabled and off (blank) to indicate the
output will be disabled.
Note:
Edits will not take effect until the configuration is saved.
Values pulled in from Default
Programming Menu.
Save to location.
Values currently saved
in location.
