3.11.2 Remote Voltage Programming by Voltage Source
Two inputs are provided for remote voltage-programming of the output
voltage: 5 VDC full-scale and 10 VDC full-scale. The DC voltage source is
connected between Pin J1-9 (VP 5 V) for 5 VDC source, or Pin J1-15 (VP 10
V) for 10 VDC source, and the return terminal J1-20 (VP RTN).
The corresponding voltage-programming coefficients for output voltage are
(100% rated output voltage) / 5 VDC, or (100% rated output voltage) /10 VDC,
from the respective inputs with return to Pin J1-20 (VP RTN). This produces
transfer functions for output voltage, as follows:
Vout = Vdc * (100% rated output voltage) / 5 VDC), with Vdc in volts, or
Vout = Vdc * (100% rated output voltage) / 10 VDC), with Vdc in volts.
Note: The return terminal (VP RTN) must be referenced directly to, or within
±3 V, of the circuit common, Pins J1-6 and J1-24. See Figure 3-17 for
connection requirements.
+
-
1
13
20 VP RTN
COM 6
+
-
15 VP 10V
VP 5V 9
0-5 VDC
VOLTAGE
SOURCE
0-10 VDC
VOLTAGE
SOURCE

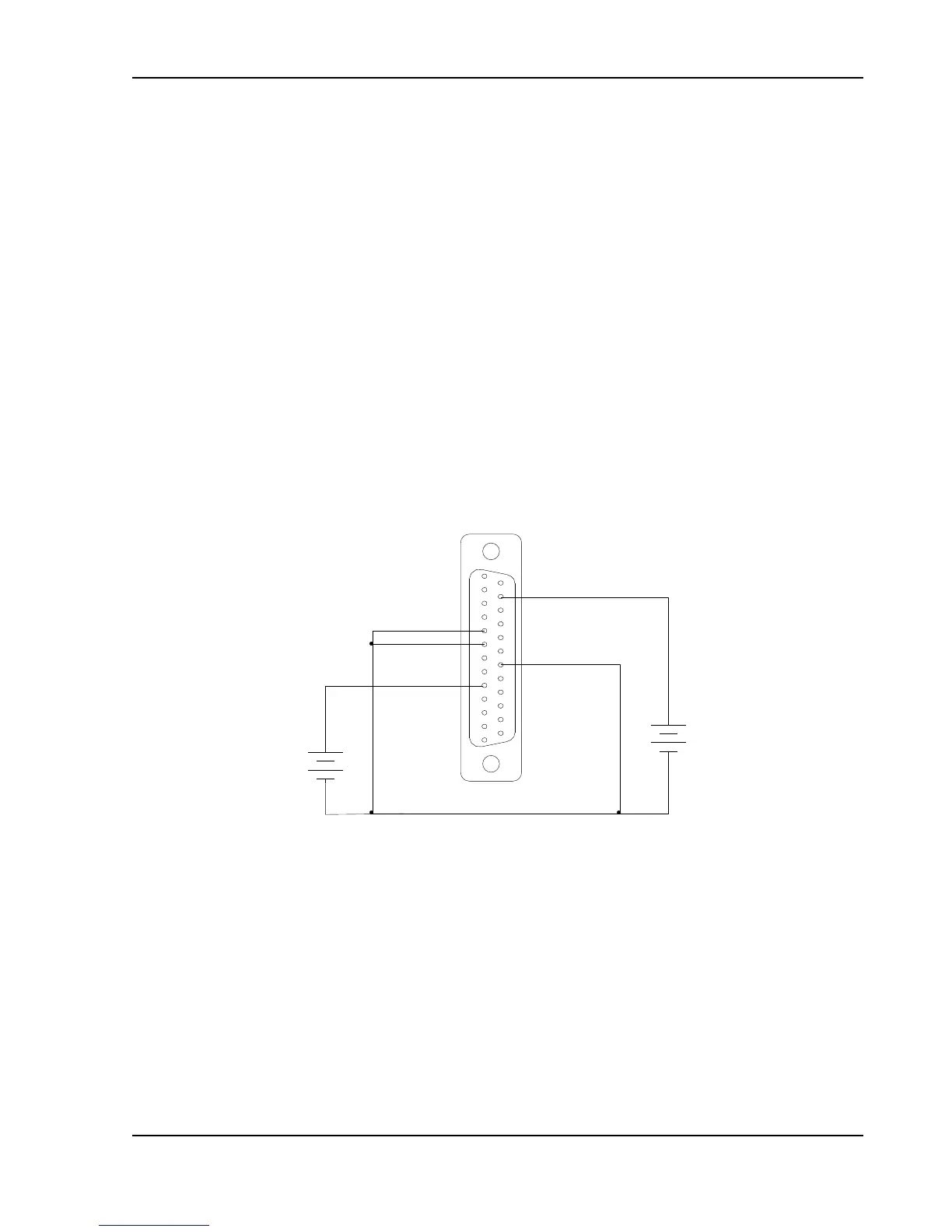

Figure 3-17. Remote Voltage Programming Using 0-5 VDC or 0-10 VDC Source
