Ametek Sorensen SGI Series User Manual

Sorensen SGI Series Operation
M550221-01 Rev U 3-51
CAUTION!
If the power supply is operated with load power lines
disconnected and remote sense lines connected, internal
power supply damage might occur, since output load current
could flow through the remote sense terminals.
To use remote voltage sensing, connect the power supply as described below
in Figure 3-24 for 10V-800V models, and Figure 3-25 for the 1000V model. A
shielded, twisted-pair cable is recommended to avoid potential noise
interference.
3
1
2
Power
Supply
Output
J3-1: Sense (+)
J3-2: Sense (-), 10V-600V Only
Load
J3
+
-
J3-3: Sense (-), 800V Only

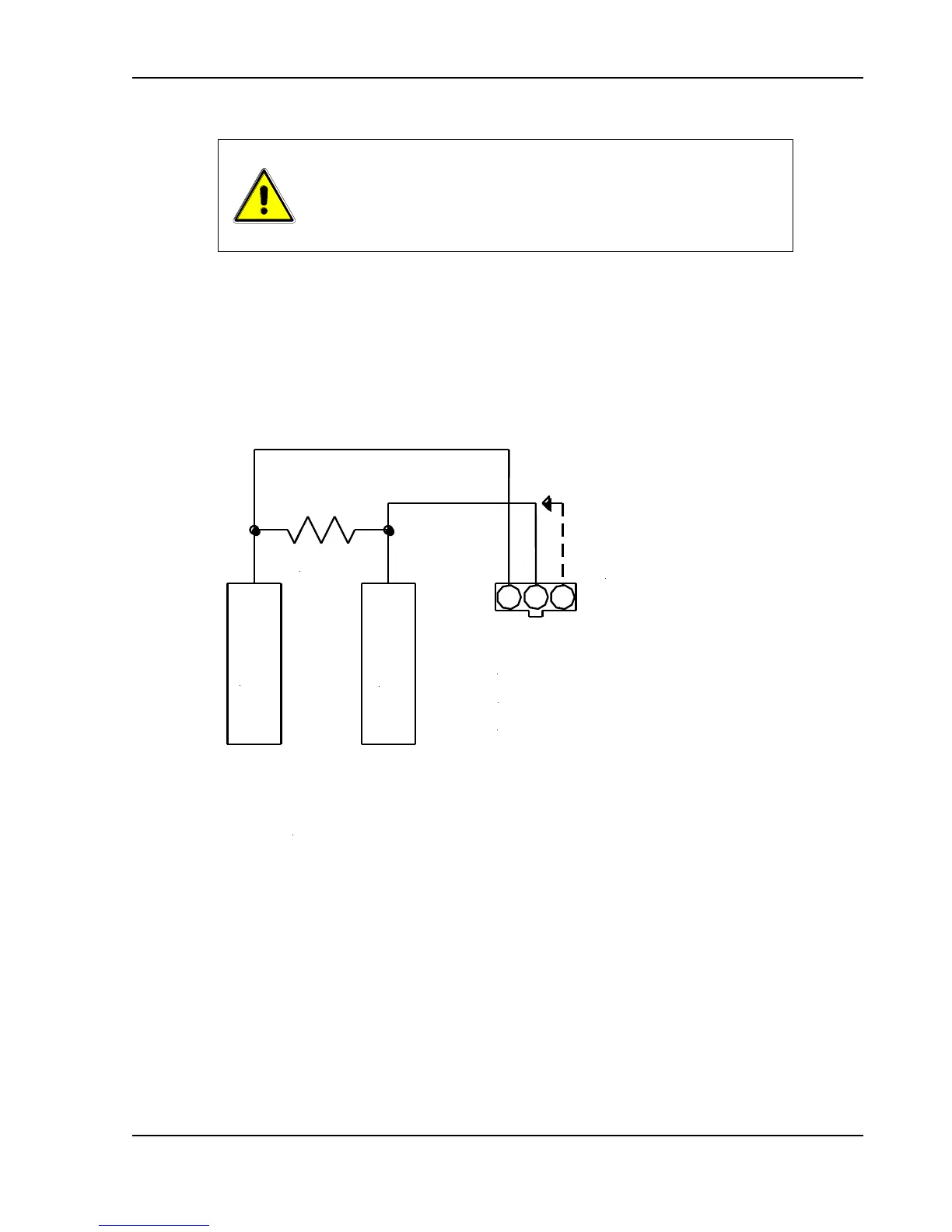

Figure 3-24. Remote Sense Connection at the Load, 10V-800V Models
