9.10.4 Cleaning the hydraulic oil cooler
1 Check the cooling ribs of the hydraulic oil cooler for dirt and clogging.
2 Clean the ribs with water or blow them out with compressed air.
NOTE Never clean the cooler with high pressure (e.g. powerful water jet).

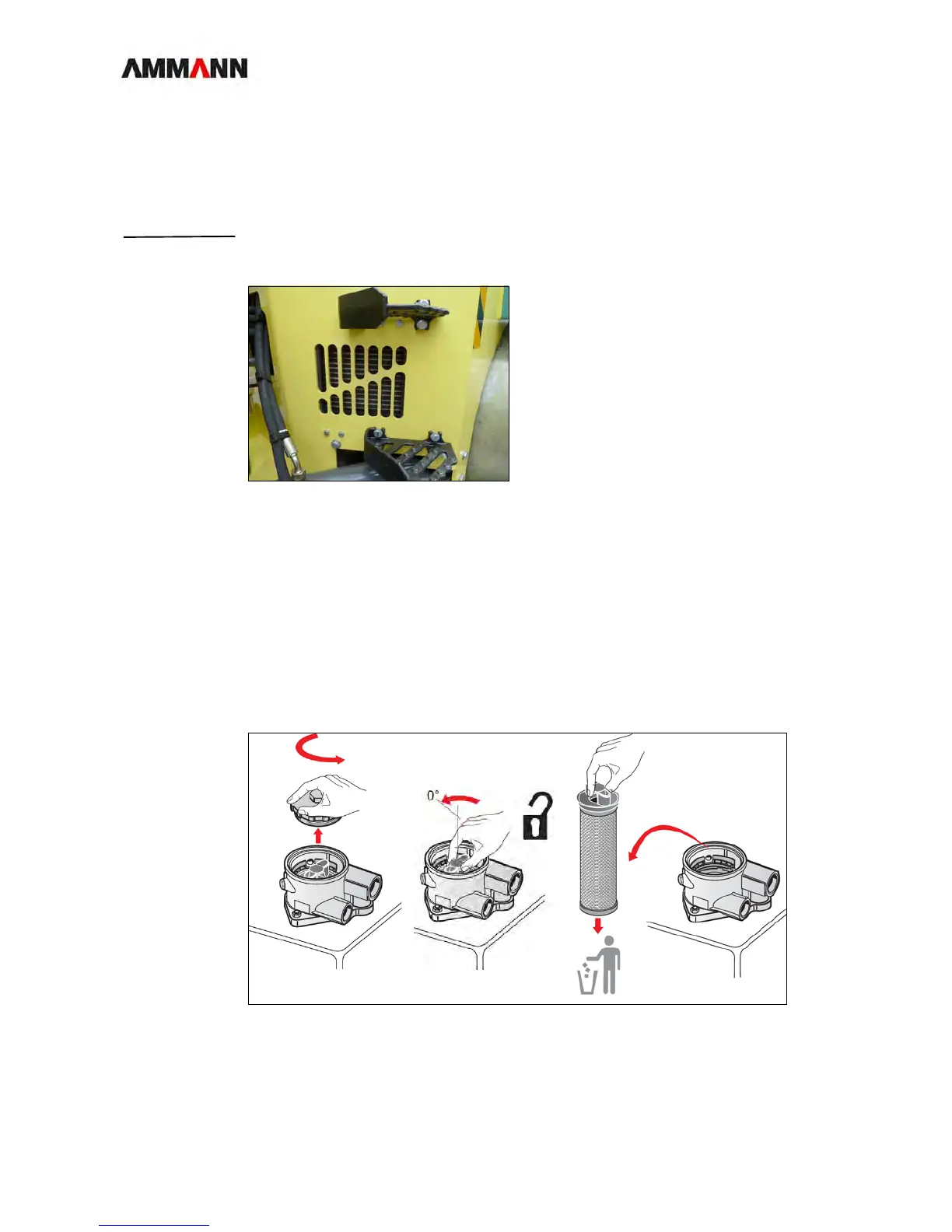

Fig. 9-16 Hydraulic oil cooler grill
9.10.5 Replacing the hydraulic oil filter
1 Remove the filter lid.
2 Unlock the filter element.
3 Lift the filter element out of the filter housing.
3.1 Dispose of the filter element in an ecologically appropriate manner.
Fig. 9-17 Replacing the hydraulic oil filter, steps 1 to 3
4 Place the new filter element in the proper position.
4.1 Observe the position of the locking cam.
5 Turn the filter element fully clockwise to the stop.
