Options 75
1208531 | 03.07.2012
8.5.1 Transport with ROPS folded down
During transport with the ROPS folded down, e.g. in a container or closed truck, you
must remove the whole roof.
8.5.2 Fitting / removing the roof
Please note the work/assembly instructions contained in the delivery: (ANW-4397
roof option).
Fitting the roof 1 Screw the roof to the ROPS with the four Allen screws and washers.
1.1 Make sure that the screws are always firmly tightened.
Roof with revol-
ving warning light
1 Loosen the wing nuts of the revolving warning light.
2 Lift the warning light out of the holder.
8.5.3 Transport with ROPS folded up

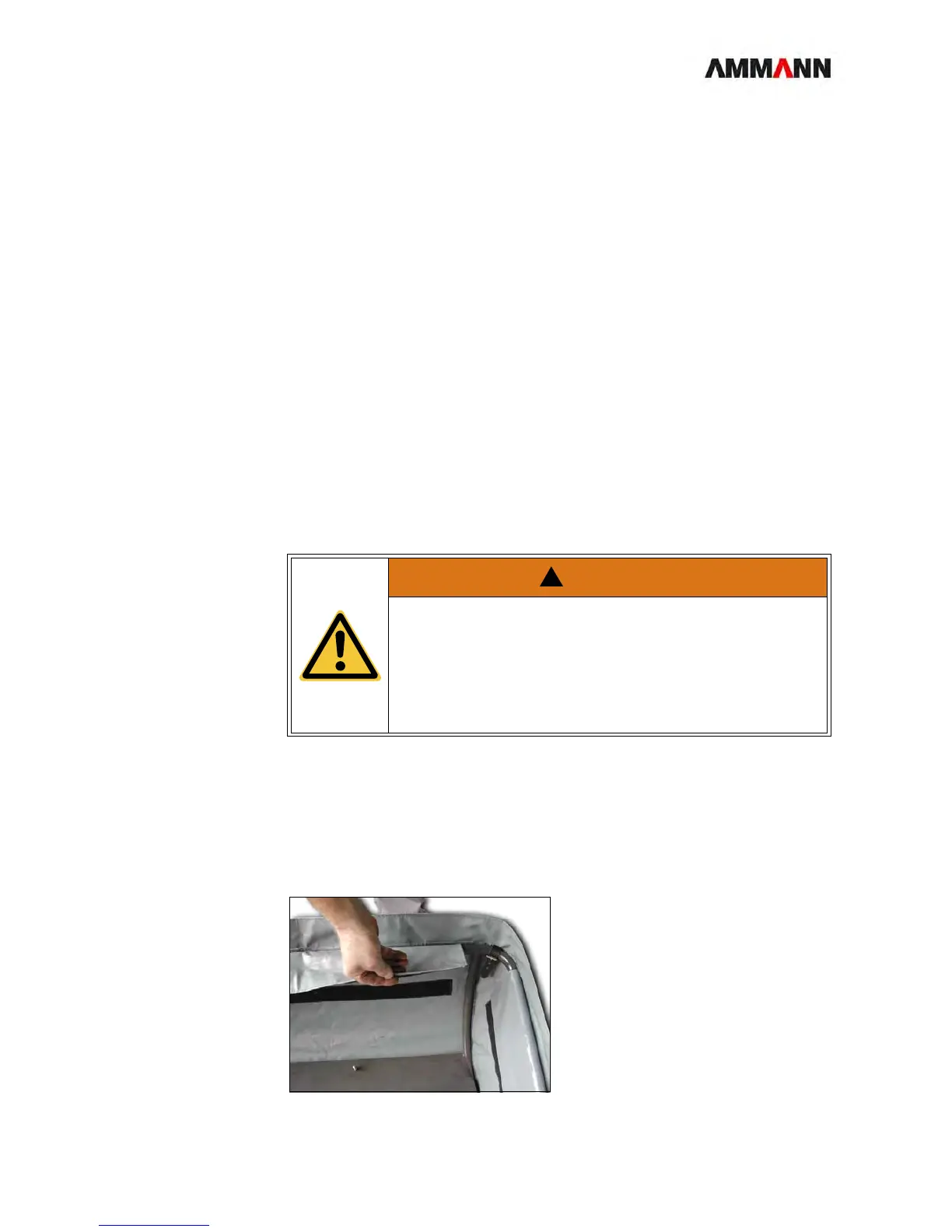

8.5.4 Removing the tarpaulin
1 Detach the hook-and-pile fastener on the sides and the leather straps in the
corners.
2 Remove the tarpaulin.
Fig. 8-6 Removing the tarpaulin
WARNING
Material damage and hazard to road traffic
The pressure of the head wind can cause the material to tear
or come off and endanger traffic coming from behind.
• You must remove the tarpaulin during transport on an open
truck.
