Clean
filter element
Clean water separator element (1) according to the maintenance plan.
1 Close stop cock (4).
1.1 Move to OFF.
2 Unscrew the filter housing (2).
3 Clean filter element (1).
4 Screw the filter housing (2) on.
5 Open stop cock (4).
5.1 Move to ON.
9.9 Engine oil
9.9.1 Checking the engine oil level
Oil dipstick
1 Check engine oil level daily using the dipstick. The dipstick (1) is located on
the left of the engine.
1.1 Check oil level while the roller is standing on a level surface and the
engine is cold.
1.2 You can see the engine oil level on the dipstick.
The oil level must be between the top (x) and bottom (y) marks.
2* Top up engine oil as required.

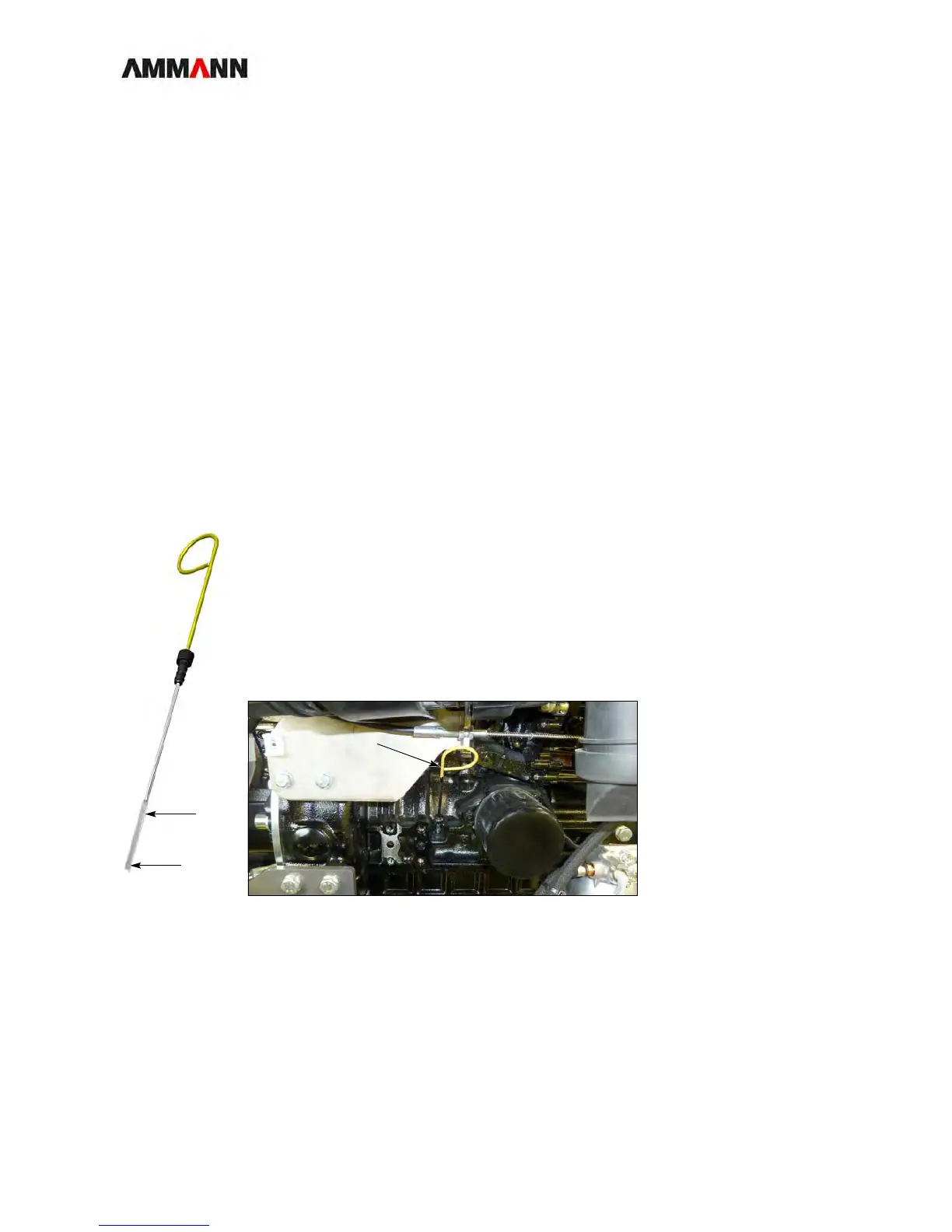

Fig. 9-10 Location of dipstick
9.9.2 Topping up the engine oil
1 Top up the engine oil at one of the two oil filler necks.
1a Filler neck on the left-hand side of the engine.
1b Filler neck on the engine.
x
y
