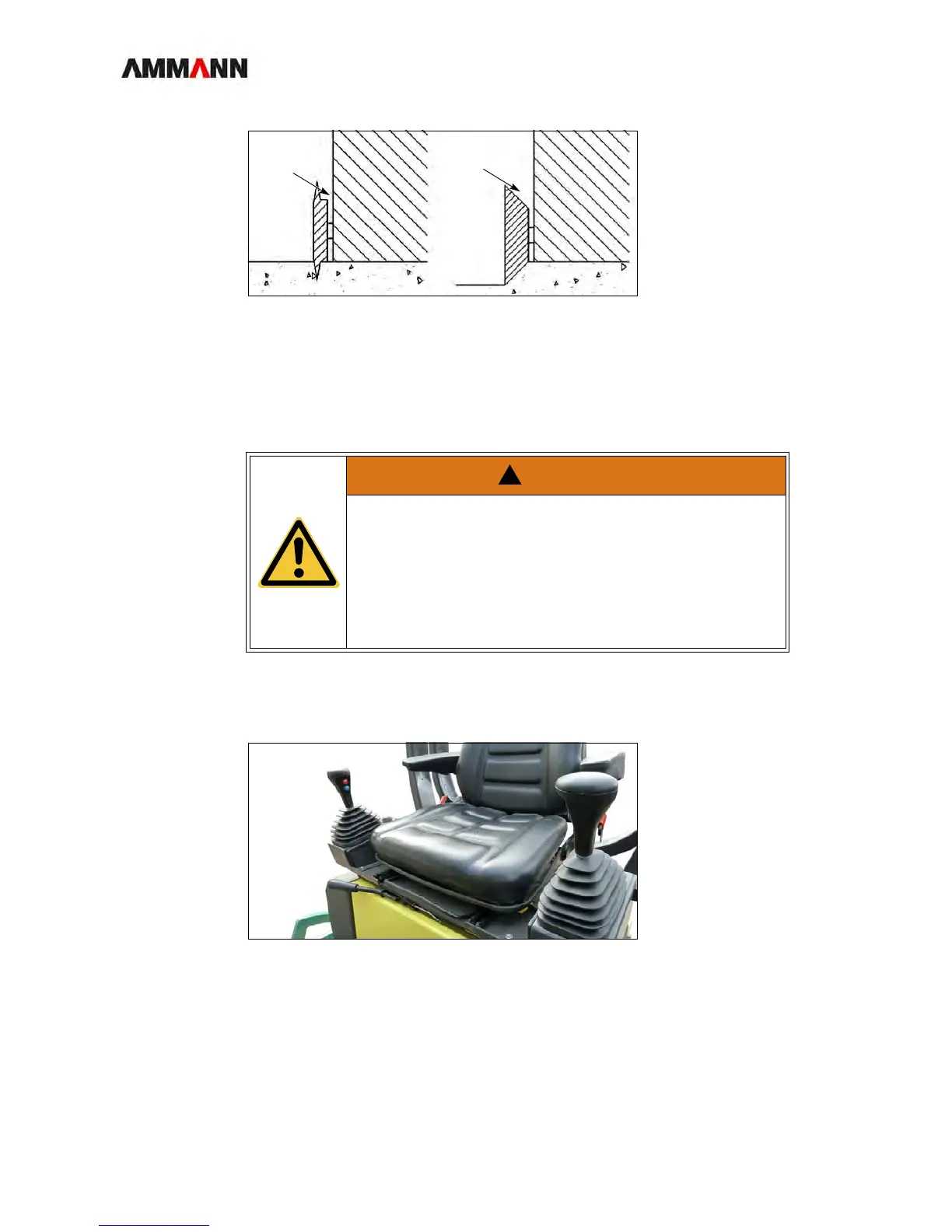

Fig. 8-2 Cutting disk and pressure disk in use
Storage
If one of the two disks is not being used, fix it to the mounting provided on the right
side of the roller.
8.2 2 operating levers
Fig. 8-3 2 operating levers
It is only possible to drive with one operating lever. The unused operating lever must
be in the neutral position.
The operating buttons are always active.
Driving with the
left operating le-
ver
1 Move the right operating lever to the neutral position.
2 Driving with the left operating lever
WARNING
Risk of injury!
The disk can loosen and injure nearby persons!
• Check the fastening screws when replacing the disks. Tighten
the screws well on both the edge cutter and the mounting.See
table
, Tightening torques.
