10.1 Battery
NOTE Risk of cable fire or short circuit.
Keep to the proper sequence when removing or installing the terminal connec-
tions.
The battery charge level can be read in the multifunction display unit.
● Ignition on = battery voltage. The battery voltage should not fall below 10 volts
while starting, otherwise the battery must be charged.
● Machine running = alternator charging voltage. The voltage should lie in a range
of from 13 to 14.5 volts.
10.1.1 Replacing the battery
1 Loosen the (-) terminal and disconnect it (size13).
2 Loosen the (+) terminal and disconnect it (size10).
3 Loosen and remove the mounting bracket.

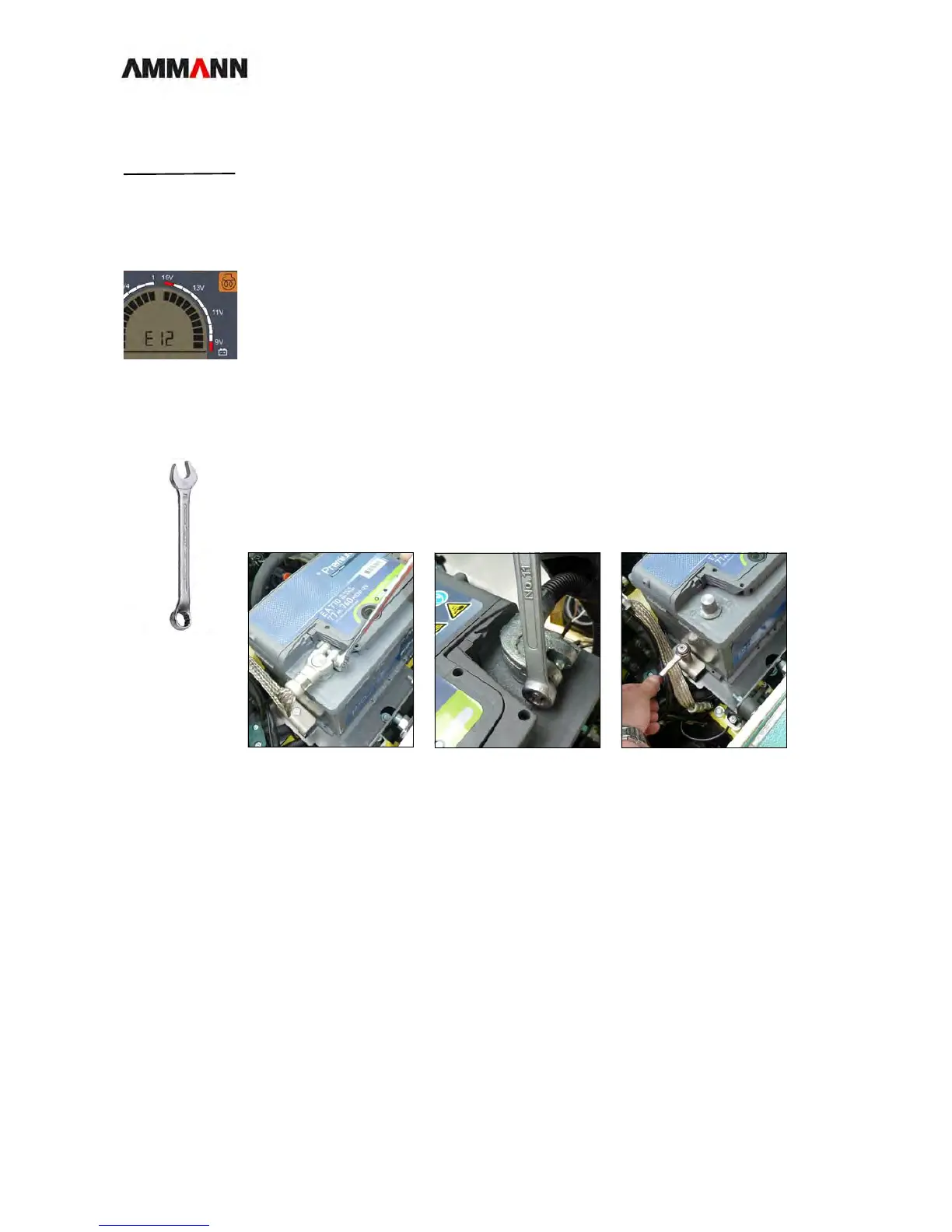

Fig. 10-1 Loosening the terminals
4 Lift the battery out of the engine compartment.
5 Set the new battery in place.
6 Connect the battery.
6.1 Begin with the (+) terminal.
