Maintenance 89
1208531 | 03.07.2012

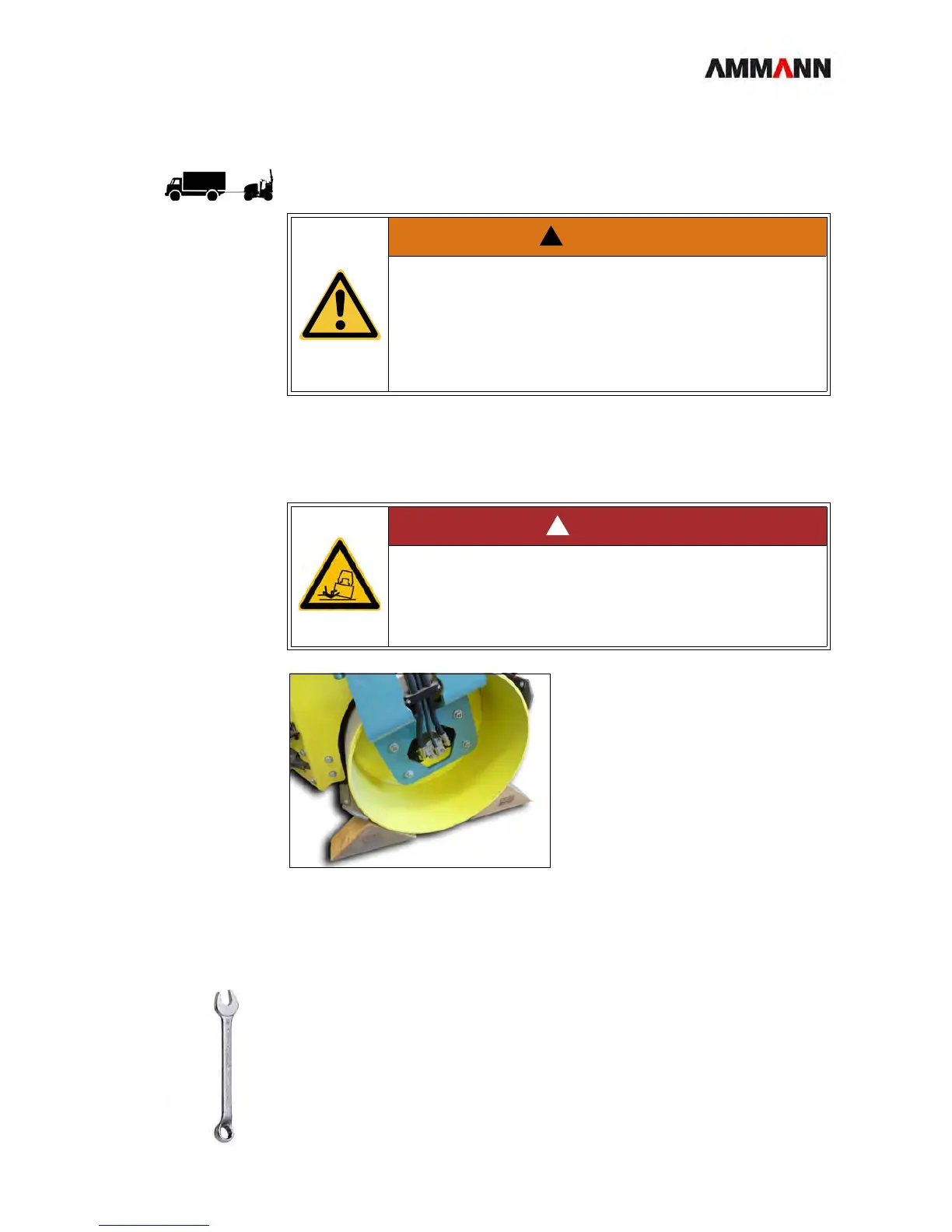

9.5 Towing
Only tow the roller in an emergency in order to move the machine away from the dan-
ger zone.
Before you can tow the roller you must release the integrated parking brake.
9.5.1 Releasing brakes
Fig. 9-1 Use chocks to prevent the roller from rolling away
Articulated joint
lock
1 Secure the roller with the joint protection.
1.1 See Joint protection, Page 130.
Releasing brakes 1 Use a wrench (size19) to undo the brake pads.
The brake release chocks are in the front chassis, to the left under the light, and are
secured with two M12x35 bolts.
2 Remove the brake release chocks (1).
WARNING
Risk of accident through improper towing!
Adhere to the following rules:
• Maximum towing speed: 1km/h
• Maximum towing distance: 10m
• Then transport the roller by truck or trailer.
DANGER
Danger to life through runaway roller. Persons standing in the
vicinity can be rolled over!
• Before releasing the brakes, be absolutely certain to secure the
roller against unintentional rolling away.
