56 ARX 4
1208531 | 03.07.2012
7.1 Rollover bar (ROPS)
7.1.1 Folding the ROPS upward
1 Remove the split pin.
2 Remove the bolt.
2.1 Place the parts on the rear water tank or on the seat. They should be
easy to reach when you come to refit them.
3 Lift the ROPS until it remains upright alone.
4 Pull the ROPS all the way up.
4.1 To do so, stand on the driver’s position.
5 Fit the two bolts.
5.1 You may need to use a pipe extension to help in tightening the bolts.
5.2 Lubricate the bolts (e.g. Never Seez mounting grease).
6 Place the split pins into the bolts.

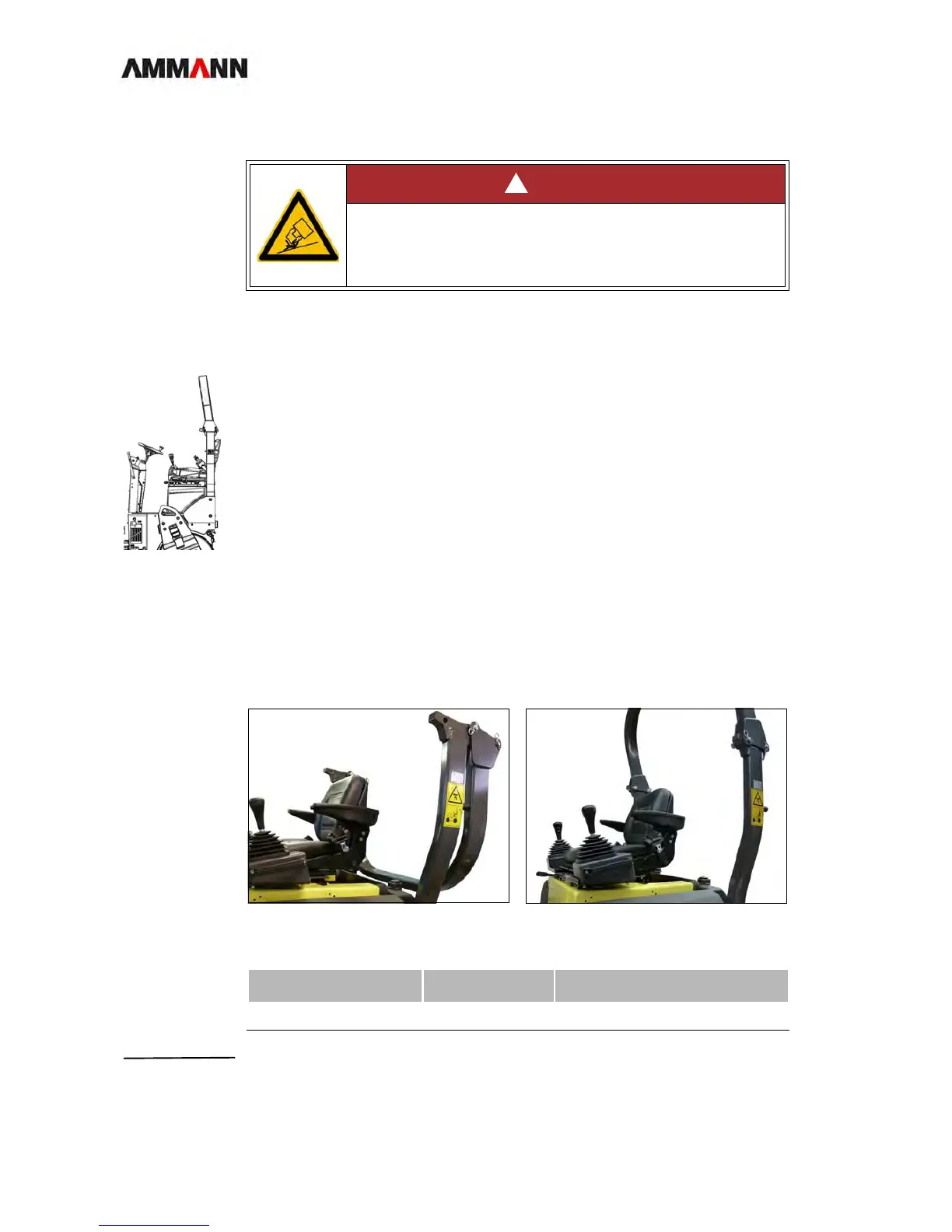

Fig. 7-1 ROPS down / ROPS up
Tab. 7-1 Torque: Threaded bolt for ROPS joint
NOTE Both sides must be secured with bolts and split pins during operation.
DANGER
Danger to life through overturning of the roller!
• During operation, fold the ROPS upward.
• Fold the ROPS down only for transport.
