3.5.2 Notice stickers

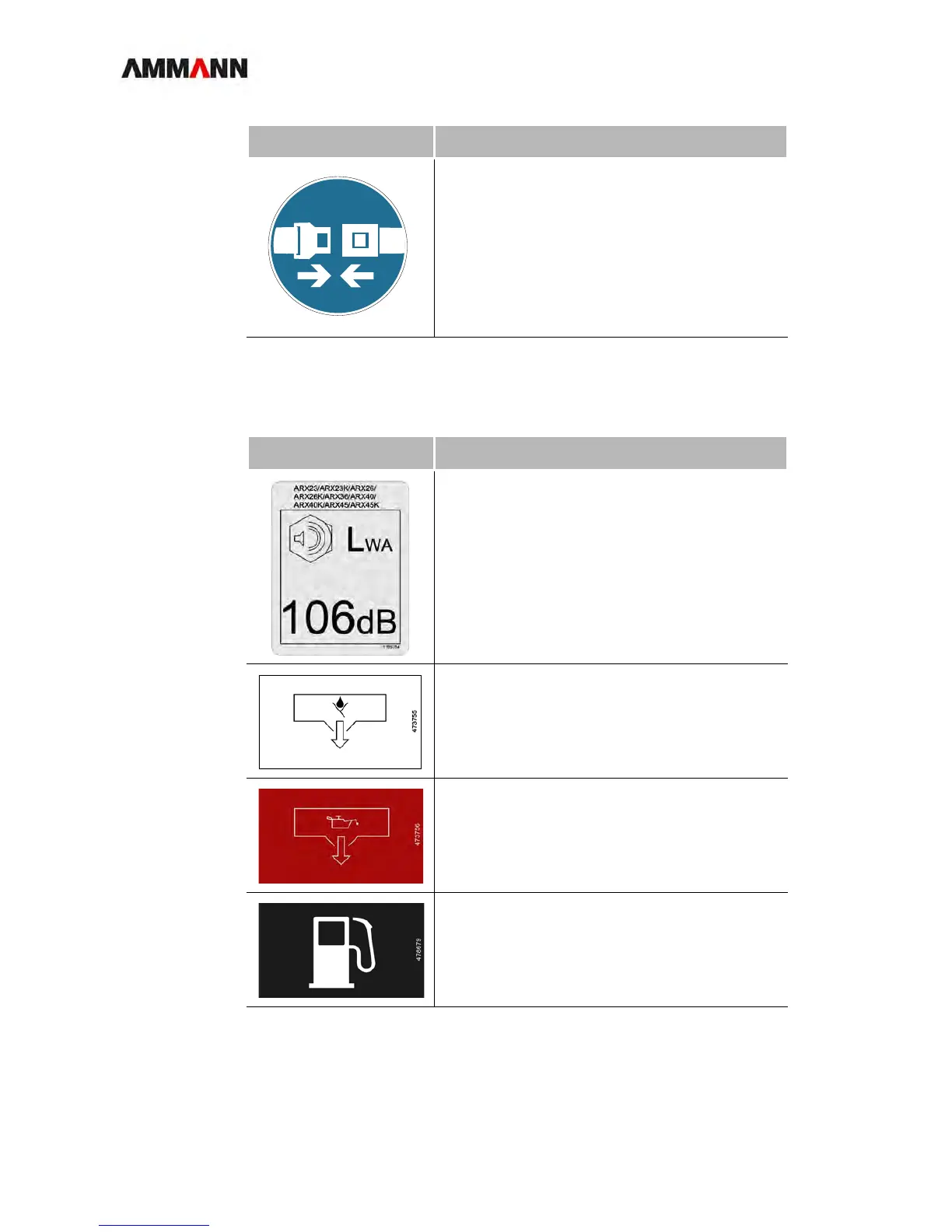

Tab. 3-3 Notice stickers on board
Relationship to roller:
Driver’s position.
Requirement:
Wear a safety belt!
Explanation:
Always wear the safety belt when in the driver's seat.
Warning stickers Meaning
Notice stickers Meaning
Relationship to roller:On rear chassis, front right.
Designation: Guaranteed sound power level.
Explanation:Indicates the overall noise level produced by
the roller.
Relationship to roller:Front chassis, left.
Designation: Hydraulic oil drain.
Explanation:Drain hole for the hydraulic oil
Relationship to roller:Front chassis under the cooler.
Designation: Motor oil drain.
Explanation:Drain hole for the motor oil
Relationship to roller:Front chassis, right side, over the
filler neck.
Designation: Fuel.
Explanation:Filler neck for diesel fuel.
