9.9.4 Replacing engine oil filter

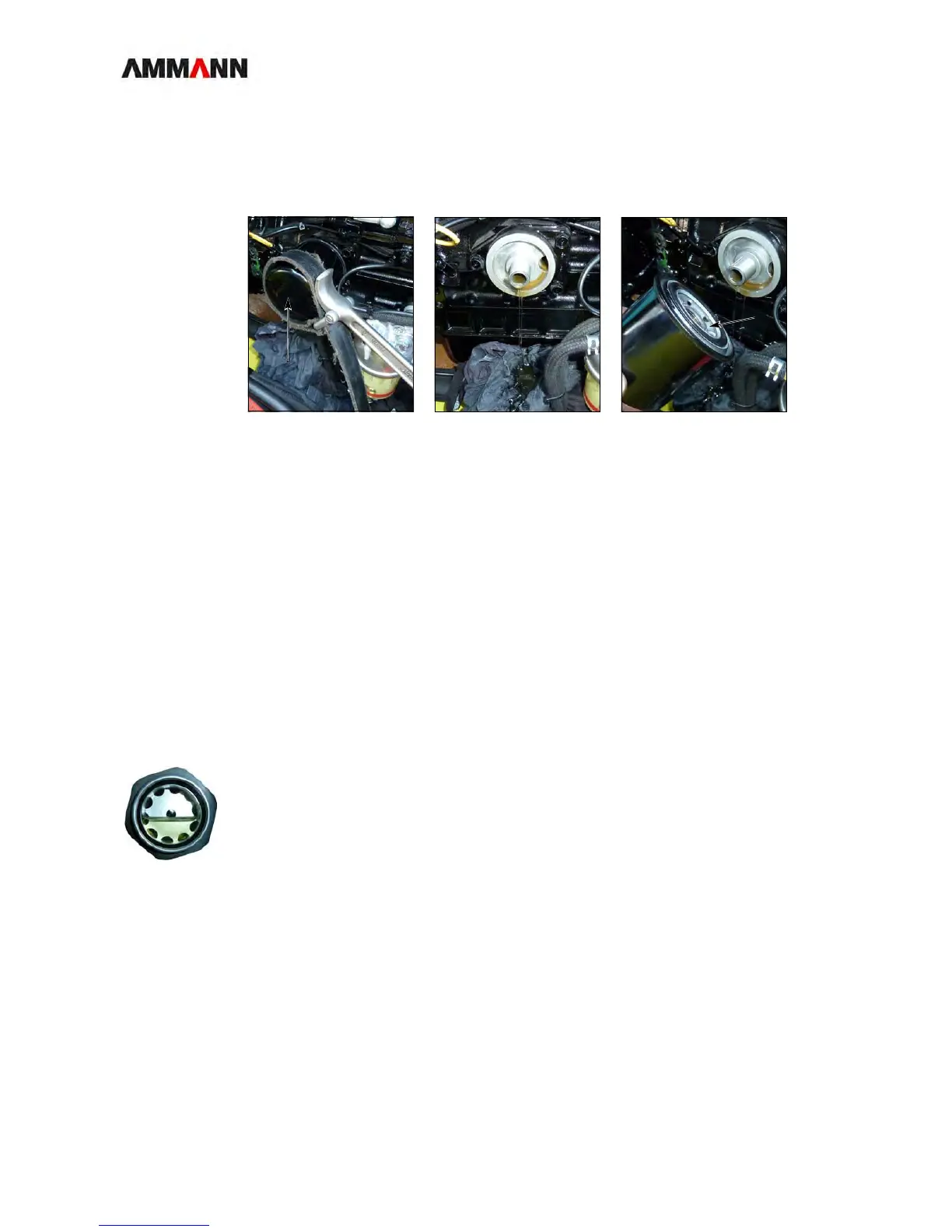

Fig. 9-13 Engine oil filter
1 Loosen the filter (1) by hand or using a filter wrench.
1.1 The oil starts to flow out immediately. It’s best to place a rag under it
beforehand.
2 Replace oil filter (2).
3 Screw the complete filter back in place.
9.10 Hydraulic oil
9.10.1 Checking the hydraulic oil level
Inspection window
Always check the hydraulic oil level at operating temperature with the engine run-
ning.
1 Place the roller on level ground.
2 Let the roller continue to idle.
3 Check the oil level in the inspection window.
4* If oil level is in the lower third of the inspection window, top up through the filler
neck with 1 liter of hydraulic oil.
9.10.2 Topping up hydraulic oil
1 Remove the screw lid on the filler neck (1).
2 Top up with 1 liter of hydraulic oil (2).
3 Reinstall the screw lid (3).
3.1 Important: Always grease the O-ring before screwing it in place.
