NOTE If the driver sits down again within the delay period, the roller continues to
drive normally.
7.10 Emergency stop
If you get into an emergency situation requiring an immediate standstill of the roller,
then press the emergency stop on the instrument panel.

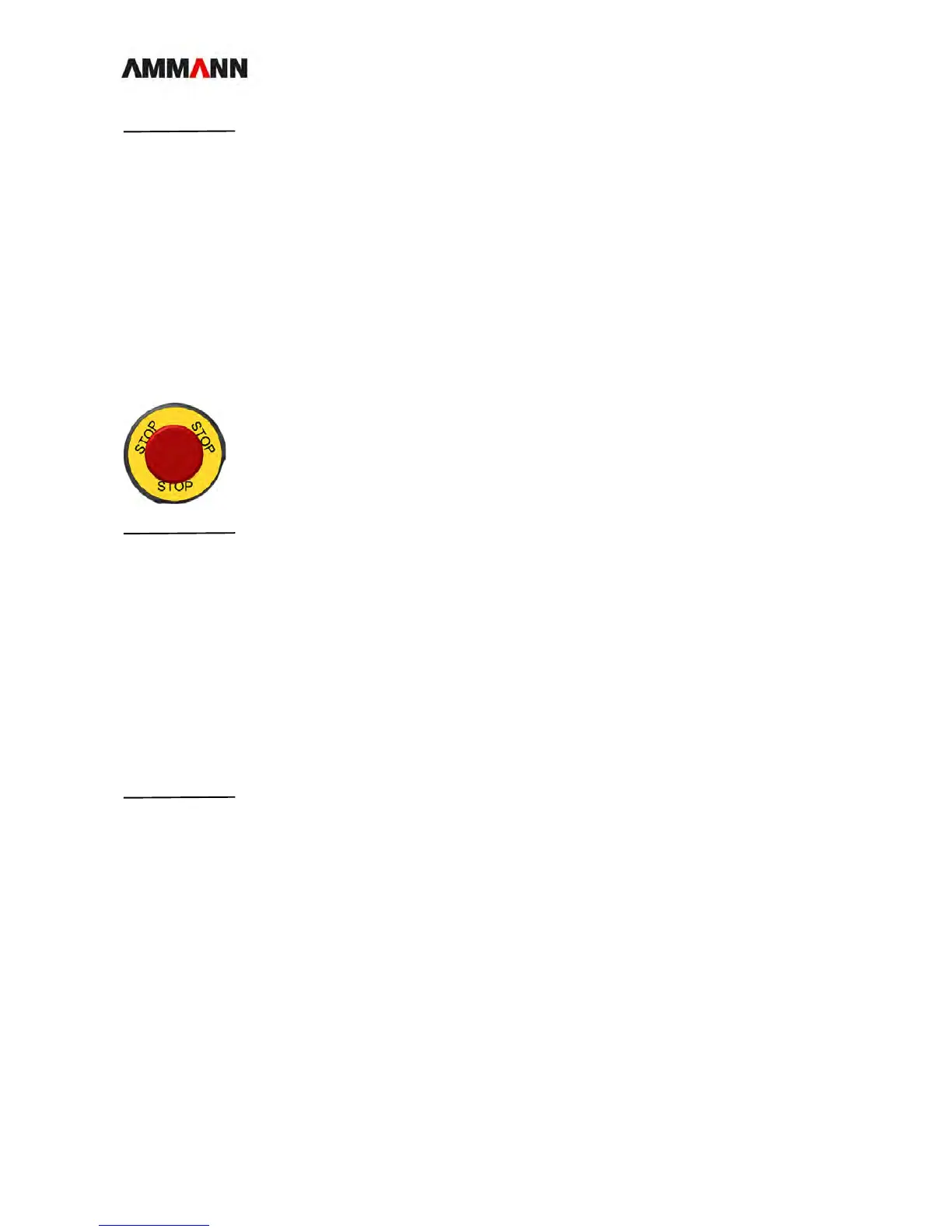

7.10.1 Initiating an emergency stop
Emergency stop
1 Press the emergency-stop button.
The roller comes to a standstill immediately. The engine shuts down immediately and
automatically. The brakes are activated.
NOTE Only press the emergency stop in an emergency.
7.10.2 Releasing the emergency stop
1 Put the operating lever into the neutral position.
2 Move the speed adjusting lever all the way back.
3 Now turn the emergency stop button slightly in the direction of the arrow until
its clicks out.
The roller is now ready for operation.
NOTE Release the emergency stop button by pulling upwards in the "pull-push" ver-
sion. The direction arrows are missing from this button.
7.11 Locking brake
The vibration roller is equipped with an automatic locking brake.
The brakes for the drive motors work:
● When the supply pressure falls below 12 bar.
● When you activate the emergency-stop button.
○ When you press the Emergency Stop button a valve reduces supply pressure
and the brakes take immediate effect.
● When you activate the parking brake.
○ When you activate the parking brake, a valve reduces the supply pressure and
the brakes take immediate effect.
