Ammann ARX 45 - Engine Compartment Overview

92 ARX 4
1208531 | 03.07.2012
9.7 Engine compartment overview

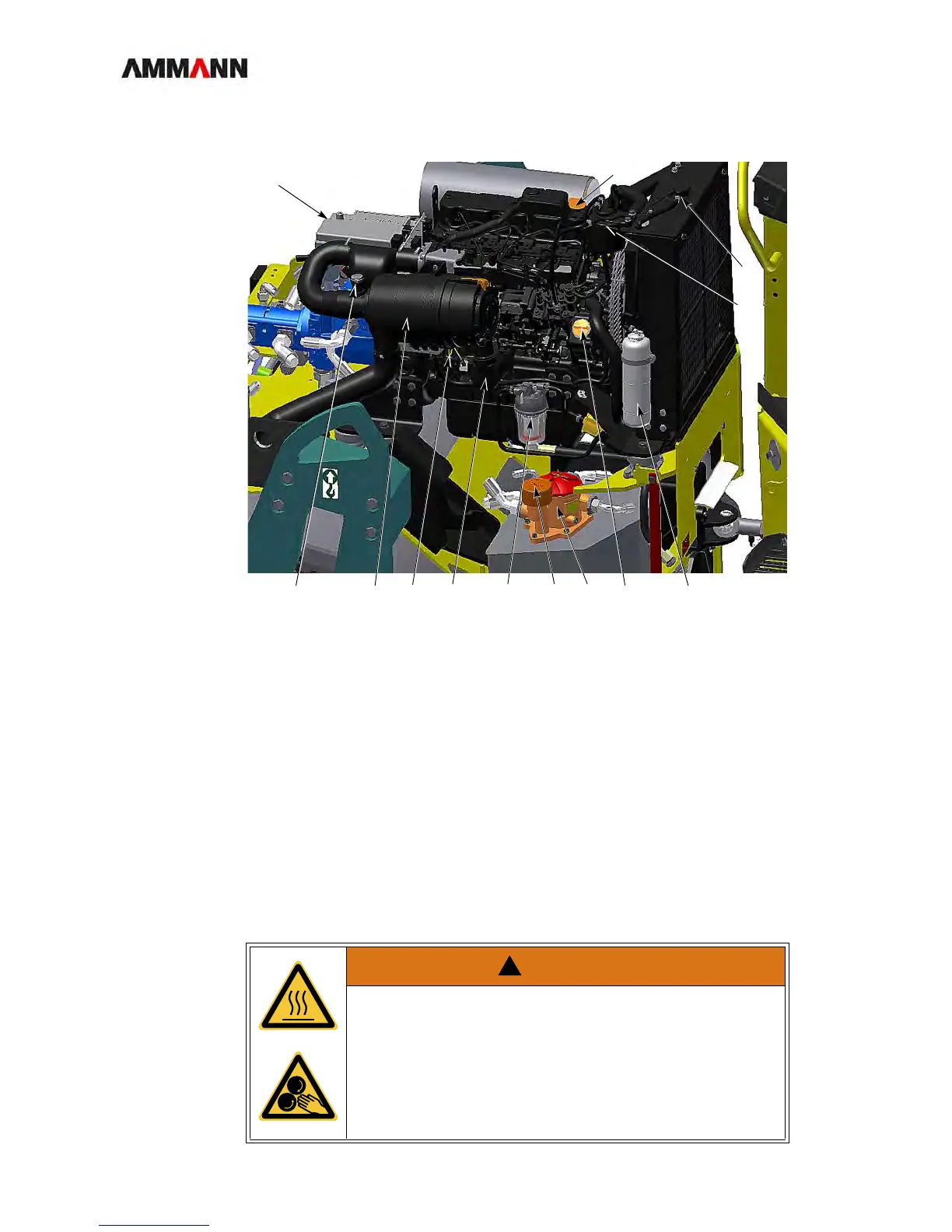

Fig. 9-5 ARX 4 engine compartment
1Battery
2 Engine oil filler neck
3 Air-intake filter
4 Soiling indicator for air-intake filter
5 Oil dipstick
6 Coolant level display
7 Hydraulic oil filler neck
8 Hydraulic oil filter
9 Engine oil filter
10 Fuel filter
11 Coolant filler neck
12 Water separator
WARNING
Risk of burning and injury when handling parts in the engine
compartment!
• Switch the diesel engine off when performing any inspection
work. The locking brake is active when the diesel engine is
switched off.
2
2
4
9
6
8
5
12
3
11
10
7
1
!
