Ammann ARX 45 - Tire Pressure; Air-Intake Filter

Maintenance 105
1208531 | 03.07.2012

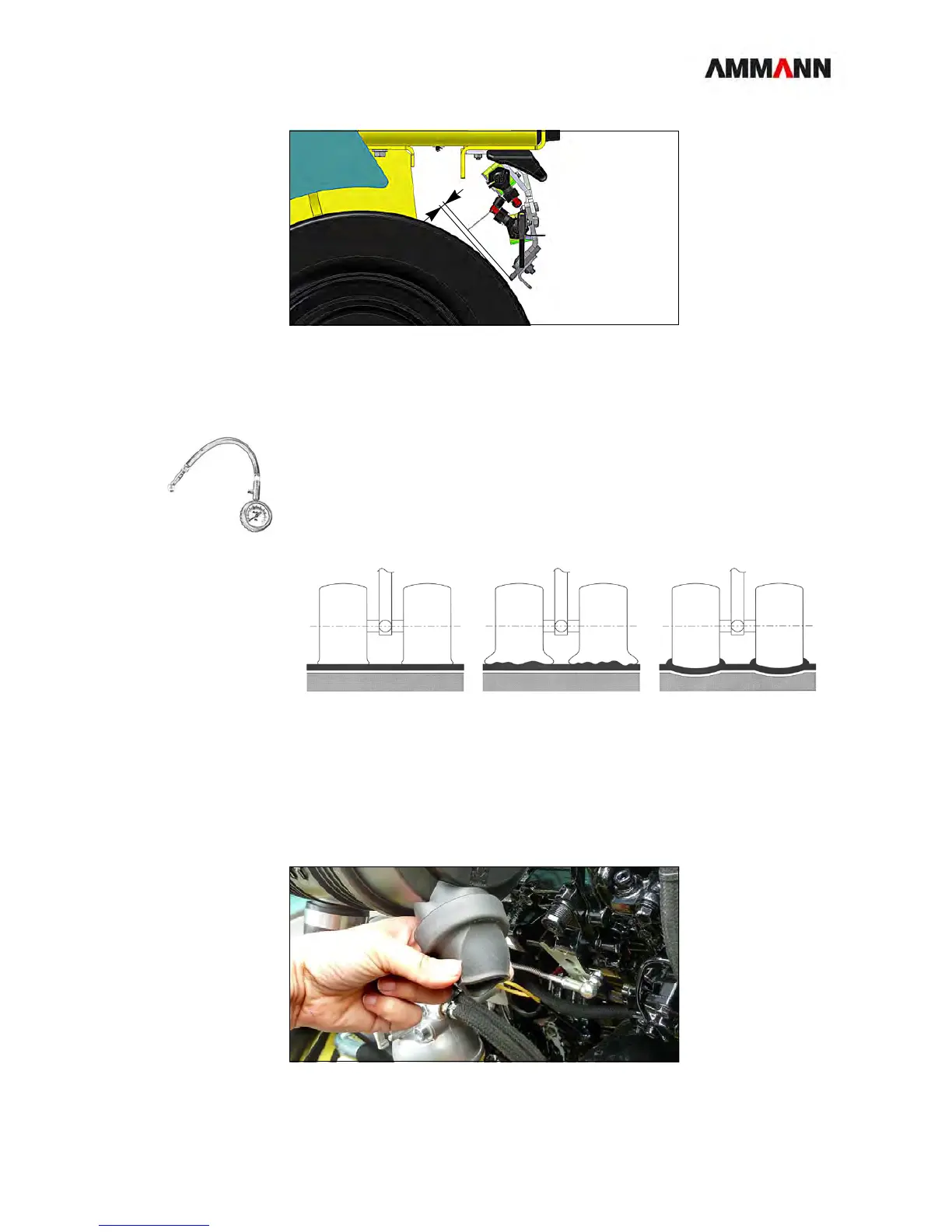

Fig. 9-26 Clearance of scraper to pneumatic wheels
9.13.3 Tire pressure
1 Check the tire pressure on the pneumatic wheel axle.
2a = 2-2.5bar: OK.
2b < 2-2.5bar: Increase pressure by pumping in some air.
2c > 2-2.5bar: Reduce pressure by letting air out.
9.13.4 Air-intake filter
Dirt outlet 1 Press the dirt outlet of the air-intake filter at least once a week to clean it of
dirt.
Fig. 9-27 Dirt outlet
3
-
5
m
m
2a
2b
2c
