108 ARX 4
1208531 | 03.07.2012

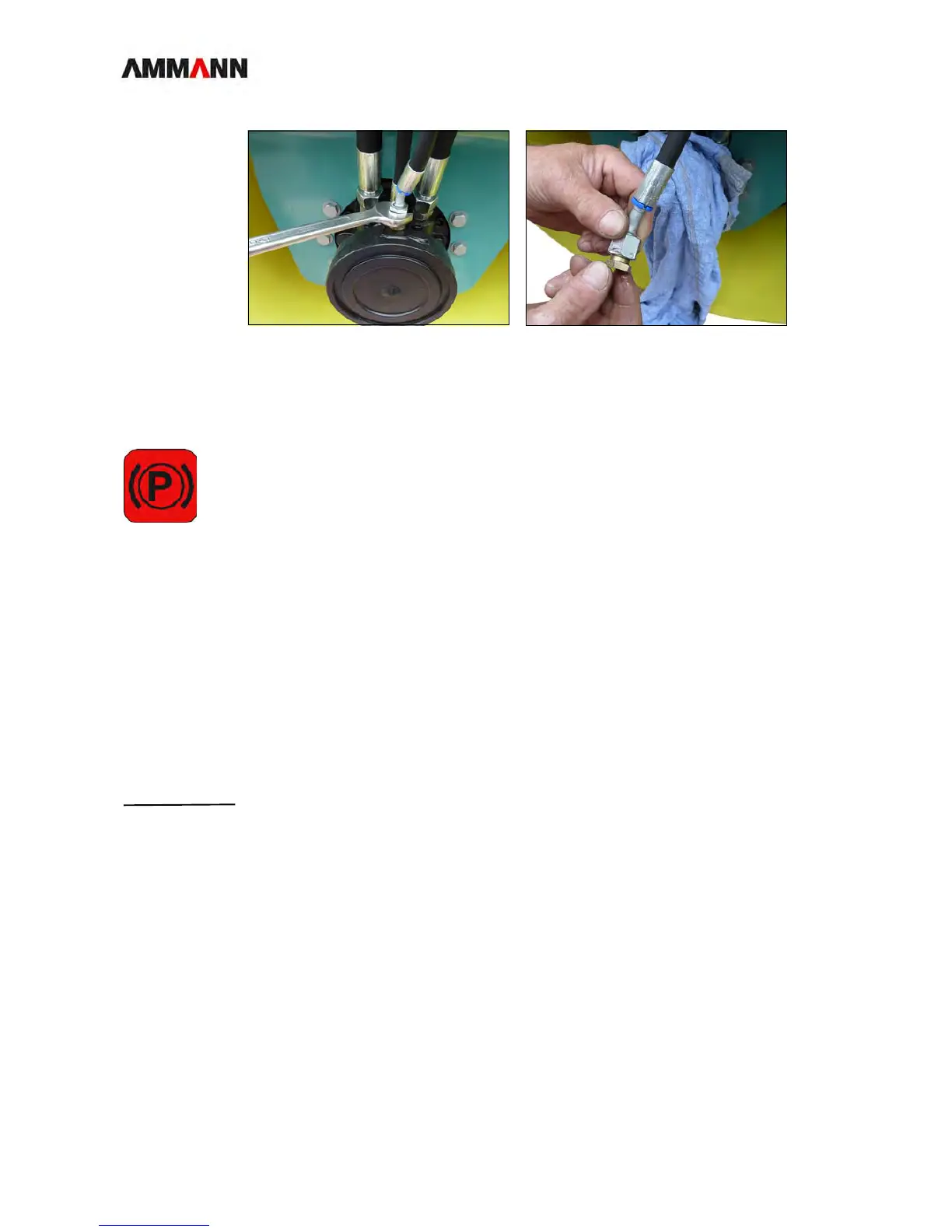

Fig. 9-31 Remove the brake hose and seal it so that it can be pressurized.
3 Start the roller.
4 Press the parking brake switch.
Brake light (P)
4.1 The brake light (P) must extinguish quickly.
5 Test the forwards and the backwards drive.
Because the front brake remains activated, the roller does not move.
6 Switch the roller off.
7 Reinstall the brake hose.
8 Follow the same procedure for the rear drive motor.
9 Be certain that you have reconnected all brake hoses!
10 Start the roller.
10.1 The brake light (P) must extinguish quickly.
11 Test the forwards and the backwards drive.
There should be no problems.
NOTE Damage to property through incorrect handling!
If the roller does not behave exactly as described, you have a problem with one
or more brakes. The roller is no longer safe for operation.
• Have the roller repaired professionally.
Pneumatic wheel
axle
If you own a roller with a pneumatic wheel axle, it is better to remove the center
wheels. Please examine both motors simultaneously.
9.13.7 Pendulum support / articulated joint
If unpleasant grinding noises are heard coming from the pendulum support or the
articulated joint during operation, you must contact your dealer.
