Ammann ARX 45 - Control Lamps

Operating and display elements 43
1208531 | 03.07.2012

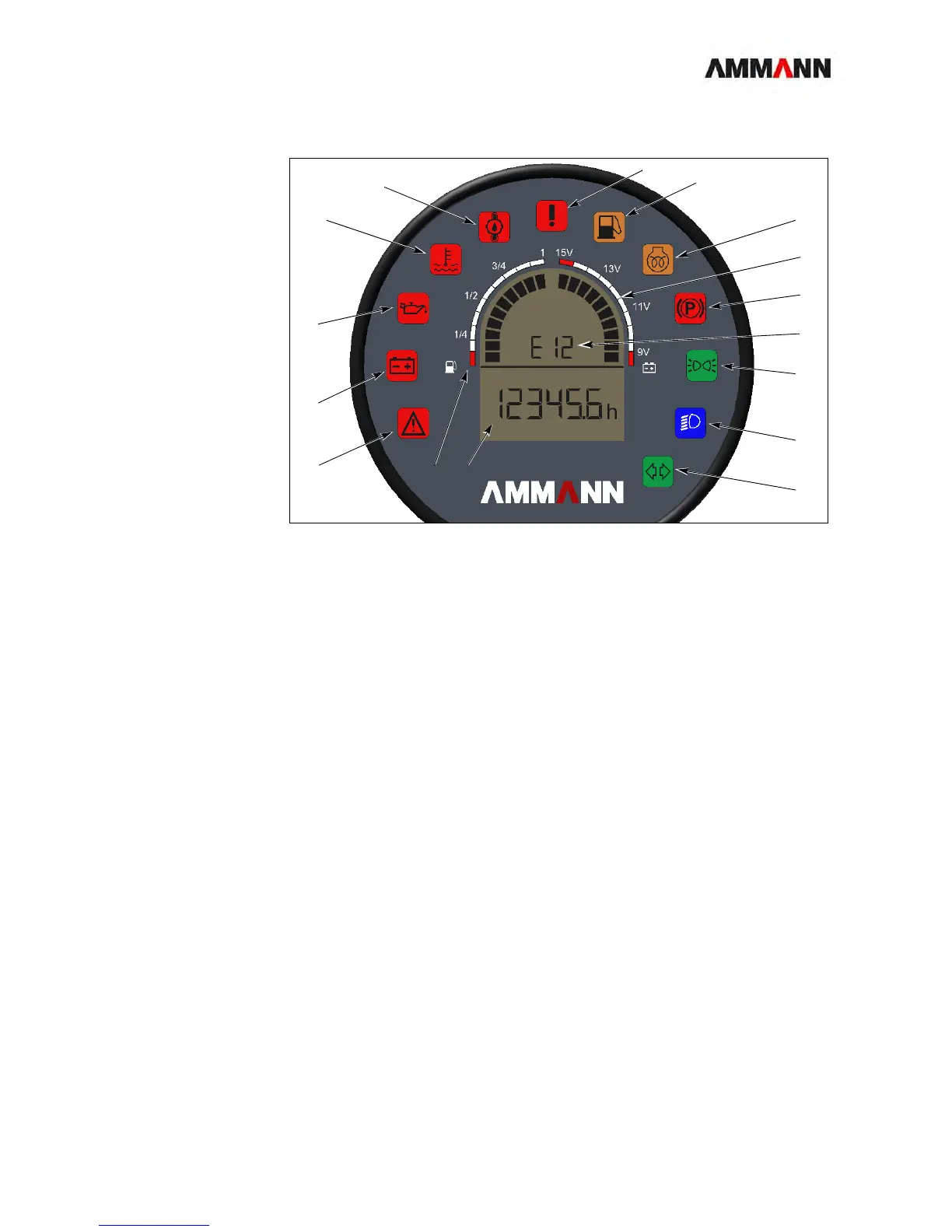

5.1.2 Control lamps
The warning lamps for engine oil pressure, charge indicator and brake release/sup-
ply pressure must light up when the ignition is switched on. They must go off as soon
as the engine is started.
1 Control lamp error
2 Control lamp for battery charge level (charge control)
3 Engine oil pressure control lamp
4 Control lamp for engine coolant temperature
5 Control lamp for hydraulic oil temperature
6 Control lamp for emergency stop
7 Control lamp for diesel reserve
8 Control lamp for pre-heating
9 Brake pressure control lamp
10 Control lamp for parking light
11 Control lamp, dipped lights
12 Indicator control lamp
13 Fuel tank display
14 Operating hours counter
15 Battery voltage
16 Fault codes
1
2
3
4
5
12
11
10
9
8
7
6
13 14
15
16
